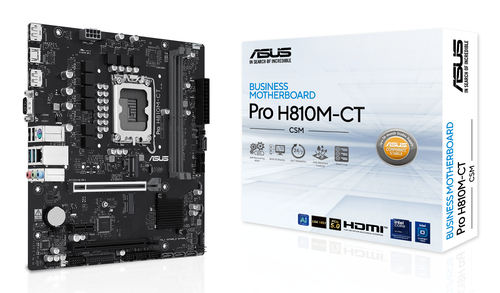

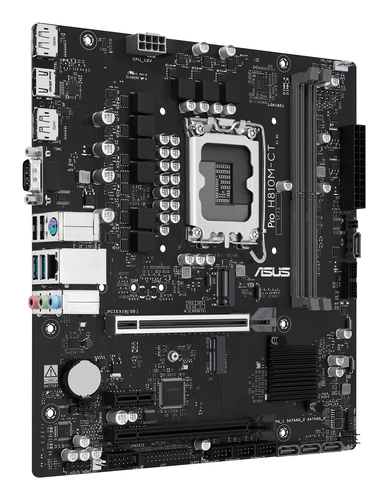

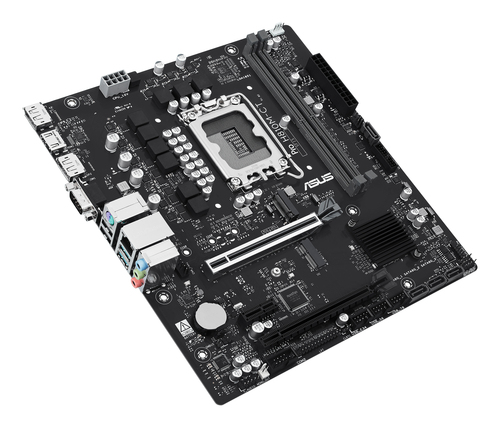

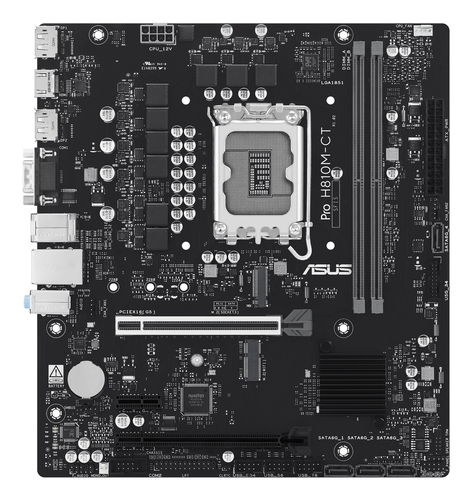

Micro-ATX H810 business motherboard with enhanced security, reliability, manageability and serviceability
Pro
ASUS Pro business motherboards provide enhanced features to smooth your IT operations, including comprehensive system protection, 24/7 stability and reliability and an improved management suite for easier customization. Known as the world's biggest and best-known motherboard brand, ASUS provides world-class after-sales service and guaranteed long-term availability to maximize your investment over the product life cycle and offers a high-quality, TCO-optimized solution for your business computing-needs.
Specifications
Processor
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
7200 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
5
Graphics
Parallel processing technology support
Not supported
Internal I/O
USB 2.0 connectors
3
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
2
Chassis intrusion connector
Yes
EPS power connector (8-pin)
Yes
Number of COM connectors
1
12V power connector
Yes

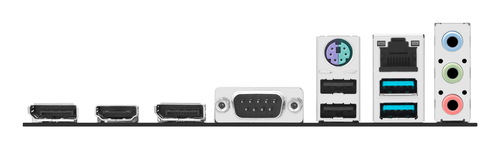

Rear panel I/O ports
USB 2.0 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
HDMI ports quantity
1
DisplayPorts quantity
2
Headphone outputs
1
Microphone in
Yes
COM ports quantity
1
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi
No
Features
Motherboard chipset
Intel H810
Audio output channels
7.1 channels
Product colour
Multicolour
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 11, Windows 10 x64
Expansion slots
PCI Express x1 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
1
1st M.2 largest key size
2242
2nd M.2 largest key size
2260
3rd M.2 largest key size
2280
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Weight & dimensions
Width
244 mm
Depth
222 mm
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
