ASUS ExpertCenter Pro ET700I W7 Desktop Black Intel W790 LGA 4677 (Socket E)
Part number PRO ET700I W7-B-1300
EXPERTCENTER PRO ET700I W7B1300 PERFORMANCE AI WS INTEL XEON W-3400
Intel Xeon W-3400 / W-2400 processor, Intel W790 chipset and DDR5 ECC memory for professional performance and stability
Ready for 2D/3D rendering with support for up to two NVIDIA Quadro RTX
Dual onboard 2.5Gb Ethernet ports for fast, high-bandwidth, low-latency throughput
Dual M.2 for up to 32 Gbps for better performance and data redundancy
EPEAT Bronze-certified workstation for greener environment
Ultra-fast connectivity with USB 20 Gbps Type-C, USB 10Gbps Type A and C and USB 5 Gpbs ports
ASUS Control Center Express: Real-time IT monitoring and management software for enhanced data protection
Independent software vendor (ISV) certification for validated reliability and compatibility with key applications
Manufacturer
ASUS
Part number
PRO ET700I W7-B-1300
Condition
New
Category
Computer Systems › Workstations
1GPA category
Hardware
Overview

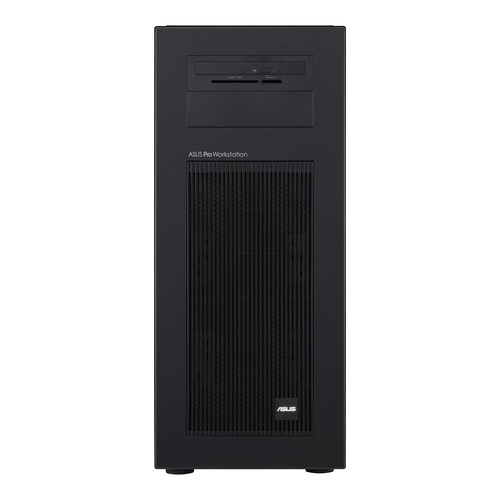

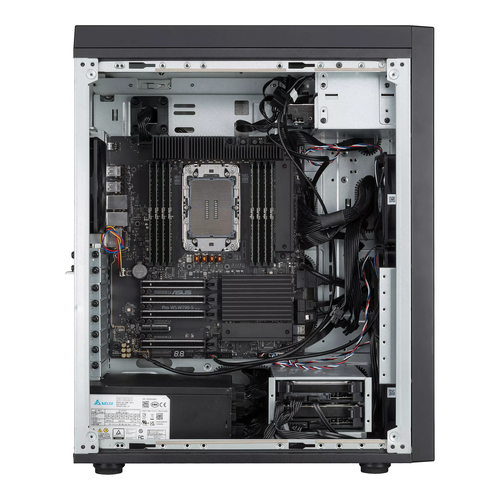

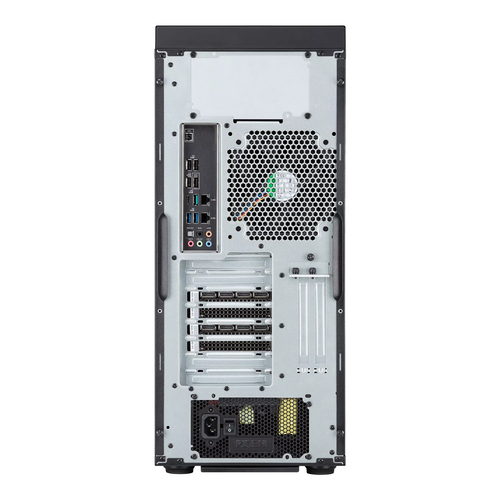

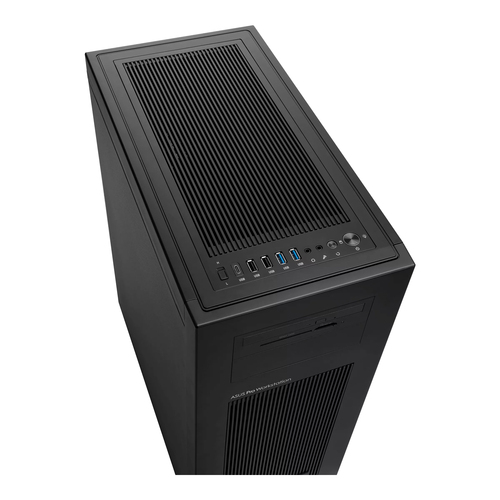

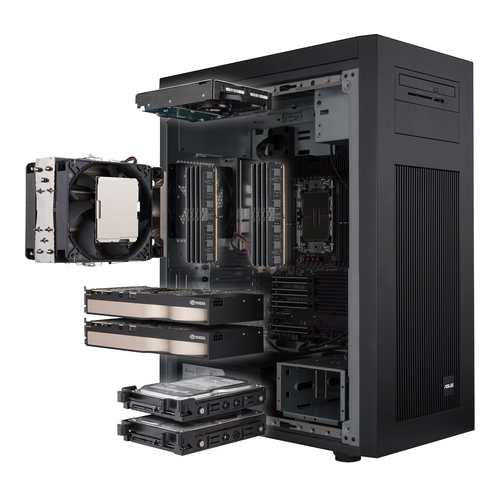

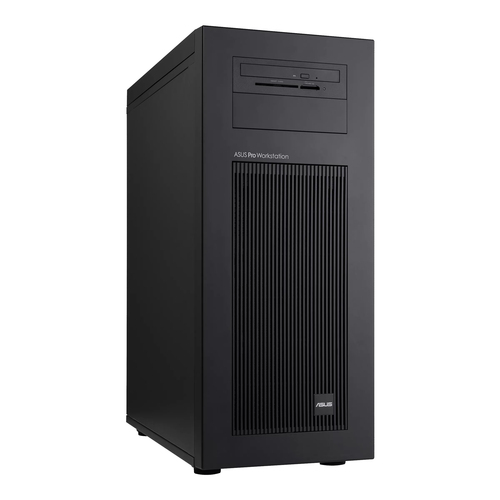

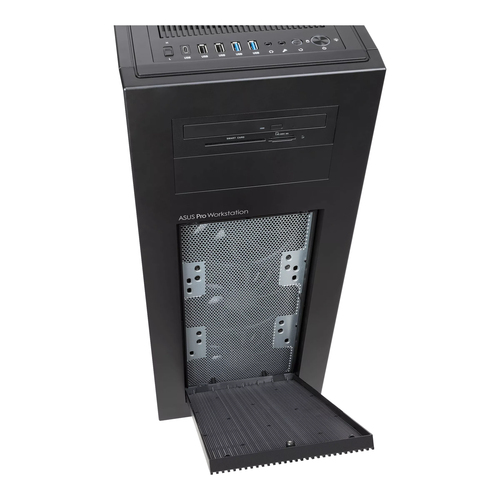

ASUS ExpertCenter Pro ET700I W7 is a high-end workstation that delivers professional performance and flexible expandability ideal for a range of applications from design to virtualization. Equipped with powerful Intel Xeon W-3400 and W-2400 processors and ECC memory, plus support for an NVIDIA Quadro graphics card and independent software vendor (ISV) certification, ExpertCenter Pro ET700I W7 delivers the performance, reliability and guaranteed compatibility you can trust for your professional workflows.
Specifications
Processor
Built-in processor
No
Memory
Memory slots type
DIMM
Number of memory slots
8
Maximum internal memory
1 TB
Supported memory clock speeds
4400,4800 MHz
Supported memory types
DDR5-SDRAM
Memory channels
Quad-channel
ECC
Yes
Storage
Supported storage drive types
HDD & SSD
Storage drive sizes supported
2.5,3.5,M.2
SSD form factor
M.2
Storage drive interface
PCI Express, SAS, Serial ATA III
NVMe
Yes
Number of storage drives supported
8
RAID levels
0, 1, 5, 10
Graphics
On-board graphics card
No
Performance
Motherboard chipset
Intel W790
Processor socket
LGA 4677 (Socket E)
Number of processors supported
1
Compatible processor series
Intel® Xeon®
Audio
Built-in speaker(s)
No
Network
Ethernet LAN
Yes
Wi-Fi
No
LAN controller
Intel I226-LM
Ports & interfaces
USB 2.0 ports quantity
6
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB4 Gen 2x2 ports quantity
1
Microphone in
Yes
Headphone outputs
1
Ethernet LAN (RJ-45) ports
2
Number of SATA III connectors
4
Expansion slots
PCI Express x4 slots
1
PCI Express x16 slots
4
Number of M.2 (M) slots
2
Design
Chassis type
Desktop
Product colour
Black
Cooling type
Active
On/off switch
Yes
LED indicators
HDD, Power
Product type
Workstation barebone
Technical details
Compliance certificates
BSMI, CE, Federal Communications Commission (FCC)
Sustainability
Sustainability certificates
ENERGY STAR
Power
Power supply type
Internal power supply unit
Power supply
1300 W
Number of power supply units
1
Operational conditions
Operating temperature (T-T)
10 - 35 °C
Storage temperature (T-T)
-40 - 70 °C
Storage relative humidity (H-H)
20 - 90%
Weight & dimensions
Width
230 mm
Depth
535 mm
Height
448 mm
Weight
14.3 kg
Package weight
21.4 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
