ASUS Prime -RX9070XT-O16G-WHITE AMD Radeon RX 9070 XT 16 GB GDDR6
Part number PRIME-RX9070XT-O16G-WHITE

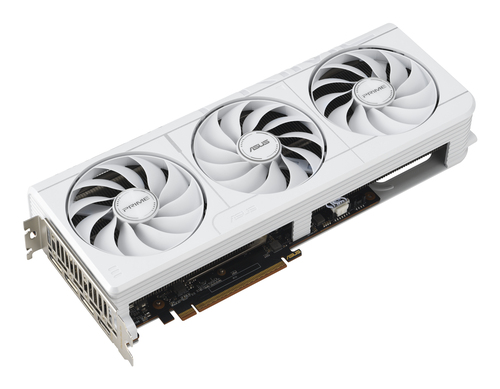

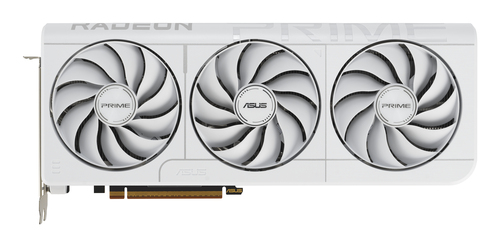

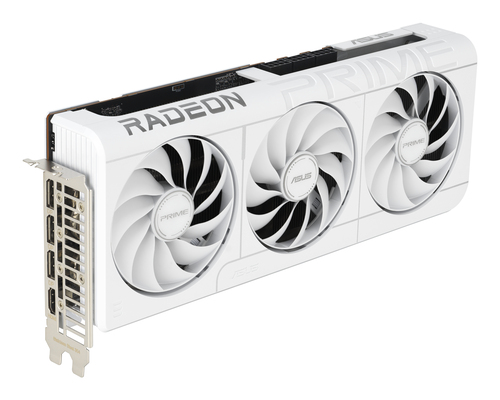

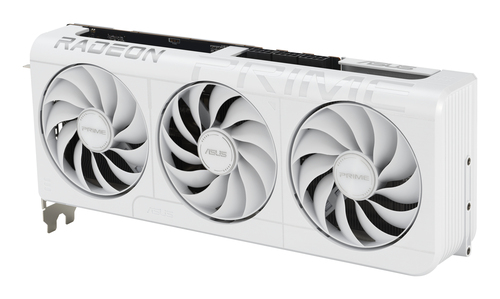

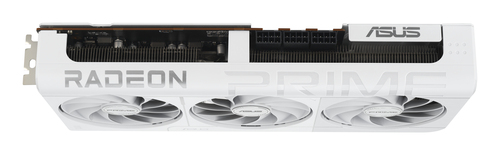

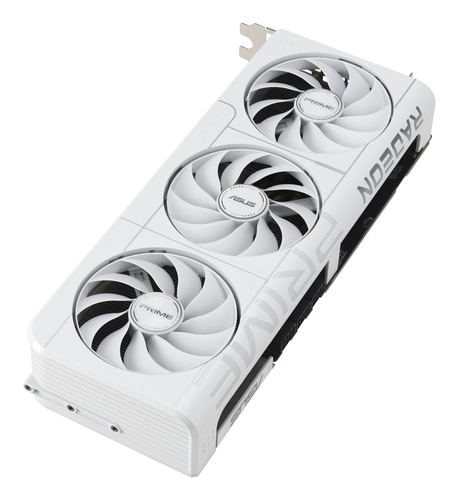

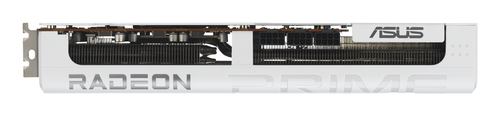

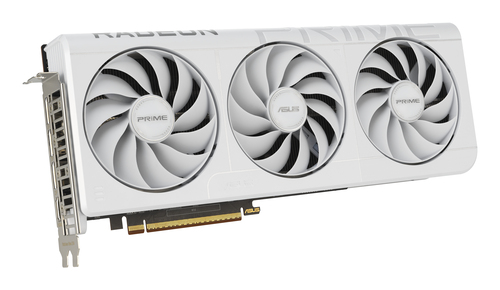

ASUS PRIME RADEON RX 9070 XT WHITE OC EDITION GRAPHICS CARD
- AMD Radeon RX 9070 XT 16 GB GDDR6
- 7680 x 4320 pixels 256 bit 20 Gbit/s PCI Express 5.0
- HDMI ports quantity: 1 DisplayPorts quantity: 3
- OpenGL version: 4.6
- 3x 8-pin
- Manufacturer
- ASUS
- Part number
- PRIME-RX9070XT-O16G-WHITE
- Condition
- New
- Category
- System Components › Video & Capture Card
- 1GPA category
- Hardware
Overview
ASUS Prime Radeon™ RX 9070 XT White OC Edition 16GB GDDR6 boasts three axial-tech fans and a phase-change GPU thermal pad for supreme cooling.
Specifications
| CUDA | No |
|---|---|
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9070 XT |
| Processor frequency | 2460 MHz |
| Processor boost clock speed | 3010 MHz |
| Processor frequency (OC mode) | 2480 MHz |
| Processor boost clock speed (OC mode) | 3030 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Stream processors | 4096 |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
|---|---|
| Graphics card memory type | GDDR6 |
| Memory bus | 256 bit |
| Data transfer rate | 20 Gbit/s |
| Interface type | PCI Express 5.0 |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1a |
| OpenGL version | 4.6 |
|---|---|
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| Overclocked (OC) edition | Yes |
| Cooling type | Active |
|---|---|
| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of slots | 2.5 |
| Illumination | No |
| SFF ready | No |
| Product colour | White |
| Minimum system power supply | 750 W |
|---|---|
| Supplementary power connectors | 3x 8-pin |
| Windows operating systems supported | Yes |
|---|
| Weight | 1.16 kg |
|---|---|
| Length | 312 mm |
| Depth | 50 mm |
| Height | 130 mm |
| Package width | 405 mm |
|---|---|
| Package depth | 233 mm |
| Package height | 88.5 mm |
| Package weight | 1.75 kg |
| Package type | Box |
