ASUS
ASUS Prime -RTX5080-O16G NVIDIA GeForce RTX 5080 16 GB GDDR7
Part number PRIME-RTX5080-O16G
THE SFF-READY ASUS PRIME GEFORCE RTX 5080 16GB GDDR7 OC EDITION GRAPHICS CARD (P
- NVIDIA GeForce RTX 5080 16 GB GDDR7
- 7680 x 4320 pixels 256 bit 30 Gbit/s PCI Express 5.0
- HDMI ports quantity: 1 DisplayPorts quantity: 3
- OpenGL version: 4.6
- 1x 16-pin
- Manufacturer
- ASUS
- Part number
- PRIME-RTX5080-O16G
- Condition
- New
- Category
- System Components › Video & Capture Card
- 1GPA category
- Hardware
Overview

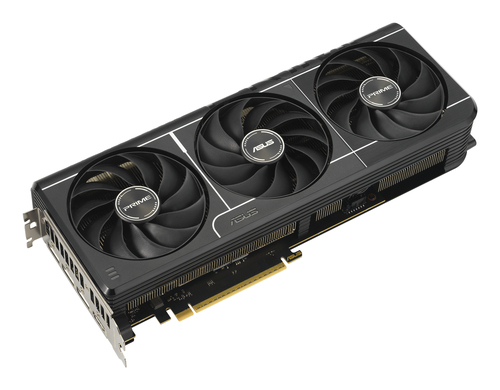

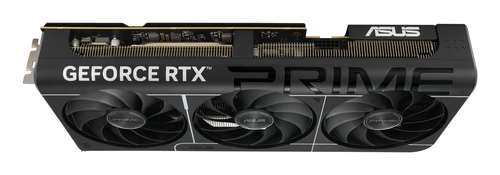

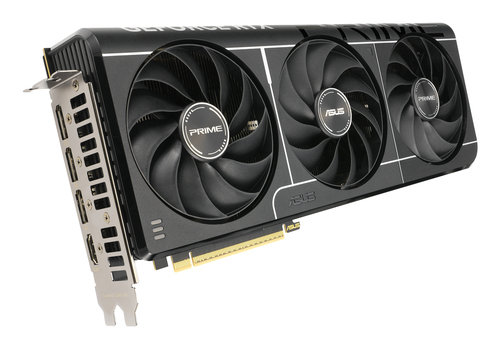

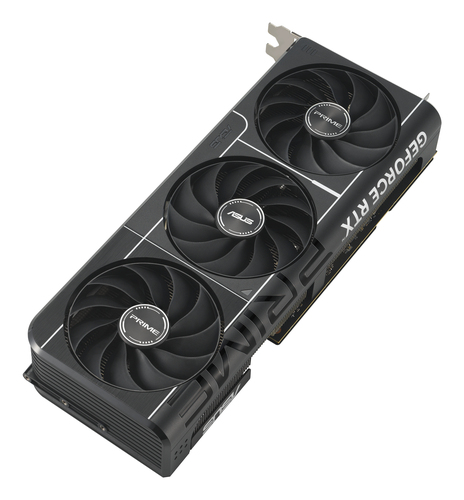

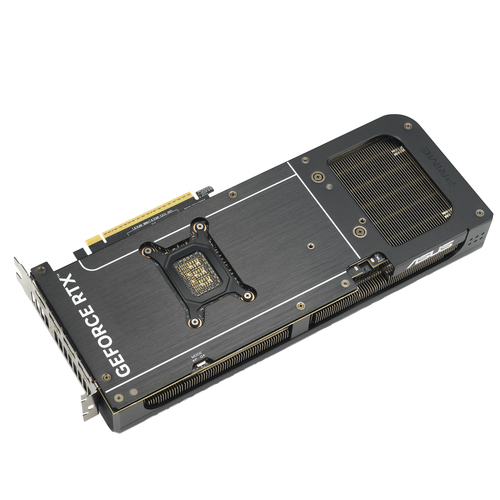

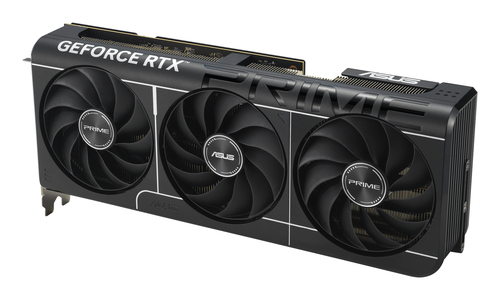

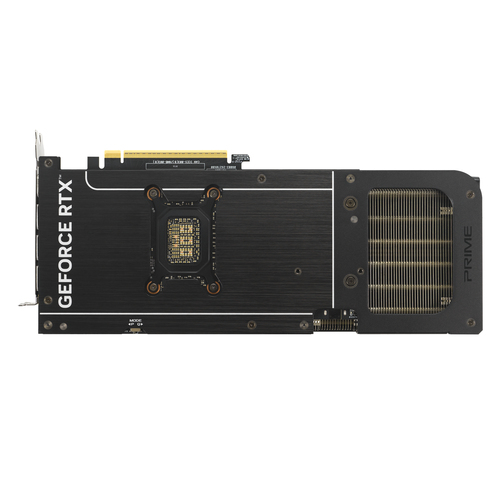

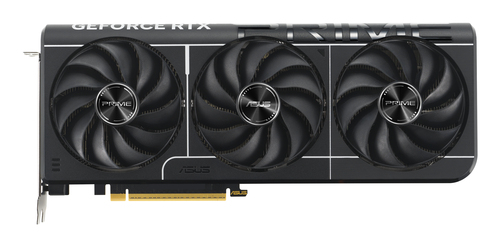

The SFF-Ready ASUS Prime GeForce RTX™ 5080 OC Edition 16GB GDDR7 boasts three Axial-tech fans and a vapor chamber for supreme cooling.
Specifications
| CUDA | Yes |
|---|---|
| CUDA cores | 10752 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
|---|---|
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Data transfer rate | 30 Gbit/s |
| Interface type | PCI Express 5.0 |
|---|---|
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| OpenGL version | 4.6 |
|---|---|
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| NPU performance up to | 1801 TOPs |
| Overclocked (OC) edition | Yes |
| Cooling type | Active |
|---|---|
| Cooling technology | ASUS Axial-tech |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Bracket height | Full-Height (FH) |
| Number of slots | 2.5 |
| Illumination | No |
| SFF ready | No |
| Product colour | Black |
| Minimum system power supply | 850 W |
|---|---|
| Supplementary power connectors | 1x 16-pin |
| Windows operating systems supported | Yes |
|---|
| Weight | 1.34 kg |
|---|---|
| Length | 306 mm |
| Depth | 50 mm |
| Height | 126 mm |
| Package width | 405 mm |
|---|---|
| Package depth | 233 mm |
| Package height | 88.5 mm |
| Package weight | 1.99 kg |
| Package type | Box |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
