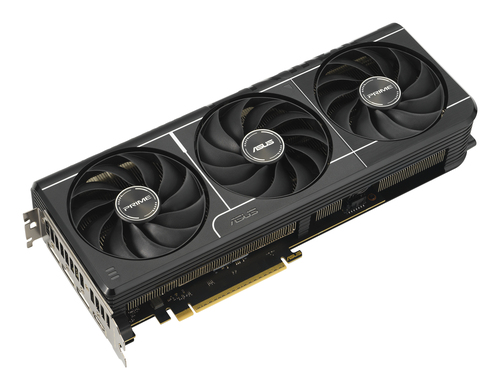

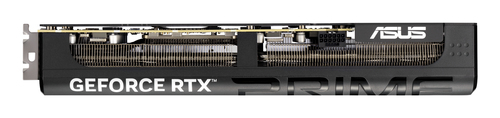

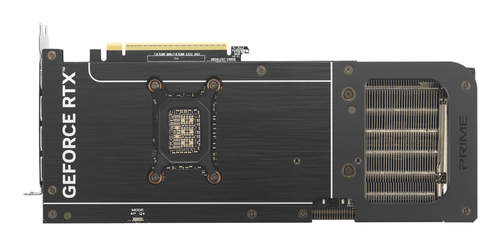

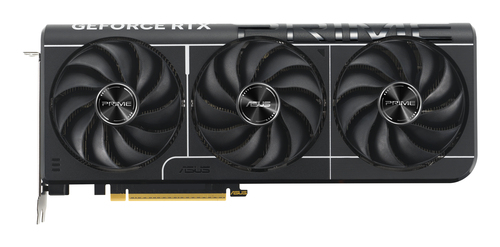

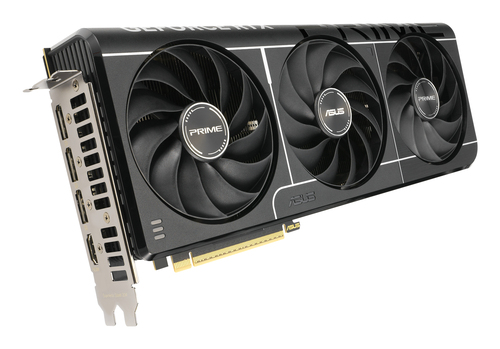

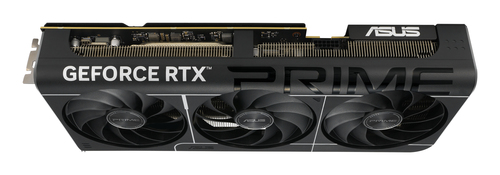

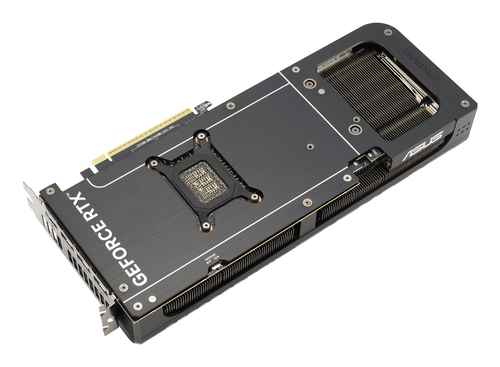

ASUS Prime -RTX5070TI-16G NVIDIA GeForce RTX 5070 Ti 16 GB GDDR7
Part number PRIME-RTX5070TI-16G
SFF-READY ASUS PRIME GEFORCE RTX 5070 TI 16GB GDDR7 GRAPHICS
NVIDIA GeForce RTX 5070 Ti 16 GB GDDR7
7680 x 4320 pixels 256 bit 28 Gbit/s PCI Express 5.0
HDMI ports quantity: 1 DisplayPorts quantity: 3
OpenGL version: 4.6
1x 16-pin
Manufacturer
ASUS
Part number
PRIME-RTX5070TI-16G
Condition
New
Category
System Components › Video & Capture Card
1GPA category
Hardware
Overview
Primed for Power
Experience Primal performance with the Prime GeForce RTX 5070 Ti, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
Specifications
Processor
CUDA
Yes
CUDA cores
8960
Graphics processor family
NVIDIA
Graphics processor
GeForce RTX 5070 Ti
Maximum resolution
7680 x 4320 pixels
Parallel processing technology support
Not supported
Maximum displays per videocard
4
Memory
Discrete graphics card memory
16 GB
Graphics card memory type
GDDR7
Memory bus
256 bit
Data transfer rate
28 Gbit/s

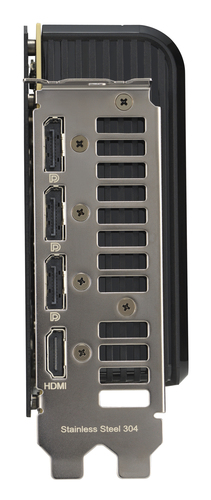

Ports & interfaces
Interface type
PCI Express 5.0
HDMI ports quantity
1
HDMI version
2.1b
DisplayPorts quantity
3
DisplayPort version
2.1b
Performance
OpenGL version
4.6
Virtual Reality (VR) ready
Yes
HDCP
Yes
HDCP version
2.3
Dual Link DVI
No
NVIDIA G-SYNC
Yes
Overclocked (OC) edition
No
Design
Cooling type
Active
Cooling technology
ASUS Axial-tech
Number of fans
3 fan(s)
Form factor
Full-Height/Full-Length (FH/FL)
Bracket height
Full-Height (FH)
Number of slots
2.5
Illumination
No
SFF ready
Yes
Product colour
Black
Power
Minimum system power supply
750 W
Supplementary power connectors
1x 16-pin
System requirements
Windows operating systems supported
Yes
Weight & dimensions
Weight
1.17 kg
Length
304 mm
Depth
50 mm
Height
126 mm
Packaging data
Package width
405 mm
Package depth
88.5 mm
Package height
233 mm
Package weight
1.82 kg
Package type
Box
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
