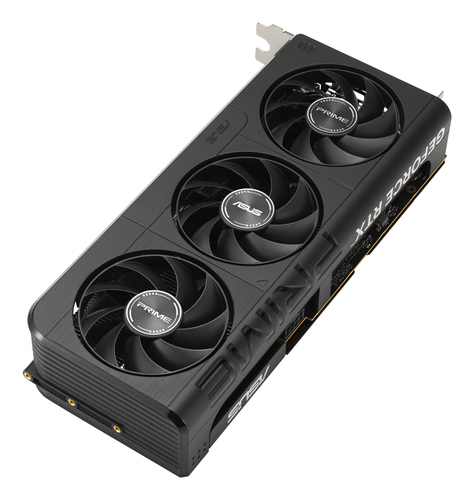

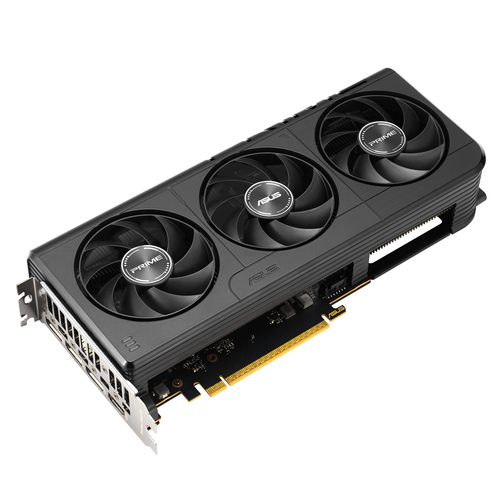

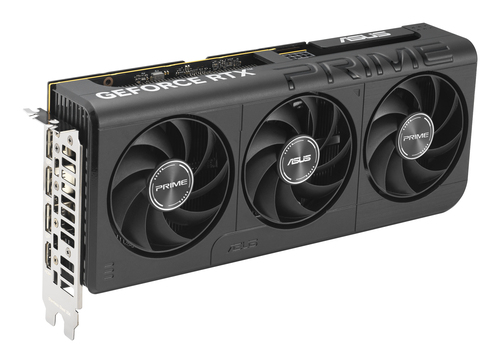

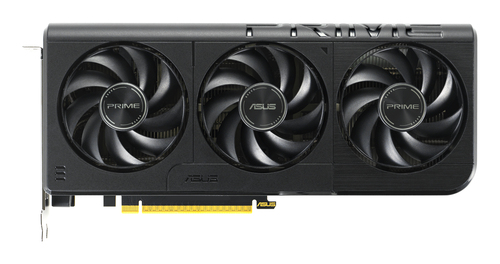

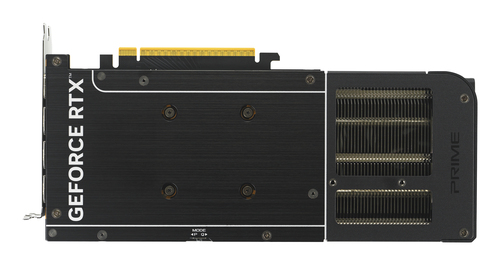

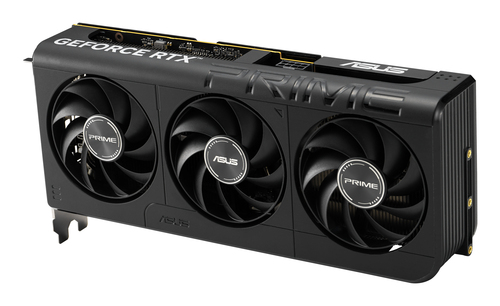

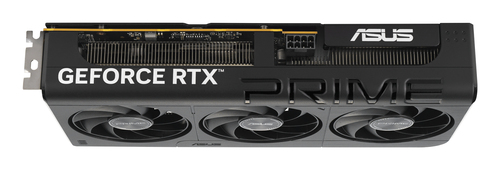

ASUS Prime -RTX5060-O8G NVIDIA GeForce RTX 5060 8 GB GDDR7
Part number PRIME-RTX5060-O8G
THE SFF-READY ASUS PRIME GEFORCE RTX 5060 8GB GDDR7 OC ED
NVIDIA GeForce RTX 5060 8 GB GDDR7
7680 x 4320 pixels 128 bit 28 Gbit/s PCI Express 5.0
HDMI ports quantity: 1 DisplayPorts quantity: 3
OpenGL version: 4.6
1x 8-pin
Manufacturer
ASUS
Part number
PRIME-RTX5060-O8G
Condition
New
Category
System Components › Video & Capture Card
1GPA category
Hardware
Overview
Primed for Power
Experience Primal performance with the Prime GeForce RTX 5060, an SFF-Ready Enthusiast GeForce Card featuring a 2.5-slot design for expansive compatibility, enhanced by a triple-fan setup for supreme airflow design for supreme cooling.
Specifications
Processor
CUDA
Yes
CUDA cores
3840
Graphics processor family
NVIDIA
Graphics processor
GeForce RTX 5060
Processor boost clock speed
2565 MHz
Processor frequency (OC mode)
2595 MHz
Maximum resolution
7680 x 4320 pixels
Parallel processing technology support
Not supported
Stream processors
4
Maximum displays per videocard
4
Memory
Discrete graphics card memory
8 GB
Graphics card memory type
GDDR7
Memory bus
128 bit
Data transfer rate
28 Gbit/s

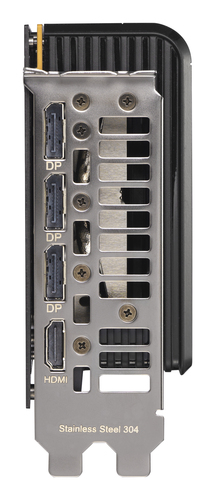

Ports & interfaces
Interface type
PCI Express 5.0
HDMI ports quantity
1
HDMI version
2.1b
DisplayPorts quantity
3
DisplayPort version
2.1b
Performance
OpenGL version
4.6
Virtual Reality (VR) ready
Yes
HDCP
Yes
HDCP version
2.3
Dual Link DVI
No
NVIDIA G-SYNC
Yes
NPU performance up to
614 TOPs
Overclocked (OC) edition
Yes
Design
Cooling type
Active
Cooling technology
ASUS Axial-tech
Number of fans
3 fan(s)
Form factor
Full-Height/Full-Length (FH/FL)
Bracket height
Full-Height (FH)
Number of slots
2.5
Illumination
No
SFF ready
Yes
Product colour
Multicolour
Power
Minimum system power supply
550 W
Supplementary power connectors
1x 8-pin
System requirements
Windows operating systems supported
Yes
Weight & dimensions
Weight
775 g
Length
268.3 mm
Depth
50 mm
Height
120 mm
Packaging data
Package width
405 mm
Package depth
233 mm
Package height
88.5 mm
Package weight
1.42 kg
Package type
Box
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
