Manufacturer
ASUS
Part number
PRIME H810M-E-CSM
Condition
New
Category
System Components › Motherboards
1GPA category
Hardware
Overview

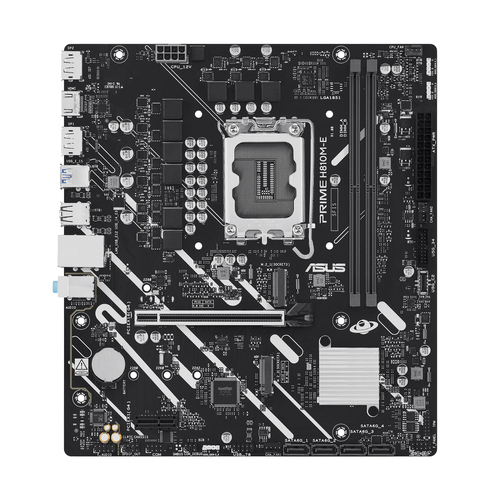

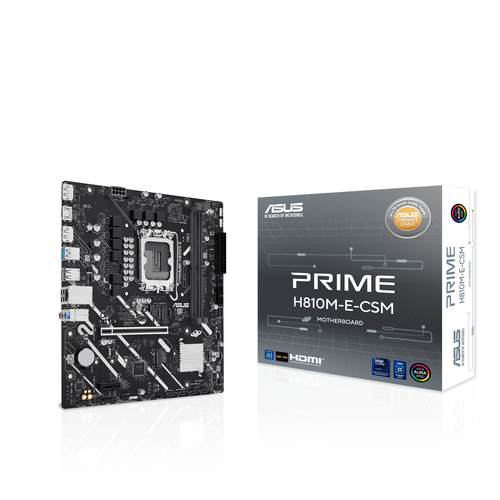

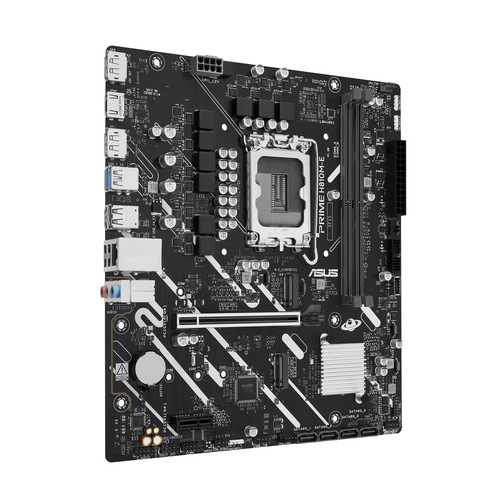

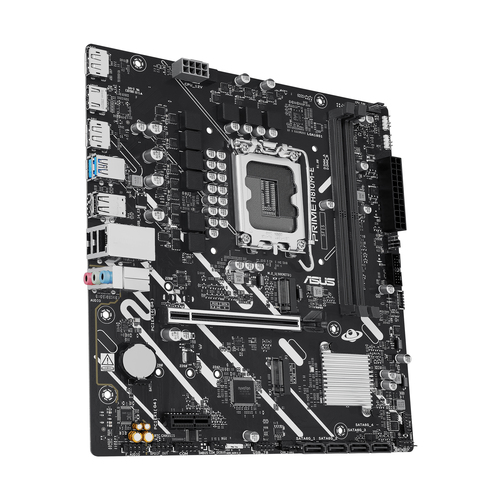

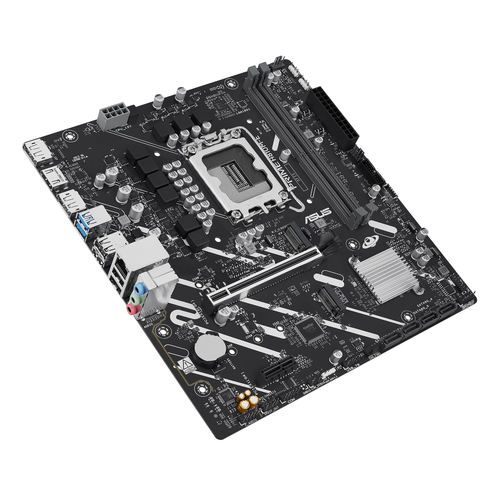

PRIME H810M-E-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-E-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
Processor
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
Graphics
Parallel processing technology support
Not supported
Internal I/O
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
2
Number of SATA III connectors
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
2
Chassis intrusion connector
Yes
EPS power connector (8-pin)
Yes
Number of COM connectors
1
TPM connector
Yes
12V power connector
Yes
RGB LED pin header
Yes
Number of RGB LED pin headers
3

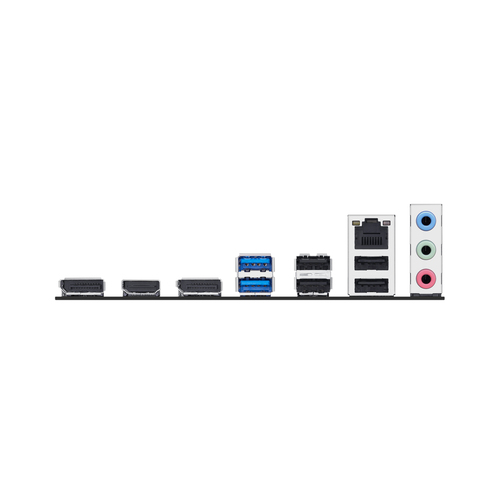

Rear panel I/O ports
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
DisplayPorts quantity
2
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet
Wi-Fi
No
Top Wi-Fi standard
Not available
Features
Motherboard chipset
Intel H810
Audio output channels
7.1 channels
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
4.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Packaging data
Package width
270 mm
Package depth
263 mm
Package height
51.5 mm
Package weight
747 g
Weight & dimensions
Width
244 mm
Depth
222 mm

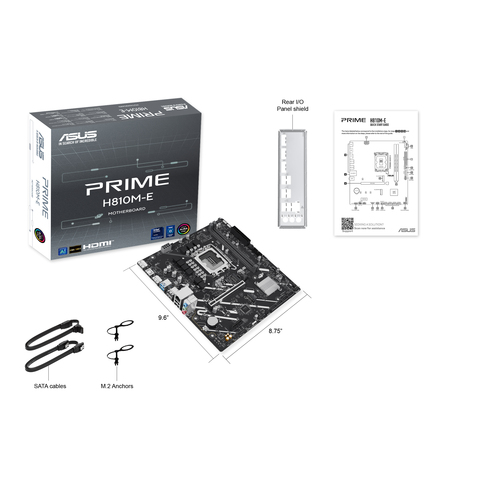

Packaging content
Cables included
SATA
