HDD & SSD M.2, SATA III Number of storage drives supported: 6
BIOS type: UEFI AMI 256 Mbit
Gigabit Ethernet Wi-Fi Wi-Fi 6 (802.11ax) Bluetooth 5.3
Manufacturer
ASUS
Part number
PRIME H810M-A WIFI-CSM
Condition
New
Category
System Components › Motherboards
1GPA category
Hardware
Overview

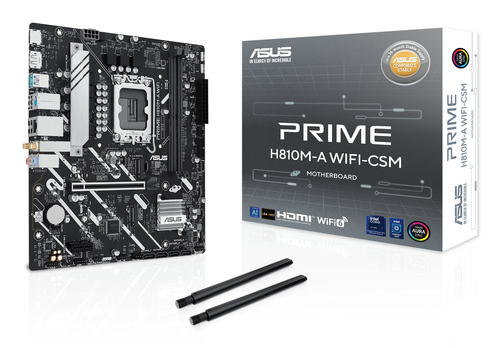

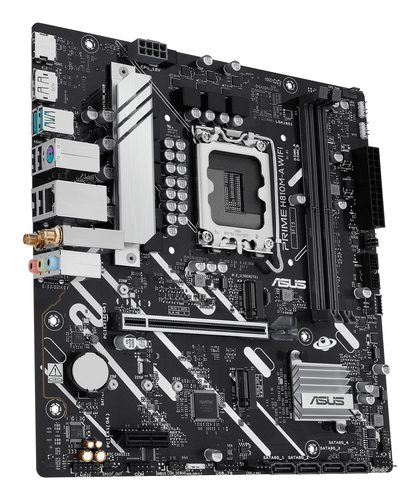

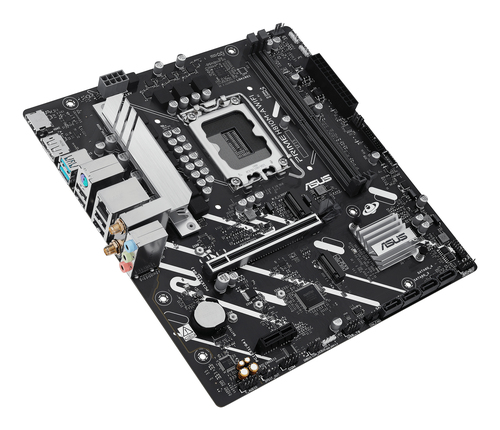

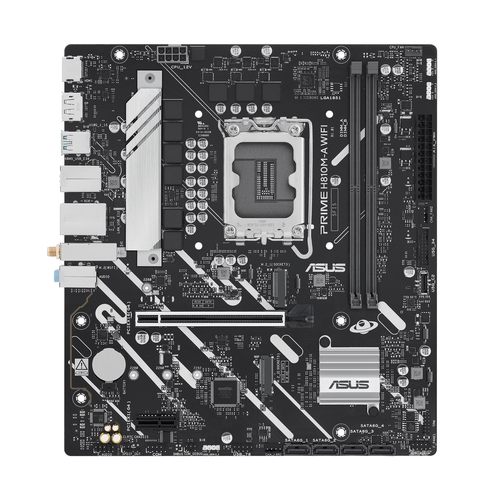

Prime H810M-A WIFI-CSM
ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME H810M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
Processor
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
2
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
6400 MHz
Maximum internal memory
128 GB
Unbuffered memory
Yes
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
Graphics
Parallel processing technology support
Not supported
Internal I/O
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
Number of SATA III connectors
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
2
EPS power connector (8-pin)
Yes
TPM connector
Yes
12V power connector
Yes

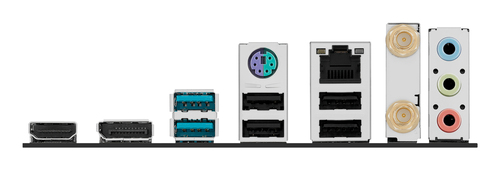

Rear panel I/O ports
USB 2.0 ports quantity
4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Ethernet LAN (RJ-45) ports
1
PS/2 ports quantity
1
HDMI ports quantity
1
DisplayPorts quantity
1
Microphone in
Yes
Network
Ethernet LAN
Yes
Ethernet interface type
Gigabit Ethernet

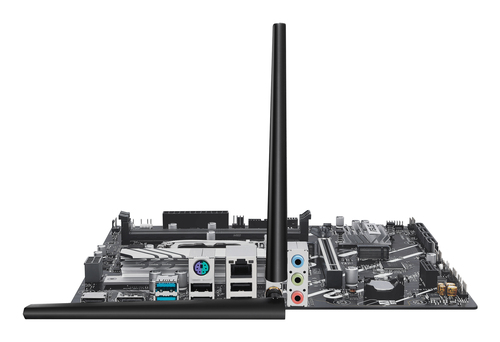

Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Bluetooth
Yes
Bluetooth version
5.3
Features
Motherboard chipset
Intel H810
Audio output channels
7.1 channels
Product colour
Multicolour
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Windows operating systems supported
Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots
1
Number of M.2 (M) slots
2
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Weight & dimensions
Width
244 mm
Depth
222 mm
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
