HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 6
BIOS type: UEFI AMI 256 Mbit
2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Manufacturer
ASUS
Part number
PRIME B860M-A WIFI-CSM
Condition
New
Category
System Components › Motherboards
1GPA category
Hardware
Overview

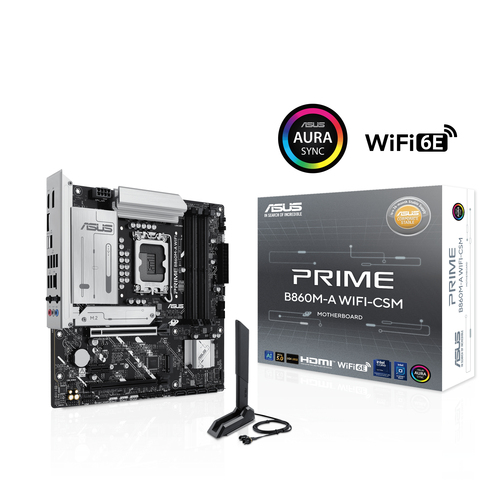

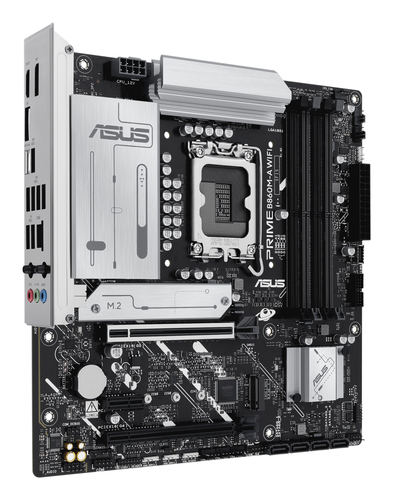

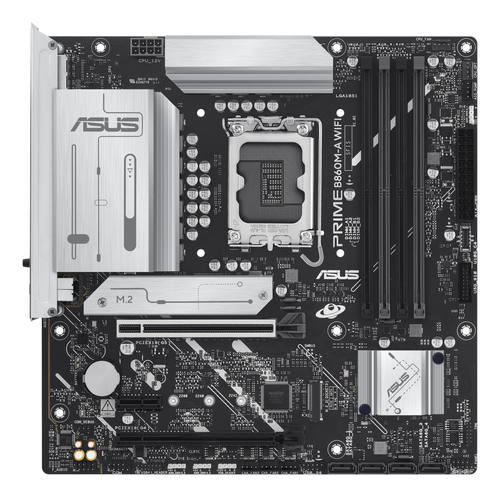

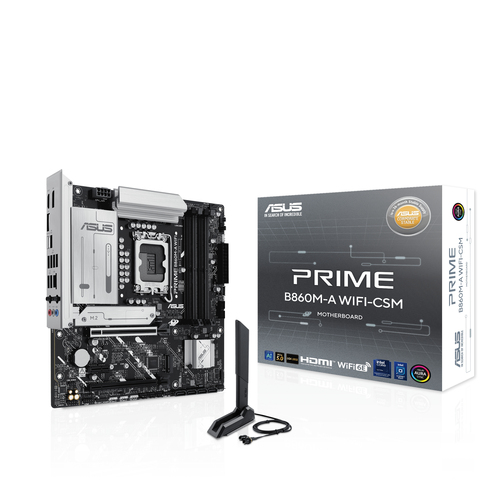

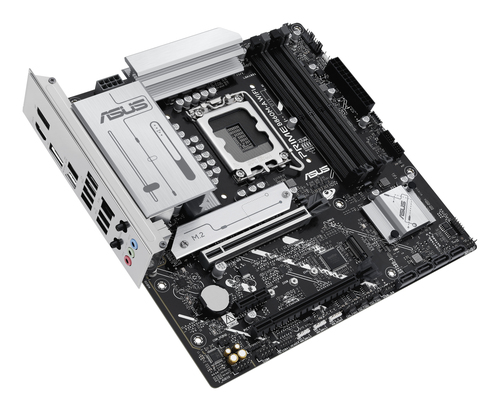

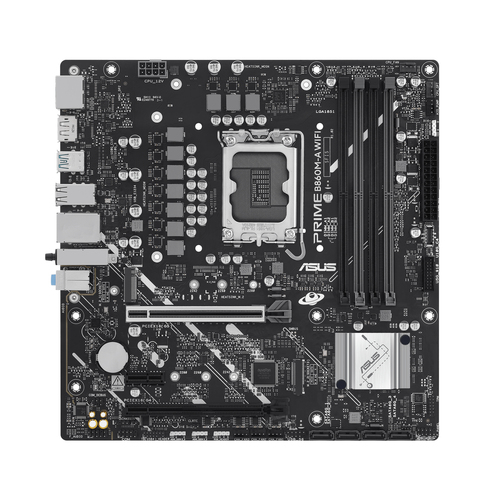

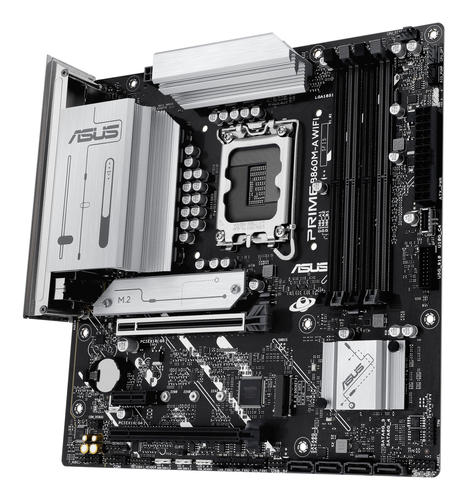

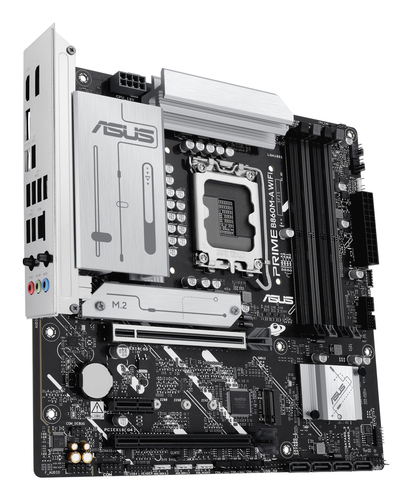

ASUS PRIME series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the PRIME B860M-A WIFI-CSM motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
Processor
Processor manufacturer
Intel
Processor socket
LGA 1851 (Socket V1)
Compatible processor series
Intel Core Ultra (Series 2)
Supported processor sockets
LGA 1851
Memory
Supported memory types
DDR5-SDRAM
Number of memory slots
4
Memory slots type
DIMM
Memory channels
Dual-channel
ECC сompatibility
Non-ECC
Supported memory clock speed (max)
8666 MHz
Maximum internal memory
256 GB
Unbuffered memory
Yes
Maximum internal memory per slot
64 GB
Storage controllers
Supported storage drive types
HDD & SSD
Supported storage drive interfaces
M.2, SATA III
Number of HDDs supported
4
Number of storage drives supported
6
RAID support
Yes
RAID levels
0, 1, 5, 10
Graphics
Parallel processing technology support
Not supported
On-board graphics card
No
Internal I/O
USB 2.0 connectors
1
USB 3.2 Gen 1 (3.1 Gen 1) connectors
1
USB 3.2 Gen 2 (3.1 Gen 2) connectors
1
Number of SATA III connectors
4
S/PDIF out connector
Yes
Front panel audio connector
Yes
Front panel connector
Yes
ATX Power connector (24-pin)
Yes
CPU fan connector
Yes
Number of CPU fan connectors
1
Number of chassis fan connectors
3
Chassis intrusion connector
Yes
Number of COM connectors
1
TPM connector
Yes
Thunderbolt headers
1
12V power connector
Yes
Number of water pump connectors
1
RGB LED pin header
Yes
Number of RGB LED pin headers
1
Rear panel I/O ports
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2x2 Type-C ports quantity
1
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
2
DisplayPort version
1.4
Headphone outputs
1
Line-in
Yes
Microphone in
Yes
WiFi-AP antenna jack
2
Network
Ethernet LAN
Yes
Ethernet interface type
2.5 Gigabit Ethernet
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
Bluetooth
Yes
Bluetooth version
5.3
Features
Motherboard chipset
Intel B860
Audio output channels
7.1 channels
Product colour
Black
Component for
PC
Motherboard form factor
micro ATX
Motherboard chipset family
Intel
Cooling type
Passive
Power source type
ATX
Windows operating systems supported
Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 4.x) slots
1
PCI Express x16 (Gen 4.x) slots
1
PCI Express x16 (Gen 5.x) slots
1
Number of M.2 (M) slots
2
1st M.2 largest key size
2280
1st M.2 highest PCI Express generation
5.0
2nd M.2 largest key size
2280
2nd M.2 highest PCI Express generation
4.0
BIOS
BIOS type
UEFI AMI
BIOS memory size
256 Mbit
Weight & dimensions
Width
244 mm
Depth
244 mm
Packaging content
Cables included
SATA
Antenna included
Yes
Screws included
Yes
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
