ASUS PRIME B840-PLUS WIFI AMD B840 Socket AM5 ATX
Part number PRIME B840-PLUS WIFI
ASUS PRIME B840-PLUS WIFI AMD AM5 B840 ATX DDR5 PCIE 4.0
AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series PC ATX AMD B840 7.1 channels DDR5-SDRAM 4 DIMM Maximum internal memory: 192 GB HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 7 BIOS type: UEFI AMI 256 Mbit 2.5 Gigabit Ethernet Wi-Fi Wi-Fi 6E (802.11ax) Bluetooth 5.3
Manufacturer ASUS
Part number PRIME B840-PLUS WIFI
Condition New
Category System Components › Motherboards 1GPA category Hardware
Manufacturer MSRP
$199.99
On 1GPA? Sign in to see your contract price.
Stock and final pricing are confirmed by your rep on the quote. Catalog dated September 30, 2026.
Overview
B840-PLUS WIFI
ASUS Prime series motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The PRIME B840-PLUS WIFI motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.
Specifications
Processor
Processor manufacturer AMD Processor socket Socket AM5 Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series Supported processor sockets Socket AM5
Memory
Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel ECC сompatibility ECC & Non-ECC Maximum internal memory 192 GB Unbuffered memory Yes
Storage controllers
Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, SATA III Number of HDDs supported 4 Number of storage drives supported 7 RAID support Yes RAID levels 0, 1, 5, 10
Graphics
Parallel processing technology support Not supported On-board graphics card No
Internal I/O
USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 2 Number of SATA III connectors 4 S/PDIF out connector Yes Front panel audio connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes Number of chassis fan connectors 4 Chassis intrusion connector Yes Number of COM connectors 1 TPM connector Yes Thunderbolt headers 1 12V power connector Yes

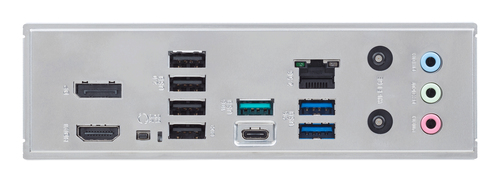

Rear panel I/O ports
USB 2.0 ports quantity 4 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 2 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 DisplayPorts quantity 1 WiFi-AP antenna jack 1
Network
Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet Wi-Fi Yes Top Wi-Fi standard Wi-Fi 6E (802.11ax) Wi-Fi standards Wi-Fi 6E (802.11ax) Bluetooth Yes Bluetooth version 5.3
Features
Motherboard chipset AMD B840 Audio output channels 7.1 channels Product colour Aluminium, Black Component for PC Motherboard form factor ATX Motherboard chipset family AMD Windows operating systems supported Windows 10 x64, Windows 11
Expansion slots
PCI Express x1 (Gen 3.x) slots 1 PCI Express x16 (Gen 3.x) slots 3 PCI Express x16 (Gen 4.x) slots 1 Number of M.2 (M) slots 3 1st M.2 largest key size 2280 1st M.2 highest PCI Express generation 4.0 2nd M.2 largest key size 2280 2nd M.2 highest PCI Express generation 4.0 3rd M.2 largest key size 2280 3rd M.2 highest PCI Express generation 3.0
BIOS
BIOS type UEFI AMI BIOS memory size 256 Mbit
Packaging data
Package width 353 mm Package depth 273 mm Package height 68 mm Package weight 1.26 kg
Weight & dimensions
Width 305 mm Depth 244 mm

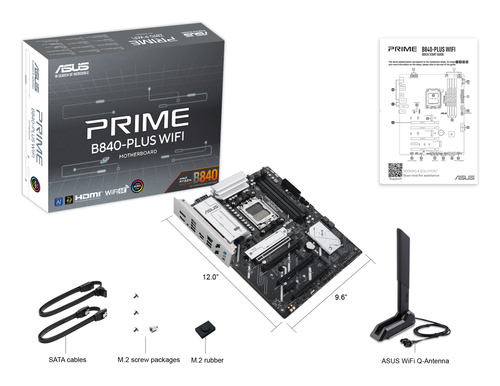

Packaging content
Cables included SATA Antenna included Yes Screws included Yes
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
