ASUS PRIME AP303 WTE CHASSIS ATX PC CASE GPU SUPPORT FOR UP TO 3
Compact Size with Maximal Capacity: 44-liter footprint supports up to 360mm graphics cards, up to 360mm radiators (60mm max thickness), up to 180mm ATX PSUs
Enhanced Rigidity for Graphics Cards: Added bracket supports GeForce RTX™ 50 Series graphics cards from 310mm to 360mm long, reducing sagging and movement
Power Cable for High-End Systems: UL-certified power cable delivers 15 amps to ensure stable operation
Optimized for Cooling: Support for up to 360mm radiators and up to seven fans handles any thermal scenario
Front Panel USB Type-C® Support: A 20Gbps USB Type-C port enables high-speed data transfer speeds
Manufacturer
ASUS
Part number
PRIME AP303 MESH WHITE
Condition
New
Category
System Components › Computer Cases
1GPA category
Hardware
Overview
The ASUS Prime AP303 is a compact 44-liter ATX case with support for graphics cards up to 360mm long, 360mm radiators up to 60mm thick, and ATX PSUs up to 180mm long.

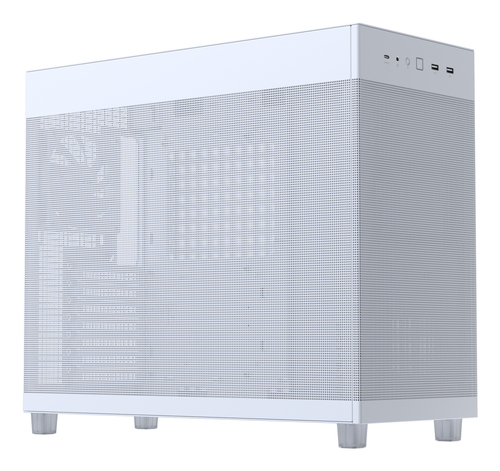

ASUS Prime AP303 - Mesh Panel
Compact Frame. Massive Potential.
The ASUS Prime AP303 is a compact 44-liter ATX chassis that accommodates 360mm radiators up to 60mm thick and graphics cards up to 360mm long. It features a graphics card bracket and holder to keep cards firmly mounted, plus an internal power cable that delivers 15 amperes to maintain stable power delivery for high-end PC builds.
Specifications
Design
Material
Metal
Form factor
Midi Tower
Type
PC
Product colour
White
Supported motherboard form factors
ATX, micro ATX, Mini-ITX
Number of 3.5" bays
1
Number of 2.5" bays
2
Number of expansion slots
7
Side window
No
Suitable for
Gaming
Illumination
No
Anti-dust filter
Yes
Cable management
Yes
Maximum CPU cooler height
16.5 cm
Maximum graphics card length
36 cm
Maximum PSU length
18 cm
Power supply
Power supply included
No
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
Combo headphone/mic port
Yes
USB 3.2 Gen 2x2 Type-C ports quantity
1
Cooling
Rear fans installed
1x 120 mm
Number of rear fans supported (max)
1
Rear fans diameters supported
120 mm
Number of top fans supported (max)
3
Top fans diameters supported
120,140 mm
Liquid cooling capability
Yes
Rear radiator sizes supported
120 mm
Top radiator sizes supported
120,140,240,280,360 mm
Storage
Supported HDD sizes
2.5,3.5"
Weight & dimensions
Width
215 mm
Depth
485 mm
Height
425 mm
Weight
6.8 kg
Packaging data
Package width
285 mm
Package depth
571 mm
Package height
465 mm
Package weight
8.1 kg
Other features
Volume
44 L
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
