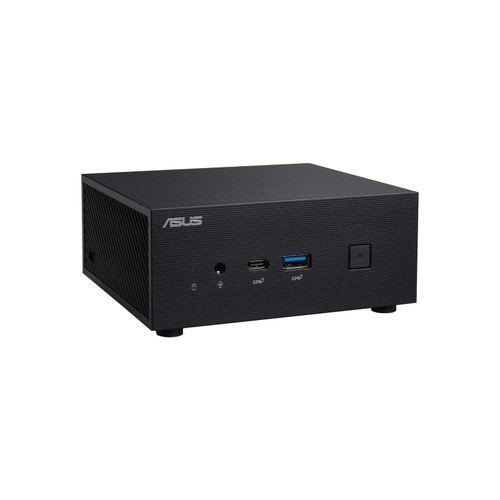

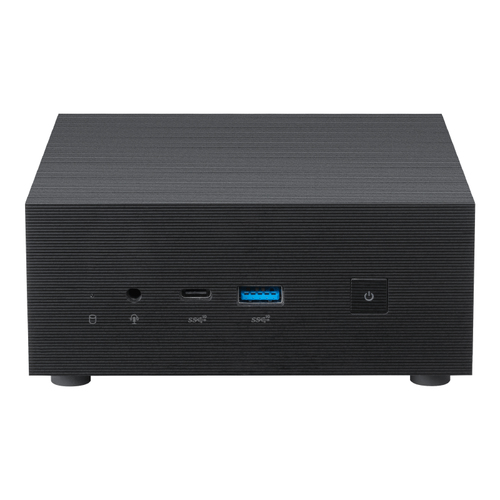

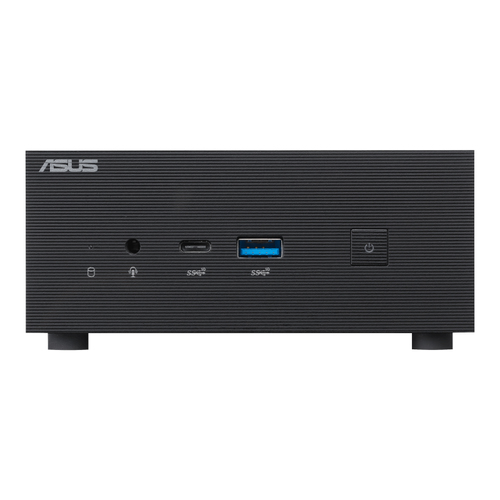

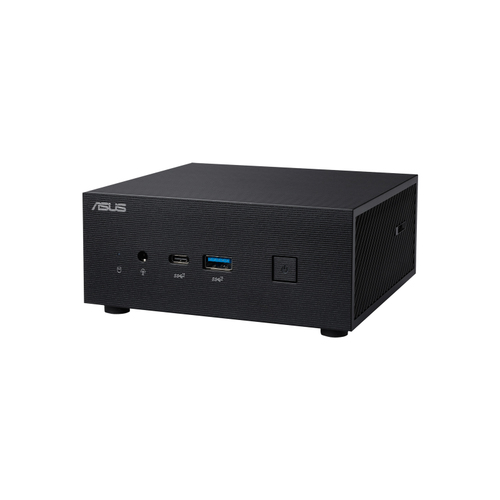

ASUS PN63-S1-SYS7H15PXFD Intel® Core™ i7 i7-13700H 16 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Part number PN63-S1-SYS7H15PXFD
ASUS PN63-S1 MINI PC SYSTEM INTEL CORE I7-11370H DDR4 16GB R
- Windows 11 Pro 64-bit
- Intel Core i7-13700H (24MB Cache)
- 16GB DDR4-SDRAM & 512GB SSD
- Manufacturer
- ASUS
- Part number
- PN63-S1-SYS7H15PXFD
- Condition
- New
- Category
- Computer Systems › Barebones Systems
- 1GPA category
- Hardware
Overview
Ultracompact mini PC with 11th Gen Intel® Core™ processors and Intel® Iris® Xe Graphics*, up to 64 GB DDR4 RAM, PCIe® Gen 4 x4 M.2 NVMe® SSD, Intel® 2.5 Gb LAN, WiFi 6E
Easy modification, maximum possibilities
ASUS Mini PC PN63-S1 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 11th Generation Intel® Core™ processors and support for high-speed 3200MHz DDR4 memory, Mini PC PN63-S1 is ready to take on demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won't fit, such as for digital signage or in a home theater. Wi-Fi 6E networking ensures stable, high-speed data transfers, even in crowded networking environments.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor generation | 13th gen Intel® Core™ i7 |
| Processor model | i7-13700H |
| Processor cores | 14 |
| Processor threads | 20 |
| Processor boost frequency | 5 GHz |
| Performance cores | 6 |
| Efficient cores | 8 |
| Performance-core Max Turbo Frequency | 5 GHz |
| Efficient-core Max Turbo Frequency | 3.7 GHz |
| Processor cache | 24 MB |
| Processor cache type | Smart Cache |
| Processor base power | 45 W |
| Maximum turbo power | 115 W |
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| NVMe | Yes |
| SSD form factor | M.2 |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel Iris Xe Graphics |
| Product type | Mini PC |
|---|---|
| Built-in speaker(s) | No |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| Mini DisplayPorts quantity | 1 |
| DC-in jack | Yes |
| Power supply | 90 W |
|---|
| Chassis type | Mini PC |
|---|---|
| Colour name | Black |
| Product colour | Black |
| Operating system architecture | 64-bit |
|---|---|
| Operating system installed | Windows 11 Pro |
| Display included | No |
|---|
| Width | 120 mm |
|---|---|
| Depth | 130 mm |
| Height | 58 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
