ASUS PN PN62S-SYS715PXFD PC/workstation Intel® Core™ i7 i7-10710U 16 GB DDR4-SDRAM 512 GB SSD Windows 10 Pro Mini PC Black
Part number PN62S-SYS715PXFD
ASUS PN62S MINI PC SYSTEM CORE I7-10710U 16GB RAM M.2 512G
- Windows 10 Pro 64-bit
- Intel Core i7-10710U (12MB Cache, 1.1GHz)
- 16GB (2666MHz) DDR4-SDRAM & 512GB SSD
- Manufacturer
- ASUS
- Part number
- PN62S-SYS715PXFD
- Condition
- New
- Category
- Computer Systems › Barebones Systems
- 1GPA category
- Hardware
Overview
Ultracompact mini PC with 10th Gen Intel® Core processors, up to 64GB DDR4 RAM, M.2 SSD, Thunderbolt 3, Wi-Fi 6, Windows 10 and USB 3.1 Gen 2 Type-C
Easy modification, maximum possibilities
ASUS Mini PC PN62 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 10th Generation Intel® Core™ processors and support for high-speed 2666 MHz DDR4 memory, Mini PC PN62 is ready to take on demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won't fit, such as for digital signage or in a home theater. Wi-Fi 6 (802.11ax) networking ensures stable, high-speed data transfers, even in crowded networking environments, and a USB-C port with Power Delivery (PD) supports data transfer, power and DisplayPort functionality over a single cable. Mini PC PN62 also supports Microsoft Cortana via dual-array front microphones for convenient voice control and features an infrared (IR) sensor, letting you control applications via remote control.
Upgrade-friendly

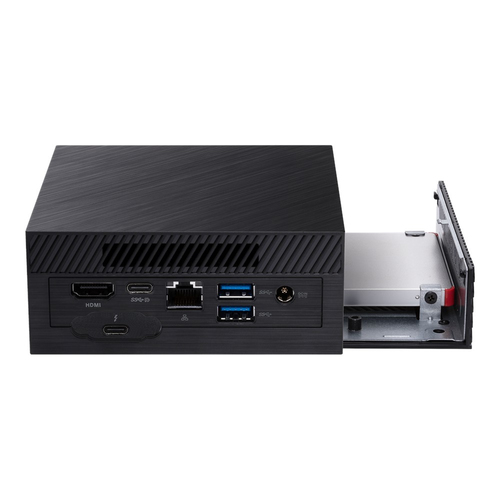

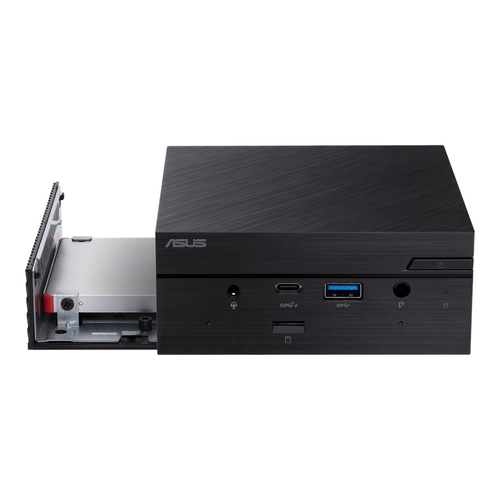

A convenient sliding chassis design lets you add or upgrade an M.2 SSD, 2.5-inch HDD or SSD, or memory in two easy steps using just a screwdriver. A bare-bones* option is also available, giving you maximum flexibility to customize your system.
Dual storage design
ASUS Mini PC PN62 fits one Intel® Optane™ Memory or M.2 SSD, and a 2.5-inch HDD, letting you create your own custom storage solution with the balance of speed and capacity to fit your needs.
Modern, space-saving design
With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN62 easily blends into home, office and retail environments. Compact and lightweight at 115mm x 115mm x 49mm with a 0.62-liter volume, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | Intel® Core™ i7 |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor model | i7-10710U |
| Processor cores | 6 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 1.1 GHz |
| Processor cache | 12 MB |
| Configurable TDP-up frequency | 1.6 GHz |
| Configurable TDP-up | 25 W |
| Configurable TDP-down | 12.5 W |
| Configurable TDP-down frequency | 0.8 GHz |
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Memory clock speed | 2666 MHz |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | Intel |
| On-board graphics card model | Intel® UHD Graphics |
| Product type | Mini PC |
|---|
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN controller manufacturer | Intel |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Power supply input voltage | 19 V |
|---|
| Chassis type | Mini PC |
|---|---|
| Placement supported | Horizontal |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Operating system architecture | 64-bit |
|---|---|
| Operating system installed | Windows 10 Pro |
| Intel 64 | Yes |
|---|---|
| Enhanced Intel SpeedStep Technology | Yes |
| Embedded options available | No |
| Intel Clear Video Technology | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel TSX-NI | No |
| Idle States | Yes |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel Flex Memory Access | Yes |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| CPU configuration (max) | 1 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Display included | No |
|---|
| Audio chip | Realtek ALC3236-VB2 |
|---|
| Width | 115 mm |
|---|---|
| Depth | 115 mm |
| Height | 49 mm |
| Weight | 700 g |
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
