ASUS PN62S-BB7054MD2 PC/workstation barebone Mini PC Black i7-10710U 1.1 GHz
Part number PN62S-BB7054MD2
ASUS PN62S MINIPC INTEL CORE I7 I7-10710U HDMI 2.0 60 HZ DISPLAY
- Windows 10 Pro - ASUS recommends Windows 10 Pro for business. or other editions available
- Powerful performance with 10th Generation Intel® Core™ processors
- High-speed Wi-Fi 6 networking with improved power efficiency
- Versatile USB 3.1 Gen 1 Type-C port for data transfer and DisplayPort functionality
- Microsoft Cortana support with dual-array front microphones
- Infrared (IR) receiver for remote control of applications
- Dual-storage design with up to a 2.5-inch HDD up to 1 TB and an M.2 SSD up to 256 GB
- Comprehensive I/O connectivity including a configurable Thunderbolt 3 port* option that provides fast and versatile connectivity
- ASUS Corporate Stable Model program ensuring 36-month stable-supply guarantee
- 24/7 reliability — Extensively tested to ensure long-term dependability
- Manufacturer
- ASUS
- Part number
- PN62S-BB7054MD2
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Overview
Ultracompact mini PC with 10th Gen Intel® Core processors, up to 64GB DDR4 RAM, M.2 SSD, Thunderbolt 3, Wi-Fi 6, Windows 10 and USB 3.1 Gen 2 Type-C
Easy modification, maximum possibilities
ASUS Mini PC PN62 is an ultracompact computer that delivers powerful performance for a wide variety of home and business applications. Featuring the latest 10th Generation Intel® Core™ processors and support for high-speed 2666 MHz DDR4 memory, Mini PC PN62 is ready to take on demanding workloads, yet its diminutive size takes up minimal space on a desk and makes it suited for applications where traditional PCs won't fit, such as for digital signage or in a home theater. Wi-Fi 6 (802.11ax) networking ensures stable, high-speed data transfers, even in crowded networking environments, and a USB-C port with Power Delivery (PD) supports data transfer, power and DisplayPort functionality over a single cable. Mini PC PN62 also supports Microsoft Cortana via dual-array front microphones for convenient voice control and features an infrared (IR) sensor, letting you control applications via remote control.
Upgrade-friendly

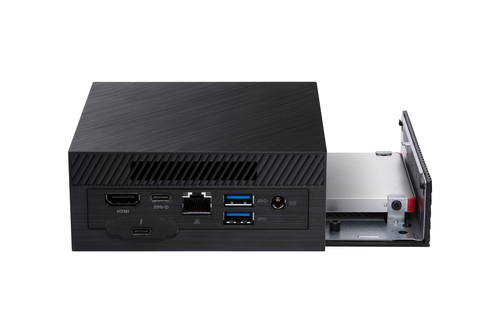

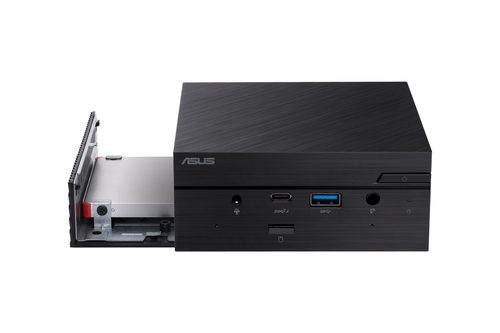

A convenient sliding chassis design lets you add or upgrade an M.2 SSD, 2.5-inch HDD or SSD, or memory in two easy steps using just a screwdriver. A bare-bones* option is also available, giving you maximum flexibility to customize your system.
Dual storage design
ASUS Mini PC PN62 fits one Intel® Optane™ Memory or M.2 SSD, and a 2.5-inch HDD, letting you create your own custom storage solution with the balance of speed and capacity to fit your needs.
Modern, space-saving design

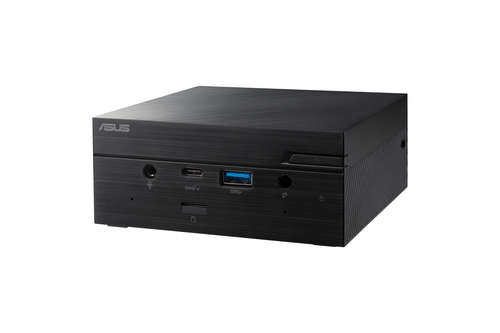

With a modern design featuring sleek lines and a stylish, brushed finish, ASUS Mini PC PN62 easily blends into home, office and retail environments. Compact and lightweight at 115mm x 115mm x 49mm with a 0.62-liter volume, it can be placed almost anywhere and even attached to the back of a display with a VESA mount for a space-saving, all-in-one solution.
Specifications
| Processor manufacturer | Intel |
|---|---|
| Processor family | 10th gen Intel® Core™ i7 |
| Processor generation | 10th gen Intel® Core™ i7 |
| Processor model | i7-10710U |
| Processor cores | 6 |
| Processor boost frequency | 4.7 GHz |
| Processor frequency | 1.1 GHz |
| Built-in processor | Yes |
| Processor cache | 12 MB |
| CPU configuration (max) | 1 |
| Internal memory | 8 GB |
|---|
| Supported storage drive types | HDD & SSD |
|---|---|
| Storage drive sizes supported | 2.5,M.2 |
| SSD form factor | M.2 |
| On-board graphics card | Yes |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| Discrete graphics card model | Not available |
| Optical drive type | No |
|---|
| Built-in speaker(s) | No |
|---|
| Ethernet LAN | Yes |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Yes |
| Chassis type | Mini PC |
|---|---|
| Product colour | Black |
| Cooling type | Passive |
| Product type | Mini PC |
| Embedded options available | No |
|---|---|
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel 64 | Yes |
| Idle States | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Intel Flex Memory Access | Yes |
| Intel Trusted Execution Technology | No |
| Execute Disable Bit | Yes |
| Intel TSX-NI | No |
| Intel Stable Image Platform Program (SIPP) | No |
| Intel Clear Video Technology | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Power supply type | External AC adapter |
|---|---|
| Power supply | 65 W |
| AC adapter output voltage | 19 V |
| AC adapter output current | 3.42 A |
| Width | 115 mm |
|---|---|
| Depth | 115 mm |
| Height | 49 mm |
| Weight | 700 g |
| Display included | No |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
