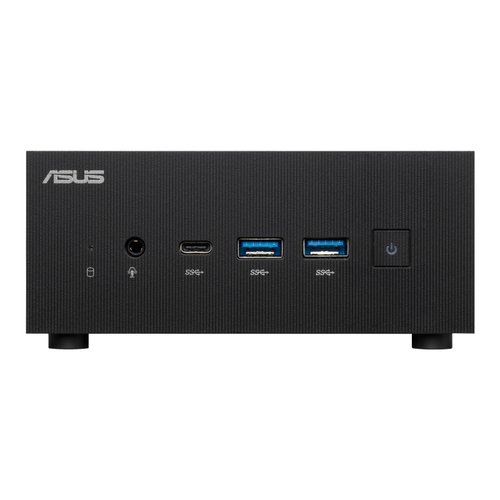

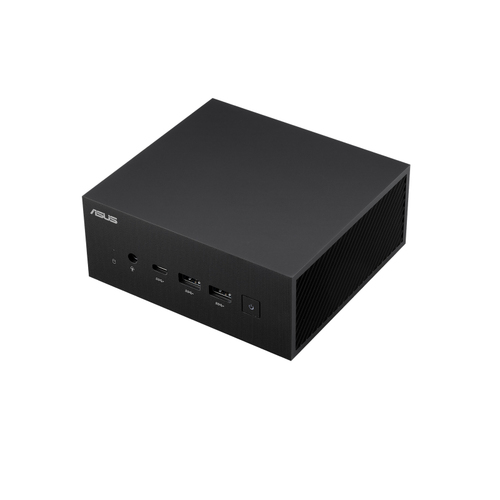

ASUS ExpertCenter PN52-SYS715PX1TD AMD Ryzen™ 7 5800H 16 GB DDR4-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Part number PN52-SYS715PX1TD
ASUS BE24EQSK 23.8IN. 1080P VIDEO CONFERENCING MONITOR, FULL HD, IPS, BUILT IN A
- Windows 11 Pro 64-bit
- AMD Ryzen 7 5800H (16MB Cache, 3.2GHz)
- 16GB DDR4-SDRAM & 512GB SSD
- Manufacturer
- ASUS
- Part number
- PN52-SYS715PX1TD
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Overview
System & CPU Performance
ASUS ExpertCenter PN52 is powered by the latest AMD Ryzen™ 5000H series processor for smooth and powerful multitasking. In PCMark 10 and Cinebench benchmark testing, the Ryzen 5000H delivered a 17.4% boost in overall performance, and up to 23.4% improvement in singlethread computing performance compared to the previous generation processor.
ASUS ExpertCenter PN52 gets a significant graphical boost with Radeon™ Graphics to deliver crisp, clear visuals that are way ahead of its class. It delivers a marked improvement, raising its score from 15% in 3DMark Fire Strike to 23.6% in the 3DMark Night Raid performance benchmarks.
4K Resolution & Quad Display Support
ASUS ExpertCenter PN52 can support up to four 4K displays via two HDMI® ports, DisplayPort™ over USB-C® or other user-configurable ports, without any limitation on the combination used.
*Configurable ports are confirmed SKU before configuring.
*Configurable - VGA ports can not support 4K due to transfer speed limit.
**High resolution/multi displays requires sufficient memory bandwidth
Ultra-realistic 8K Visuals
ASUS ExpertCenter PN52 delivers breathtaking 8K visuals at 30 frames per second via the configurable standard DisplayPort or DisplayPort over USB-C. Experience a level of detail that’s 4X greater than 4K, or 16X that of traditional FHD output.
Hyper-realistic 8K Support
*High resolution/multi displays requires sufficient memory bandwidth
USB Power Delivery Input
ASUS ExpertCenter PN52 can draw power from any USB Power Delivery-enabled display or device, eliminating the need for a separate power adapter to create a neater, uncluttered workspace.
Specifications
| Processor manufacturer | AMD |
|---|---|
| Processor family | AMD Ryzen™ 7 |
| Processor generation | AMD Ryzen 5000 Series |
| Processor model | 5800H |
| Processor cores | 8 |
| Processor threads | 16 |
| Processor boost frequency | 4.4 GHz |
| Processor frequency | 3.2 GHz |
| Processor cache | 16 MB |
| Internal memory | 16 GB |
|---|---|
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Memory slots | 2x SO-DIMM |
| Total storage capacity | 512 GB |
|---|---|
| Storage media | SSD |
| Optical drive type | No |
| Total SSDs capacity | 512 GB |
| Number of SSDs installed | 1 |
| SSD capacity | 512 GB |
| SSD interface | PCI Express 3.0 |
| NVMe | Yes |
| SSD form factor | M.2 |
| Discrete graphics card | No |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| On-board GPU manufacturer | AMD |
| On-board graphics card model | AMD Radeon Graphics |
| Market positioning | Business |
|---|---|
| Password protection | Yes |
| Trusted Platform Module (TPM) | Yes |
| Product type | Mini PC |
| Built-in speaker(s) | No |
| Ethernet LAN | Yes |
|---|---|
| Ethernet LAN data rates | 10,100,1000,2500 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Antenna type | 2x2 |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| HDMI ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| Combo headphone/mic port | Yes |
| Headphone outputs | 1 |
| DC-in jack | Yes |
| Power supply | 120 W |
|---|
| Chassis type | Mini PC |
|---|---|
| Colour name | ECO Black |
| Volume | 0.6 L |
| Placement supported | Horizontal |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Product colour | Black |
| Operating system architecture | 64-bit |
|---|---|
| Operating system installed | Windows 11 Pro |
| Display included | No |
|---|
| Audio chip | Realtek ALC3251-CG |
|---|---|
| Audio system | High Definition Audio |
| Width | 120 mm |
|---|---|
| Depth | 130 mm |
| Height | 58 mm |
| Weight | 1 kg |
| Certification | BSMI/CB/CE/FCC/UL/CCC/Energy Star/C-Tick/WiFi/RF/VCCI |
|---|
