ASUS ExpertCenter PN42-BBFN1000X1FU PC/workstation barebone Mini PC Black N100
Part number PN42-BBFN1000X1FU
EXPERTCENTER PN42 MINI PC FNLS BB INTEL 12THGEN QUAD CORE N100
Mini PC Black
Built-in processor Intel N100
1 SO-DIMM Maximum internal memory: 16 GB DDR4-SDRAM
SSD M.2
On-board graphics card Intel® UHD Graphics
Ethernet LAN Wi-Fi
Manufacturer
ASUS
Part number
PN42-BBFN1000X1FU
Condition
New
Category
Computer Systems › Barebones Systems
1GPA category
Hardware
Overview

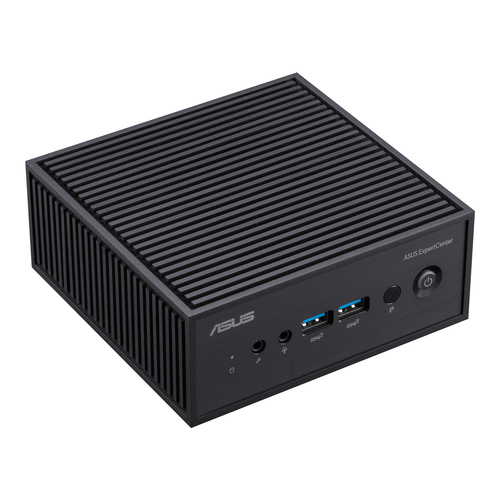

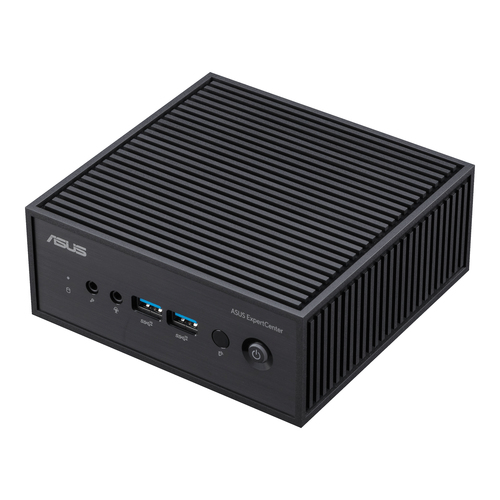

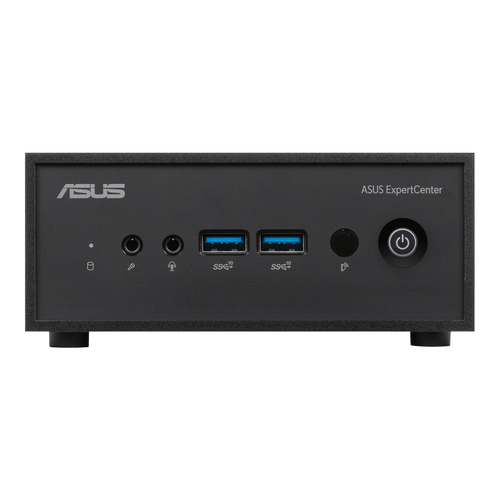

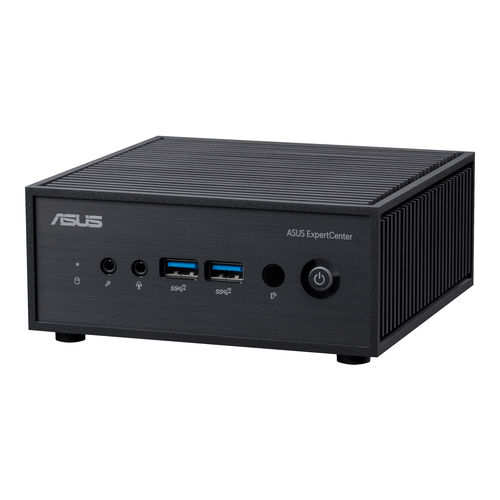

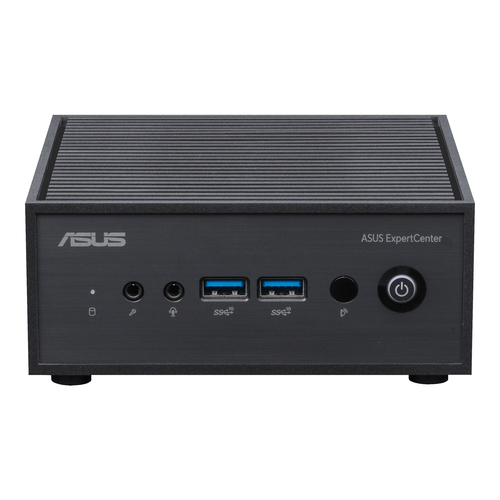

The ultracompact ASUS ExpertCenter PN42 mini PC is powered by an Intel® processor N100 & N200 with Intel UHD Graphics and is designed to easily handle a wide variety of home and business applications. ExpertCenter PN42 can support up to three displays, or two 4K displays, simultaneously for efficient multitasking. Plus, it can be specified with up to two 2.5 Gb Ethernet ports, and offers wide- ranging connectivity with up to seven USB ports plus an additional configurable port for either DisplayPortTM 1.4, VGA, COM, HDMI®, or USB-C® DisplayPort (DP Alt Mode) options. The diminutive size of ExpertCenter PN42 makes it well-suited for spaces where traditional PCs won't fit - from digital signage to small home-office setups.
Specifications
Processor
Processor manufacturer
Intel
Processor model
N100
Processor cores
4
Processor boost frequency
3.4 GHz
Built-in processor
Yes
Processor cache
6 MB
Memory
Memory slots type
SO-DIMM
Number of memory slots
1
Maximum internal memory
16 GB
Supported memory types
DDR4-SDRAM
Storage
Supported storage drive types
SSD
Storage drive sizes supported
M.2
SSD form factor
M.2
Number of storage drives supported
1
Graphics
On-board graphics card
Yes
Graphics card family
Intel
On-board graphics card model
Intel® UHD Graphics
Performance
Audio chip
Realtek ALC3251-CG
Audio
Built-in speaker(s)
No
Network
Top Wi-Fi standard
Wi-Fi 6 (802.11ax)
Wi-Fi standards
Wi-Fi 6 (802.11ax)
Ethernet LAN
Yes
Copper ethernet cabling technology
2500BASE-T
Wi-Fi
Yes
Bluetooth
Yes
Bluetooth version
5.0
Ports & interfaces
USB 2.0 ports quantity
3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
1
DisplayPorts quantity
1
DisplayPort version
1.4
Microphone in
Yes
Combo headphone/mic port
Yes
Ethernet LAN (RJ-45) ports
2
DC-in jack
Yes
Design
Chassis type
Mini PC
Product colour
Black
Cooling type
Active
Product type
Mini PC
Software
Operating system installed
No
Power
Power supply type
External AC adapter
Power supply
65 W
AC adapter output voltage
19 V
AC adapter output current
3.42 A
Weight & dimensions
Width
127.5 mm
Depth
132 mm
Height
57.6 mm
Weight
1 kg
