ASUS PL63-BB70000XT PC/workstation barebone Black i7-1165G7

Overview

Ultraslim and reliable Mini PC powered by 11th Gen Intel® Core™ processors and Intel Iris® Xe Graphics*, up to 64 GB DDR4 RAM, PCIe® Gen 4 x4 M.2 NVMe® SSD, Intel 2.5 Gb LAN, Thunderbolt™ 4*, WiFi 6

Ultracompact mini PC with rich connectivity features, designed for diversified industrial applications

ASUS Mini PC PL63 is a compact mini PC with a space-saving 0.67-liter chassis. It’s powered by an 11th Gen Intel® Core™ processor with Intel Iris® Xe graphics1 to handle commercial tasks with ease. Mini PC PL63 offers PCIe® Gen 4 x4 M.2 NVMe SSD support and features Intel 2.5 Gb LAN, along with dual Thunderbolt™ 4 ports2 that enable quad-display3 support and Power Delivery (PD) input4, allowing PL63 to draw power directly from a display. A robust metal chassis ensures durability and reliability, even in the harsh environments, making it ideal for retail, enterprise and educational applications.

Design

Compact, space-saving design for versatile deployment

The robust and ultra-compact ASUS Mini PC PL63 easily blends into any retail, office, medical or educational environment. Its lightweight 0.67-liter chassis measures just 167 x 120 x 34 mm, so it can be placed almost anywhere ― or it can be VESA-mounted on the back of a display for a space-saving, all-in-one solution.

Expandability

Flexible, high-speed connectivity

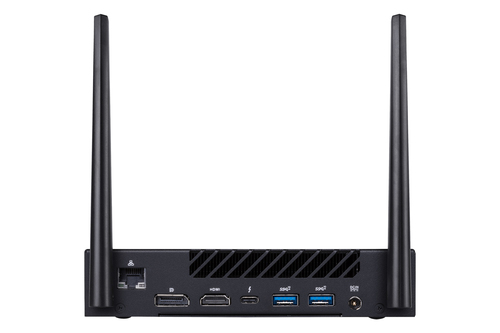

Mini PC PL63 offers comprehensive connectivity with a multitude of ports, including two Thunderbolt™ 4 ports2 and one 2.5 Gb Ethernet port.

Visibility

Stunning 8K visuals or quad-display support

Mini PC PL63 can support one 8K5 at 60 Hz display or four 4K3 displays simultaneously via HDMI®, DisplayPort™ and the two Thunderbolt™ 4 ports2. This stunning visual performance makes it excellent for digital signage, billboard and advertising applications.

Performance

Small and powerful

11th Gen Intel Core processors deliver outstanding performance and smooth computing power, while integrated Intel Iris® Xe graphics1 enhance fast-moving visuals to enable Mini PC PL63 to tackle intensive business operation with ease.

Performance

Improved Cooling

Mini PC PL63 has unique cooling features, including a large fan to boost airflow, a new thermal module with a heat pipe for better heat dissipation, and an aluminum heatsink for more efficient conductivity. In addition, the exclusive ASUS Anti-Dust Self-Cleaning System effectively removes dust to maintain a cleaner heatsink and prolong the lifecycle of the product. A cleaner system also leads to quieter fan performance.

Speedy PCIe 4.0 support

Mini PC PL63 can accommodate PCIe Gen 4.0 x4 M.2 SSD6, giving users lower latency and double the data transfer rate of the previous PCIe 3.0 standard.

Hyper-fast 2.5 Gbps networking

The next-gen 2.5GBASE-T (2.5G) networking technology delivers ultrafast networking speeds of up to 2.5 Gbps6 for desktop PCs7.

Advanced Thunderbolt 4 connectivity

The latest Thunderbolt 42 standard brings speeds of up to 40 Gbps6 and DisplayPort connectivity to USB-C. It’s even compatible with the USB4 standard, making it the fastest, most versatile connection to any dock, display or storage device3.

WiFi 6 with external antenna design

WiFi 6 provides a superior networking experience with reduced data latency, higher capacity and faster speeds compared to previous standards. Additionally, its wider range and 2.4 GHz support make it ideal for Internet of Things (IoT) devices. The external antenna of Mini PC PL63 also ensures stable connections.

Power Delivery technology

With USB Power Delivery4 support, Mini PC PL63 allows users to create convenient one-cable PC solution by drawing power from the monitor, eliminating the need for a separate power adapter.

Energy savings

Reduce environmental impact while lowering operating costs
