ASUS ExpertCenter PB64-SYS5A15PETH0 Intel Core Ultra 5 235 16 GB DDR5-SDRAM 512 GB SSD Windows 11 Pro Mini PC Black
Part number PB64-SYS5A15PETH0
ASUS PB64 FULL SYSTEM MINI PC WITH INTEL CORE ULTRA 5 235 PROCESSOR, 16GB DDR5-5
Windows 11 Pro 64-bit
Intel Core Ultra 5 235 (24MB Cache)
16GB (5600MHz) DDR5-SDRAM & 512GB SSD
Manufacturer
ASUS
Part number
PB64-SYS5A15PETH0
Condition
New
Category
Computer Systems › Desktop Computers
1GPA category
Hardware
Overview

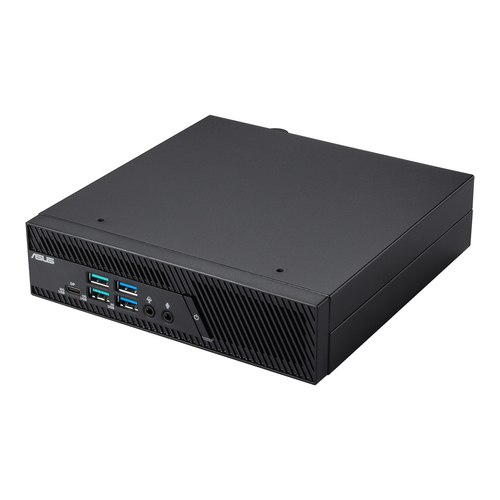

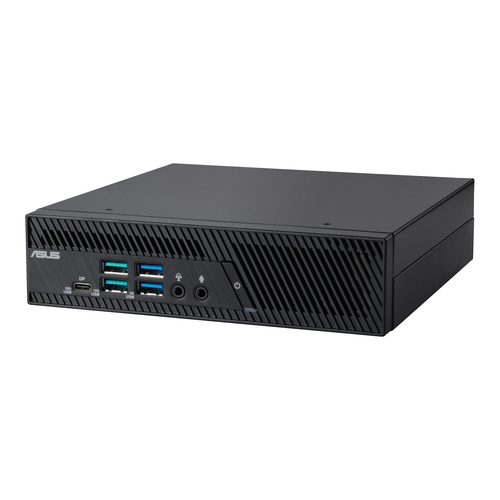

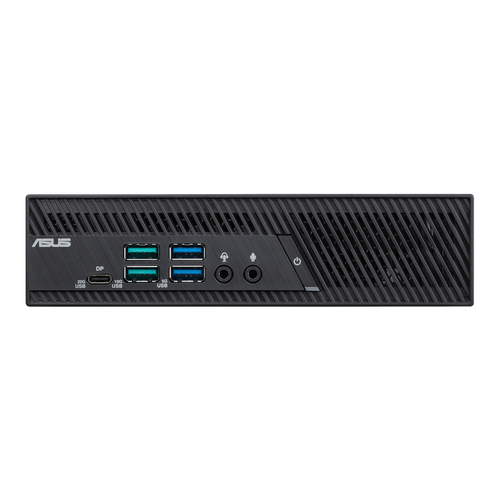

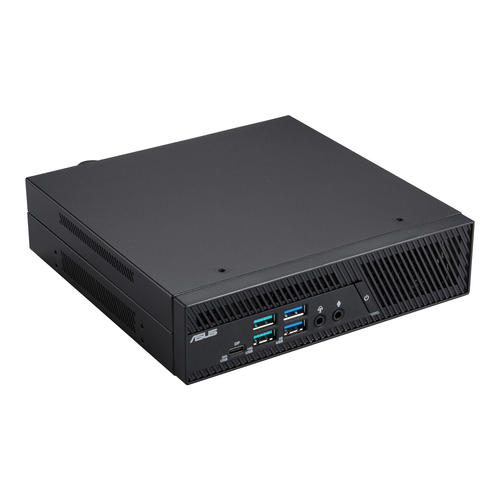

ASUS ExpertCenter PB64
Solid Reliability for Businesses
The ASUS ExpertCenter PB64 mini PC is a compact 1.35 Liter powerhouse designed for demanding computing tasks. Powered by the latest Intel® Core™Ultra processors (Series 2) with Intel® Graphics, it delivers desktop-grade performance in a small form factor. With dual PCIe Gen4 SSD slots and support for up to DDR5-6400 memory, the PB64 ensures lightning-fast data transfer. Its versatility is enhanced by configurable ports, eight USB ports, a toolless design, and triple storage options— making it an ideal solution for users who need both performance and flexibility in a mini PC
Specifications
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 5
Processor generation
Intel Core Ultra (Series 2)
Processor model
235
Processor cores
14
Processor threads
14
Processor boost frequency
5 GHz
Performance cores
6
Efficient cores
8
Performance-core Max Turbo Frequency
5 GHz
Efficient-core Max Turbo Frequency
4.4 GHz
Performance-core base frequency
3.4 GHz
Efficient-core base frequency
2.9 GHz
Processor cache
24 MB
Processor cache type
Smart Cache
Processor base power
65 W
Maximum turbo power
121 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
27 TOPs
NPU performance up to
13 TOPs
GPU performance up to
6 TOPs
Memory
Internal memory
16 GB
Maximum internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory slots
2x SO-DIMM
Memory clock speed
5600 MHz
Memory channels
Dual-channel
Storage
Total storage capacity
512 GB
Storage media
SSD
Optical drive type
No
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD capacity
512 GB
SSD interface
PCI Express 4.0
NVMe
Yes
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® Graphics
On-board graphics card model
Intel® Graphics
Performance
Motherboard chipset
Intel B860
Product type
Mini PC
Built-in speaker(s)
Yes
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000,2500 Mbit/s
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Bluetooth
Yes
Bluetooth version
5.4

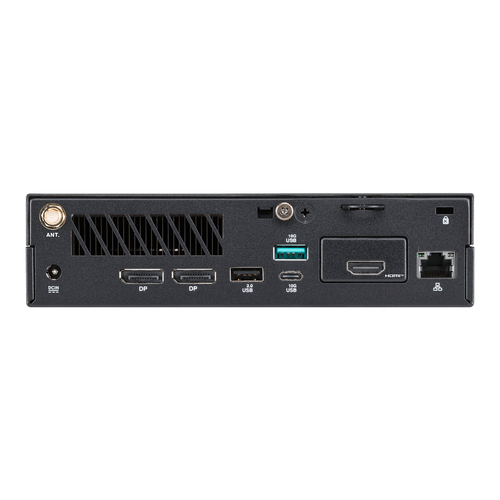

Ports & interfaces
USB 2.0 ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
USB4 Gen 2x2 ports quantity
1
DisplayPorts quantity
2
DisplayPort version
1.4
Ethernet LAN (RJ-45) ports
1
Combo headphone/mic port
Yes
Headphone outputs
1
Line-out
Yes
Microphone in
Yes
Power
Power supply
120 W
Design
Chassis type
Mini PC
Colour name
Black
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Software
Operating system architecture
64-bit
Operating system installed
Windows 11 Pro
Display
Display included
No
Weight & dimensions
Width
175 mm
Depth
175 mm
Height
44.2 mm
Weight
1.2 kg
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
