Overview
Stunning Contrast from Production to Post

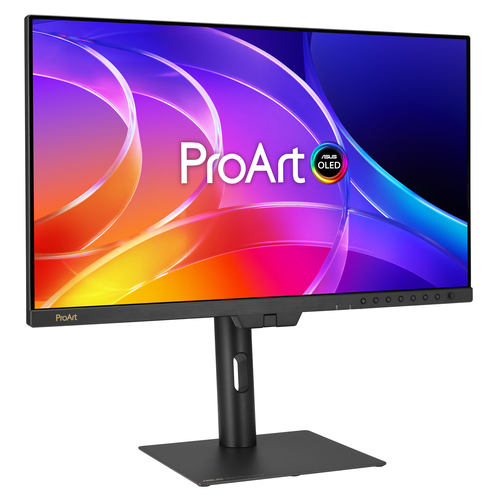

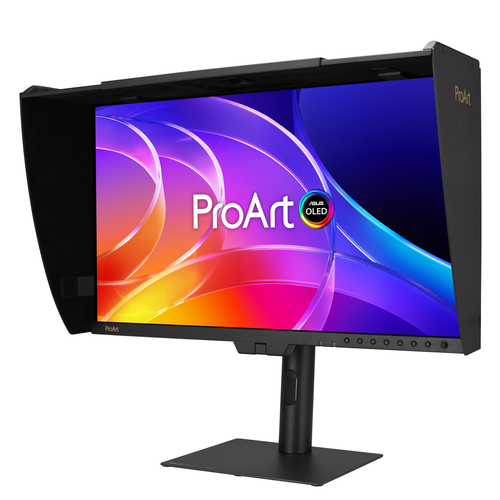

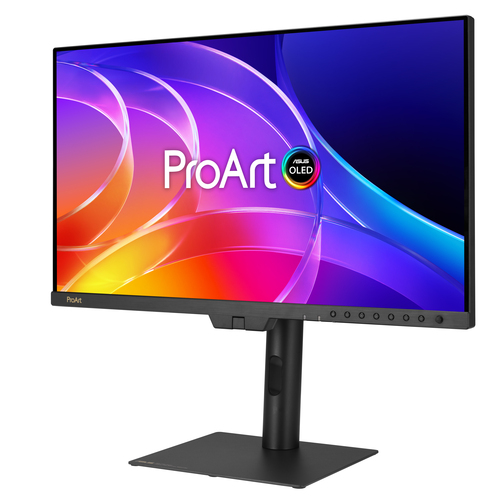

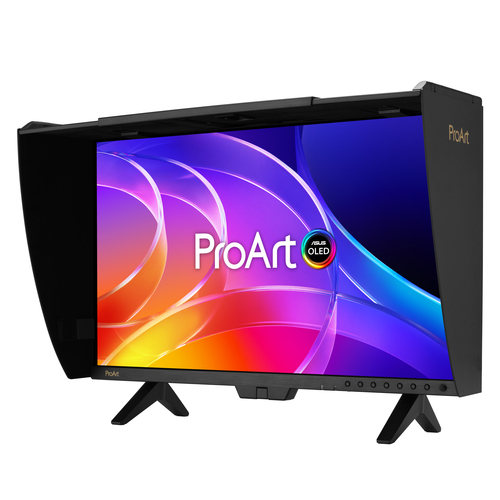

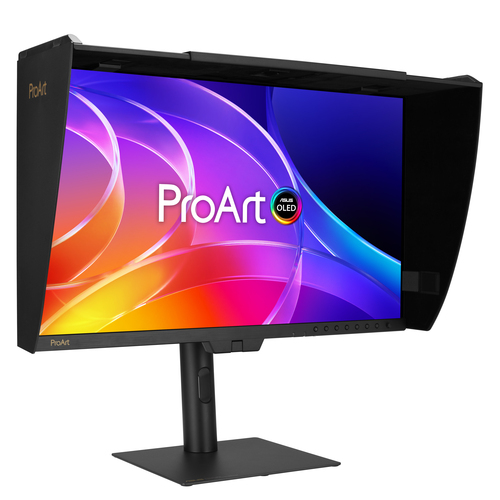

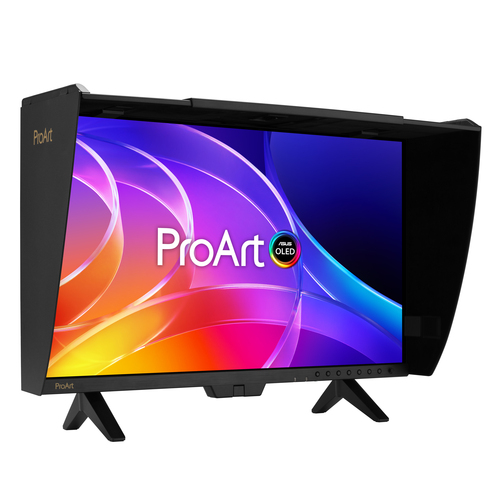

Designed for content creators, the ProArt Display OLED PA27USD is a professional monitor that features a cutting-edge 26.5-inch 4K HDR QD-OLED panel with 1000-nits brightness and 99% DCI-P3 coverage to deliver highly-accurate colors and exceptional visual detail. A built-in motorized flip colorimeter enables auto- and self-calibration for consistent, professional-grade color accuracy, and a 240Hz refresh rate allows creators to work on color-critical artwork as well as performance-driven game development — all on one monitor. In addition to the standard I/O interfaces, the PA27USD supports 12G-SDI connectivity to receive uncompressed video signals up to 4K@60Hz.
Specifications
Display
| Display diagonal | 67.3 cm (26.5") |
|---|
| Display resolution | 3840 x 2160 pixels |
|---|
| HD type | 4K Ultra HD |
|---|
| Native aspect ratio | 16:9 |
|---|
| Display technology | QD-OLED |
|---|
| Panel type | OLED |
|---|
| Touchscreen | No |
|---|
| Display brightness (peak) | 1000 cd/m² |
|---|
| Display brightness (typical) | 250 cd/m² |
|---|
| Response time | 0.1 ms |
|---|
| Response time measurement type | GTG (Gray to Gray) |
|---|
| Anti-glare screen | Yes |
|---|
| Screen shape | Flat |
|---|
| Contrast ratio (typical) | 1500000:1 |
|---|
| Maximum refresh rate | 240 Hz |
|---|
| Viewing angle, horizontal | 178° |
|---|
| Viewing angle, vertical | 178° |
|---|
| Display number of colours | 1.073 billion colours |
|---|
| Pixel pitch | 0.155 x 0.155 mm |
|---|
| Viewable size, horizontal | 59 cm |
|---|
| Viewable size, vertical | 33.3 cm |
|---|
| Digital horizontal frequency | 15 - 583 kHz |
|---|
| Digital vertical frequency | 48 - 240 Hz |
|---|
| High Dynamic Range (HDR) supported | Yes |
|---|
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10), Hybrid Log-Gamma (HLG), Dolby Vision, DisplayHDR 400 True Black |
|---|
| Colour depth | 10 bit |
|---|
| Colour gamut standard | DCI-P3, sRGB |
|---|
| sRGB coverage (typical) | 100% |
|---|
| DCI-P3 coverage | 99% |
|---|
Performance
| NVIDIA G-SYNC | No |
|---|
| AMD FreeSync | No |
|---|
| VESA Adaptive Sync support | Yes |
|---|
| Flicker-free technology | Yes |
|---|
| Low Blue Light technology | Yes |
|---|
Multimedia
| Number of speakers | 2 |
|---|
| RMS rated power | 4 W |
|---|
| Built-in speaker(s) | Yes |
|---|
| Built-in camera | No |
|---|
Design
| Market positioning | Graphics design |
|---|
| Product colour | Black |
|---|
| Detachable stand | Yes |
|---|
| Feet colour | Black |
|---|
Ports & interfaces
| Built-in USB hub | Yes |
|---|
| USB hub version | 3.2 Gen 2 (3.1 Gen 2) |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 96 W |
|---|
| HDMI | Yes |
|---|
| HDMI ports quantity | 2 |
|---|
| HDMI version | 2.1 |
|---|
| DisplayPorts quantity | 1 |
|---|
| DisplayPort version | 2.1 |
|---|
| Thunderbolt 4 ports quantity | 2 |
|---|
| Headphone out | Yes |
|---|
| Headphone outputs | 1 |
|---|
| Headphone connectivity | 3.5 mm |
|---|
| Built-in KVM switch | Yes |
|---|
| HDCP | Yes |
|---|
| HDCP version | 2.3 |
|---|
Ergonomics
| VESA mounting | Yes |
|---|
| Panel mounting interface | 100 x 100 mm |
|---|
| Wall mountable | Yes |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|
| Height adjustment | Yes |
|---|
| Adjustable height (max) | 13 cm |
|---|
| Pivot | Yes |
|---|
| Pivot angle | -90 - 90° |
|---|
| Swivelling | Yes |
|---|
| Swivel angle range | -30 - 30° |
|---|
| Tilt adjustment | Yes |
|---|
| Tilt angle range | -5 - 23° |
|---|
Power
| Energy efficiency class (SDR) | G |
|---|
| Energy efficiency class (HDR) | G |
|---|
| Energy consumption (SDR) per 1000 hours | 45 kWh |
|---|
| Energy consumption (HDR) per 1000 hours | 50 kWh |
|---|
| Power consumption (typical) | 32 W |
|---|
| Power consumption (standby) | 0.5 W |
|---|
| Power consumption (off) | 0.3 W |
|---|
| Power consumption (PowerSave) | 0.5 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Power supply type | Internal |
|---|
| Energy efficiency scale | A to G |
|---|
Weight & dimensions
| Width (with stand) | 610.3 mm |
|---|
| Depth (with stand) | 239.7 mm |
|---|
| Height (with stand) | 584.9 mm |
|---|
| Weight (with stand) | 7.5 kg |
|---|
| Width (without stand) | 610.3 mm |
|---|
| Depth (without stand) | 596 mm |
|---|
| Height (without stand) | 378.8 mm |
|---|
| Weight (without stand) | 4.96 kg |
|---|
Packaging data
| Package width | 884 mm |
|---|
| Package depth | 196 mm |
|---|
| Package height | 685 mm |
|---|
| Package weight | 15.1 kg |
|---|
| Package type | Box |
|---|
Packaging content
| Stand included | Yes |
|---|
Other features
| Certification | Mac Compliance
FSC MIX
Calman Ready
VESA DisplayHDR 400 True Black
TÜV Low Blue Light
TÜV Flicker-free
EPEAT Silver
Energy Star |
|---|
Technical details
| Native refresh rate | 60 Hz |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
