Overview
REDEFINING YOUR 5K DREAM

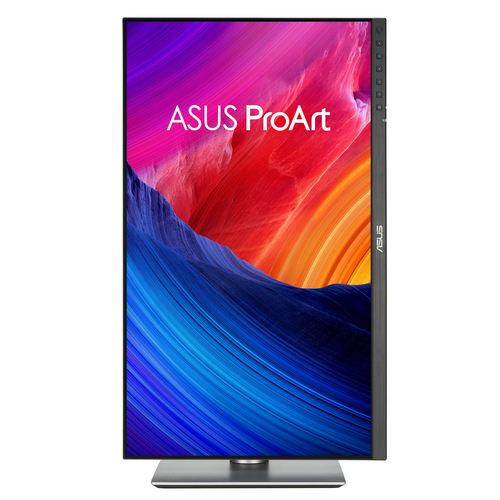

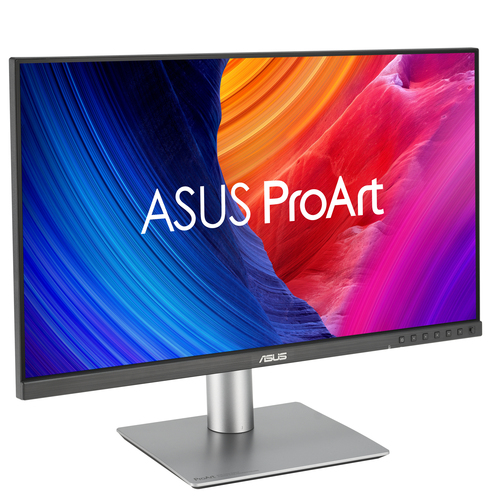

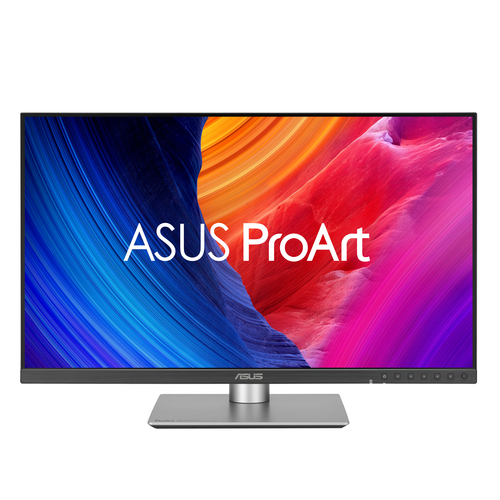

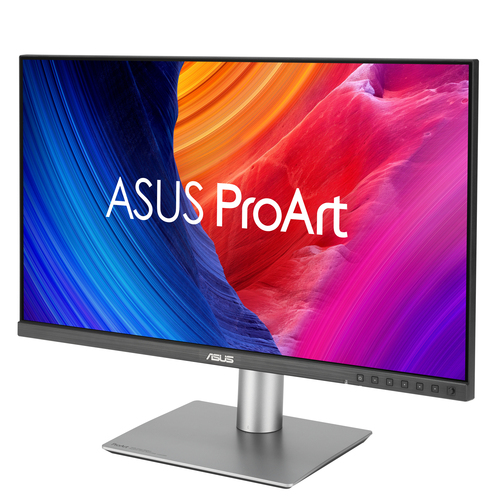

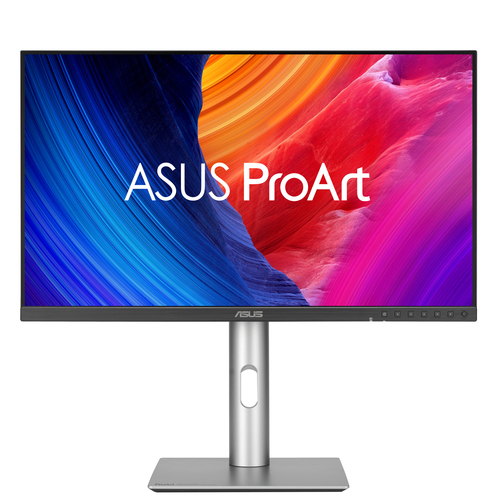

ProArt Display PA27JCV is a 27-inch 5K HDR monitor designed for professional content creators. This Calman Verified display boasts a wide gamut with 99% DCI-P3, 100% sRGB and 95% Adobe RGB coverage, and it’s factory calibrated to Delta E
Specifications
Display
| Display diagonal | 68.6 cm (27") |
|---|
| Display resolution | 5120 x 2880 pixels |
|---|
| HD type | 5K Ultra HD |
|---|
| Native aspect ratio | 16:9 |
|---|
| Display technology | LCD |
|---|
| Panel type | IPS |
|---|
| LED backlight | Yes |
|---|
| Touchscreen | No |
|---|
| Display brightness (peak) | 500 cd/m² |
|---|
| Display brightness (typical) | 400 cd/m² |
|---|
| Response time | 5 ms |
|---|
| Response time measurement type | GTG (Gray to Gray) |
|---|
| Anti-glare screen | Yes |
|---|
| Screen shape | Flat |
|---|
| Contrast ratio (typical) | 1500:1 |
|---|
| Contrast ratio (dynamic) | 3000:1 |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| Viewing angle, horizontal | 178° |
|---|
| Viewing angle, vertical | 178° |
|---|
| Display number of colours | 1.073 billion colours |
|---|
| Pixel pitch | 0.116 x 0.116 mm |
|---|
| Pixel density | 218 ppi |
|---|
| Viewable size, horizontal | 59.7 cm |
|---|
| Viewable size, vertical | 33.6 cm |
|---|
| Digital horizontal frequency | 15 - 135 kHz |
|---|
| Digital vertical frequency | 48 - 60 Hz |
|---|
| Display diagonal (metric) | 69 cm |
|---|
| High Dynamic Range (HDR) supported | Yes |
|---|
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
|---|
| Colour gamut standard | Adobe RGB, DCI-P3, Rec. 2020, Rec. 709, sRGB |
|---|
Performance
| NVIDIA G-SYNC | No |
|---|
| AMD FreeSync | No |
|---|
| VESA Adaptive Sync support | Yes |
|---|
| Flicker-free technology | Yes |
|---|
| Low Blue Light technology | Yes |
|---|
Multimedia
| Number of speakers | 2 |
|---|
| RMS rated power | 4 W |
|---|
| Built-in speaker(s) | Yes |
|---|
| Built-in camera | No |
|---|
Design
| Market positioning | Professional |
|---|
| Product colour | Black |
|---|
| Feet colour | Silver |
|---|
Ports & interfaces
| Built-in USB hub | Yes |
|---|
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
|---|
| Number of USB Type-C upstream ports quantity | 1 |
|---|
| USB Type-A downstream ports quantity | 3 |
|---|
| USB Type-C downstream ports quantity | 1 |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 96 W |
|---|
| HDMI | Yes |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.1 |
|---|
| DisplayPorts quantity | 1 |
|---|
| DisplayPort version | 1.4 |
|---|
| Headphone out | Yes |
|---|
| Headphone outputs | 1 |
|---|
| HDCP | Yes |
|---|
| HDCP version | 2.2 |
|---|
Ergonomics
| VESA mounting | Yes |
|---|
| Panel mounting interface | 100 x 100 mm |
|---|
| Wall mountable | Yes |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|

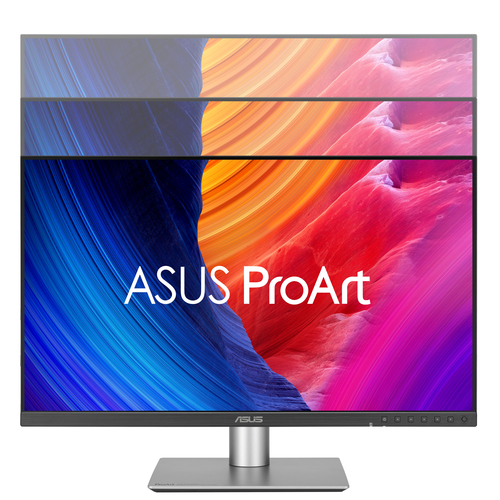

| Height adjustment | Yes |
|---|
| Adjustable height (max) | 13 cm |
|---|
| Pivot | Yes |
|---|
| Pivot angle | -90 - 90° |
|---|
| Swivelling | Yes |
|---|
| Swivel angle range | -30 - 30° |
|---|
| Tilt adjustment | Yes |
|---|
| Tilt angle range | -5 - 23° |
|---|
| Picture-in-Picture | Yes |
|---|
Power
| Energy efficiency class (SDR) | F |
|---|
| Energy efficiency class (HDR) | G |
|---|
| Energy consumption (SDR) per 1000 hours | 26 kWh |
|---|
| Energy consumption (HDR) per 1000 hours | 34 kWh |
|---|
| Power consumption (typical) | 31.04 W |
|---|
| Power consumption (standby) | 0.5 W |
|---|
| Power consumption (off) | 0.3 W |
|---|
| Power consumption (PowerSave) | 0.5 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Power supply type | Internal |
|---|
| Energy efficiency scale | A to G |
|---|
Weight & dimensions
| Width (with stand) | 612.2 mm |
|---|
| Depth (with stand) | 215 mm |
|---|
| Height (with stand) | 538.1 mm |
|---|
| Weight (with stand) | 5.91 kg |
|---|
| Width (without stand) | 612.2 mm |
|---|
| Depth (without stand) | 44.1 mm |
|---|
| Height (without stand) | 362.9 mm |
|---|
| Weight (without stand) | 4.14 kg |
|---|
Packaging data
| Package width | 691 mm |
|---|
| Package depth | 138 mm |
|---|
| Package height | 427 mm |
|---|
| Package weight | 8.73 kg |
|---|
| Package type | Box |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR, EPEAT Gold, Forest Stewardship Council (FSC) Mix |
|---|
Other features
| Country of origin | China |
|---|
Technical details
| Native refresh rate | 60 Hz |
|---|
Logistics data
| Customs product code (TARIC) | 8528529100 |
|---|
