Overview

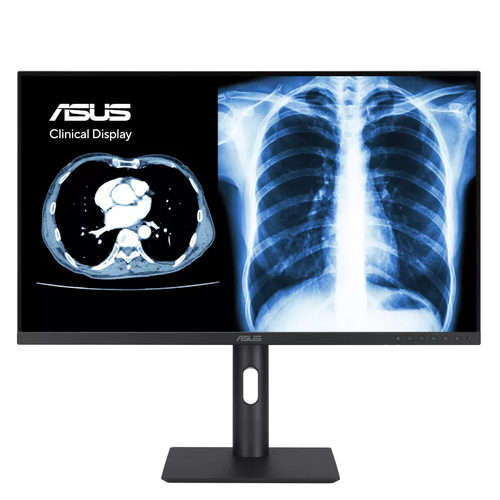

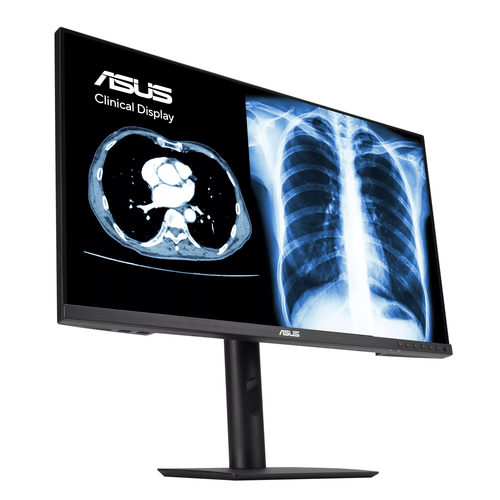

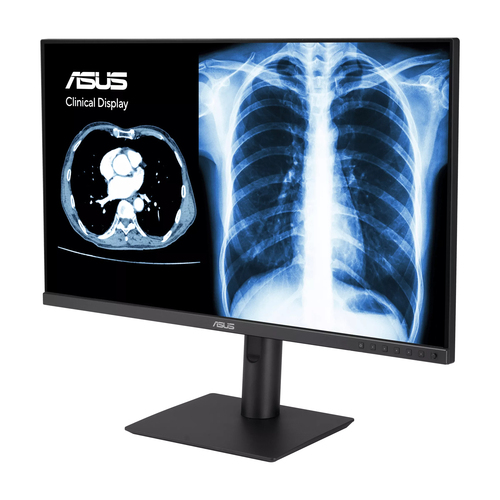

ASUS MH2741A
Clinical Monitor
ASUS Clinical Displays provides comprehensive line-up targeting for every HealthCare institution’s needs. ASUS Clinical Displays are factory calibrated with DICOM® Part 14 GSDF (Grayscale Standard Display Function) compliance to ensure visual accuracy and consistency in finest details. ASUS MH2741A features 27-inch 3.6MP Anti-Glare, Low-Reflection (AGLR) IPS panel, ASUS exclusive Hardware Calibration Technology supports auto calibration to keep DICOM long term accuracy. ASUS Clinical Displays delivers high-performance, precise and stable capabilities to fit any scenario.
Specifications
Display
| Display diagonal | 68.6 cm (27") |
|---|
| Display resolution | 2560 x 1440 pixels |
|---|
| HD type | Quad HD |
|---|
| Native aspect ratio | 16:9 |
|---|
| Display technology | LCD |
|---|
| Panel type | IPS |
|---|
| LED backlight | Yes |
|---|
| Touchscreen | No |
|---|
| Display brightness (typical) | 350 cd/m² |
|---|
| Response time | 5 ms |
|---|
| Response time measurement type | GTG (Gray to Gray) |
|---|
| Anti-glare screen | Yes |
|---|
| Screen shape | Flat |
|---|
| Contrast ratio (typical) | 900:1 |
|---|
| Maximum refresh rate | 75 Hz |
|---|
| Viewing angle, horizontal | 178° |
|---|
| Viewing angle, vertical | 178° |
|---|
| Display number of colours | 16.7 million colours |
|---|
| Pixel pitch | 0.233 x 0.233 mm |
|---|
| Viewable size, horizontal | 59.7 cm |
|---|
| Viewable size, vertical | 33.6 cm |
|---|
Performance
| Flicker-free technology | Yes |
|---|
| Low Blue Light technology | Yes |
|---|
Multimedia
| Built-in speaker(s) | No |
|---|
| Built-in camera | No |
|---|
Design
| Market positioning | Medical |
|---|
| Product colour | Black |
|---|
| Feet colour | Black |
|---|

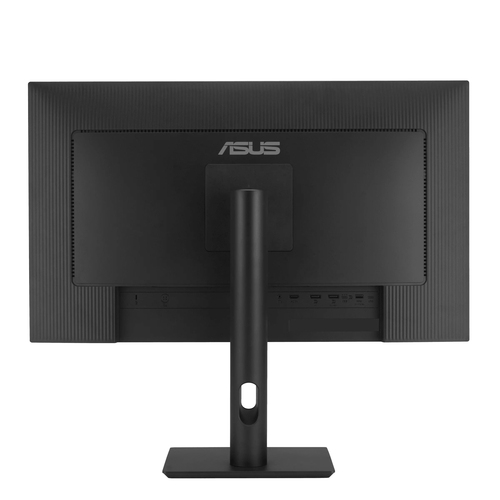

Ports & interfaces
| Built-in USB hub | Yes |
|---|
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
|---|
| USB Type-A downstream ports quantity | 3 |
|---|
| USB Type-C downstream ports quantity | 1 |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| USB Power Delivery up to | 15 W |
|---|
| HDMI | Yes |
|---|
| HDMI ports quantity | 1 |
|---|
| HDMI version | 2.0 |
|---|
| DisplayPorts quantity | 2 |
|---|
| DisplayPort version | 1.4 |
|---|
| Headphone out | Yes |
|---|
| Headphone outputs | 1 |
|---|
| HDCP | Yes |
|---|
| HDCP version | 2.2 |
|---|
Ergonomics
| VESA mounting | Yes |
|---|
| Panel mounting interface | 100 x 100 mm |
|---|
| Wall mountable | Yes |
|---|
| Cable lock slot | Yes |
|---|
| Cable lock slot type | Kensington |
|---|

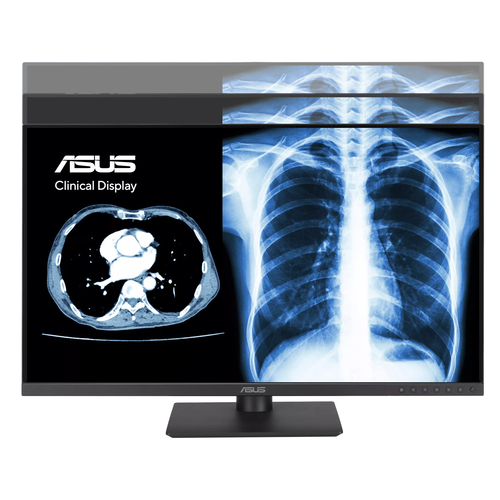

| Height adjustment | Yes |
|---|
| Adjustable height (max) | 13 cm |
|---|

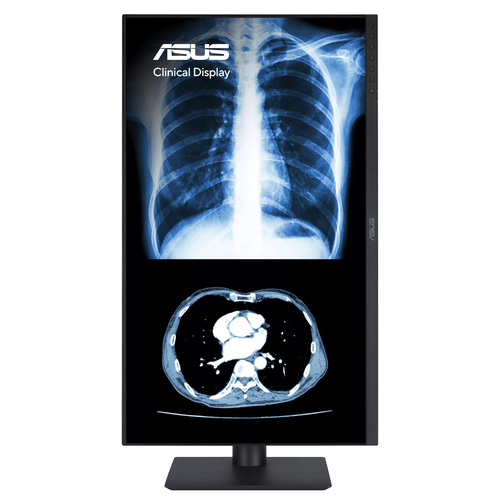

| Pivot | Yes |
|---|
| Pivot angle | -90 - 90° |
|---|
| Swivelling | Yes |
|---|
| Swivel angle range | -30 - 30° |
|---|
| Tilt adjustment | Yes |
|---|
| Tilt angle range | -5 - 23° |
|---|
| Picture-in-Picture | Yes |
|---|
Power
| Energy efficiency class (SDR) | D |
|---|
| Energy efficiency class (HDR) | F |
|---|
| Power consumption (typical) | 13 W |
|---|
| Power consumption (standby) | 0.5 W |
|---|
| Power consumption (off) | 0.3 W |
|---|
| Power consumption (PowerSave) | 0.5 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Power supply type | External |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Operating relative humidity (H-H) | 5 - 90% |
|---|
Weight & dimensions
| Width (with stand) | 613.3 mm |
|---|
| Depth (with stand) | 197.2 mm |
|---|
| Height (with stand) | 536.7 mm |
|---|
| Weight (with stand) | 6.7 kg |
|---|
| Width (without stand) | 613.3 mm |
|---|
| Depth (without stand) | 44.9 mm |
|---|
| Height (without stand) | 363.4 mm |
|---|
| Weight (without stand) | 5 kg |
|---|
Packaging data
| Package width | 695 mm |
|---|
| Package depth | 133 mm |
|---|
| Package height | 421 mm |
|---|
| Package weight | 9.3 kg |
|---|
| Package type | Box |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC) Mix |
|---|
Other features
| Brand specific technologies | Eye Care+ |
|---|
| Hardware calibration | Yes |
|---|
Technical details
| Native refresh rate | 60 Hz |
|---|
