Overview

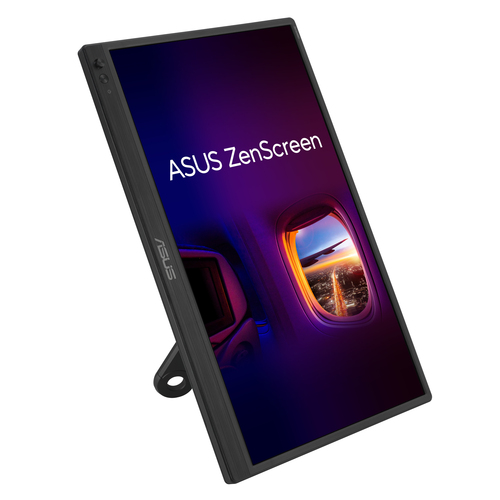

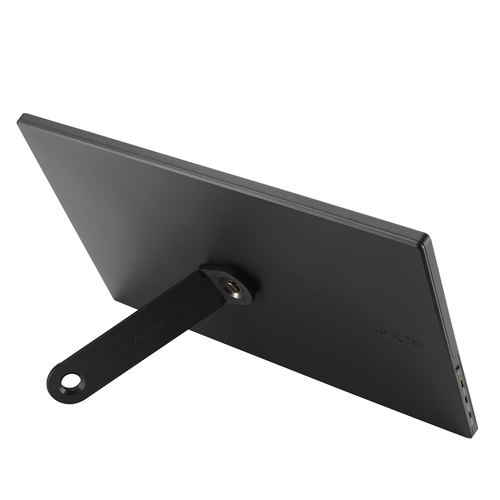

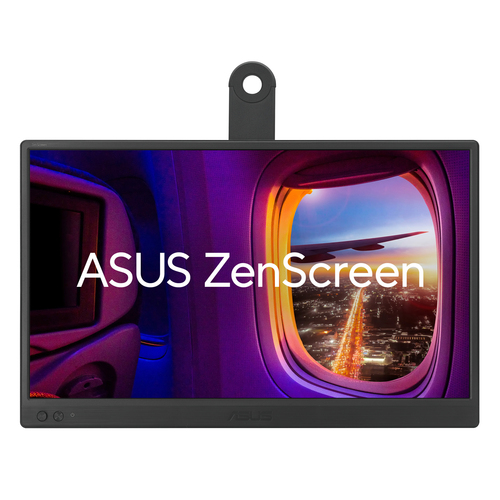

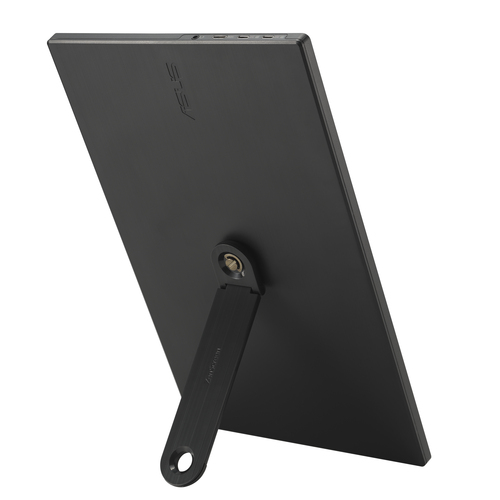

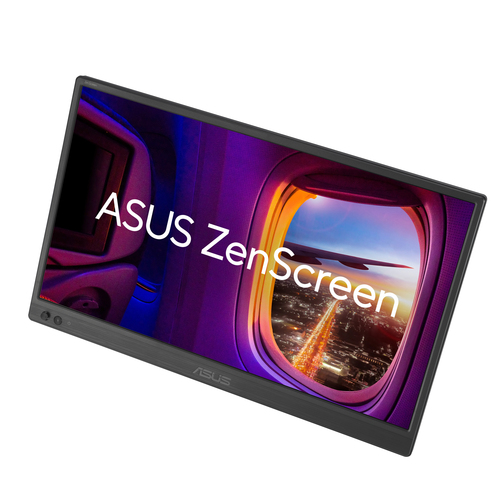

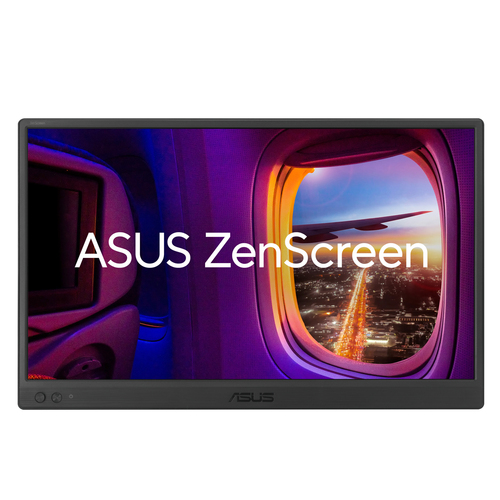

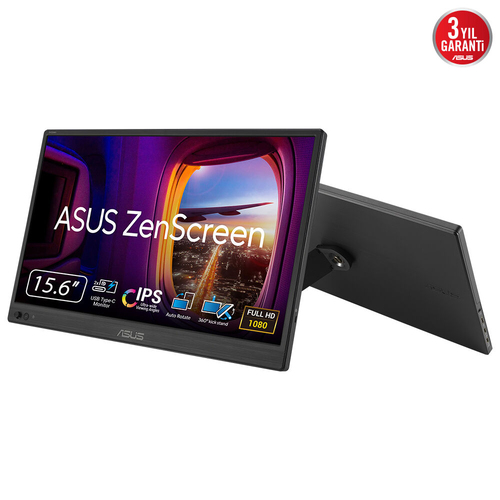

ASUS ZenScreen MB169CK Portable USB Monitor- 16 inch (15.6 inch viewable), Full HD, IPS, dual USB Type-C, Flicker Free, Blue Light Filter, Anti-glare surface, 360° kickstand
Specifications
Display
| Display diagonal | 39.6 cm (15.6") |
|---|
| Display resolution | 1920 x 1080 pixels |
|---|
| HD type | Full HD |
|---|
| Native aspect ratio | 16:9 |
|---|
| Display technology | LCD |
|---|
| Panel type | IPS |
|---|
| LED backlight | Yes |
|---|
| Touchscreen | No |
|---|
| Display brightness (typical) | 250 cd/m² |
|---|
| Response time | 5 ms |
|---|
| Response time measurement type | GTG (Gray to Gray) |
|---|
| Anti-glare screen | Yes |
|---|
| Screen shape | Flat |
|---|
| Contrast ratio (typical) | 800:1 |
|---|
| Maximum refresh rate | 60 Hz |
|---|
| Viewing angle, horizontal | 178° |
|---|
| Viewing angle, vertical | 178° |
|---|
| Display number of colours | 16.7 million colours |
|---|
| Pixel pitch | 0.179 x 0.179 mm |
|---|
| Viewable size, horizontal | 34.4 cm |
|---|
| Viewable size, vertical | 19.4 cm |
|---|
| Digital horizontal frequency | 24 - 83 kHz |
|---|
| Digital vertical frequency | 50 - 60 Hz |
|---|
| Display diagonal (metric) | 40 cm |
|---|
| High Dynamic Range (HDR) supported | Yes |
|---|
Performance
| NVIDIA G-SYNC | No |
|---|
| AMD FreeSync | No |
|---|
| Flicker-free technology | Yes |
|---|
| Low Blue Light technology | Yes |
|---|
| Game mode | Yes |
|---|
Multimedia
| Built-in speaker(s) | No |
|---|
| Built-in camera | No |
|---|
Design
| Market positioning | Consumer |
|---|
| Product colour | Black |
|---|
Ports & interfaces
| I/O ports | Thunderbolt 3 N/A;USB-C x 2 (DP Alt Mode);DisplayPort 1.1 N/A;DisplayPort 1.2 N/A;DisplayPort 2.1 N/A;DisplayPort 1.4 N/A;DisplayPort 1.4 DSC N/A;Mini DisplayPort N/A;HDMI(v2.1) N/A;HDMI(v2.0) N/A;HDMI(v1.3) N/A;HDMI(v1.4) N/A;Micro HDMI N/A;Mini HDMI x 1;DVI N/A;Dual-Link DVI N/A;VGA N/A;USB Hub : N/A;Earphone Jack : N/A;SPDIF Out (Optical Digital Audio Out) : N/A;PC Audio Input : N/A;USB-C Power Delivery : N/A;USB 3.2 (Signal) : N/A |
|---|
| Built-in USB hub | Yes |
|---|
| USB Type-C downstream ports quantity | 2 |
|---|
| USB Type-C DisplayPort Alternate Mode | Yes |
|---|
| USB Power Delivery (USB PD) | Yes |
|---|
| HDMI | Yes |
|---|
| HDMI version | 1.4 |
|---|
| DisplayPort version | 1.2 |
|---|
| Headphone out | No |
|---|
| HDCP | Yes |
|---|
| HDCP version | 1.4 |
|---|
Ergonomics
| VESA mounting | No |
|---|
| Cable lock slot | No |
|---|
| Height adjustment | No |
|---|
Power
| Energy efficiency class (SDR) | C |
|---|
| Energy efficiency class (HDR) | Not available |
|---|
| Energy consumption (SDR) per 1000 hours | 7 kWh |
|---|
| Power consumption (typical) | 7.64 W |
|---|
| Power consumption (standby) | 0.5 W |
|---|
| Power consumption (off) | 0.3 W |
|---|
| Power consumption (PowerSave) | 0.5 W |
|---|
| AC input voltage | 100 - 240 V |
|---|
| AC input frequency | 50/60 Hz |
|---|
| Power supply type | Internal |
|---|
| Energy efficiency scale | A to G |
|---|
Weight & dimensions
| Width (without stand) | 360 mm |
|---|
| Depth (without stand) | 12 mm |
|---|
| Height (without stand) | 226 mm |
|---|
| Weight (without stand) | 780 g |
|---|
Packaging data
| Package width | 434 mm |
|---|
| Package depth | 76 mm |
|---|
| Package height | 290 mm |
|---|
| Package weight | 1.7 kg |
|---|
| Package type | Box |
|---|
Sustainability
| Sustainability certificates | ENERGY STAR, Forest Stewardship Council (FSC) Mix |
|---|
Other features
| Brand specific technologies | SPLENDID |
|---|
| Display viewable area (HxV) | 344.16 x 193.59 mm |
|---|
Technical details
| Native refresh rate | 60 Hz |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
