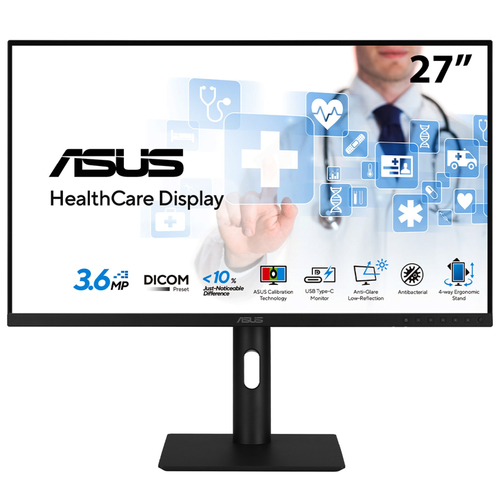

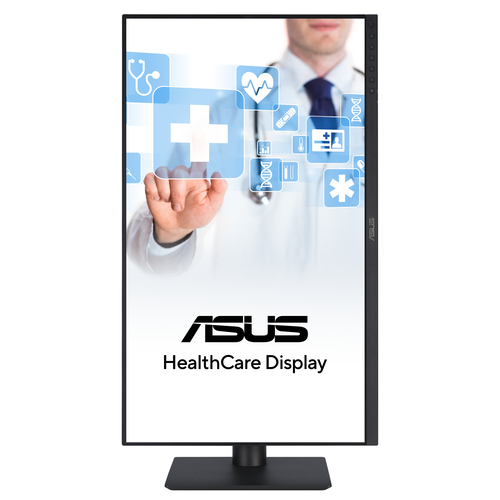

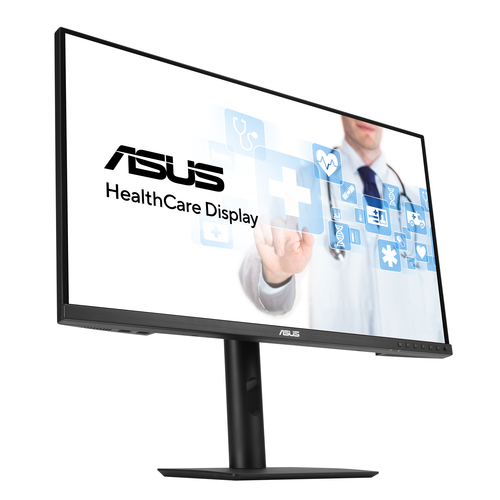

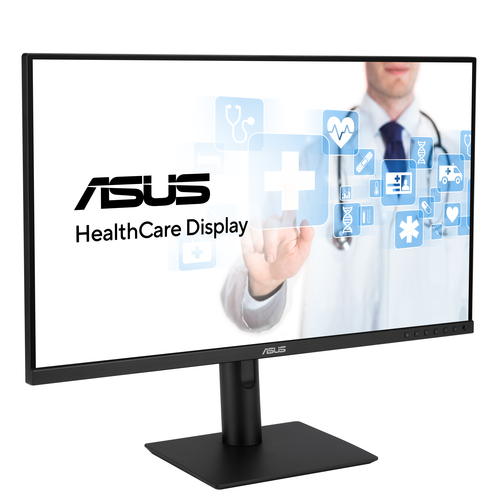

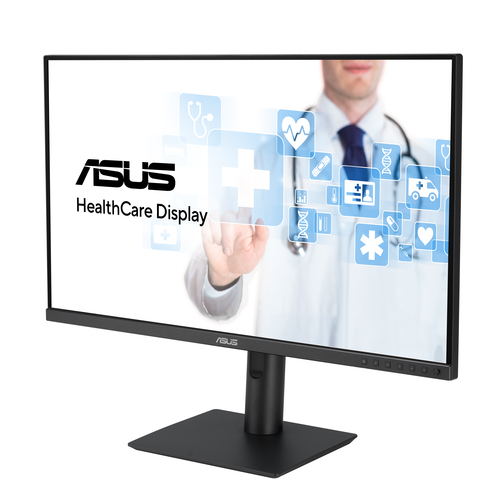

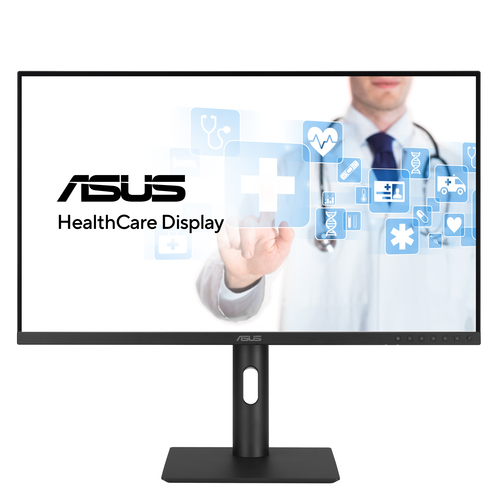

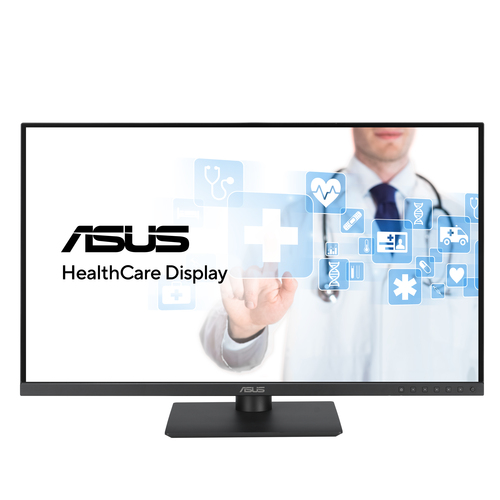

ASUS HA2741A computer monitor 68.6 cm (27") 2560 x 1440 pixels Quad HD LCD Black
Part number HA2741A
HA2741A
- 27-inch 3.6MP (2560 x 1440) frameless design with IPS 178° wide viewing angle panel
- Anti-Glare, Low-Reflection (AGLR) with Eye Care+ to protect eyes from long time use
- Compliant with DICOM Part 14 GSDF standard
- DICOM Preset and auto compensation of DICOM curve for ambient light changing
- ASUS exclusive Auto calibration to ensures DICOM accuracy
- Factory calibrated to ensures JND < 10%
- Multiple I/O for flexibility: DisplayPort with Daisy-chain, HDMI, USB-C and USB hub

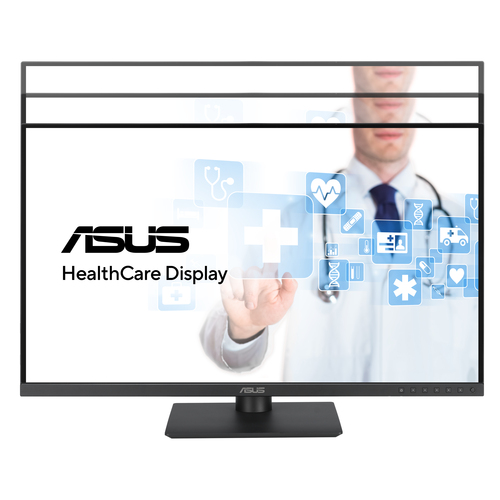

- Ergonomic design with tilt, swivel, pivot and height adjustments for a comfortable viewing experience
- Proprietary long-lasting antibacterial treatment inhibits the growth of bacteria and fungi on the monitor head
- IEC 62368-1, IEC 60601-1-2, AAPM TG270, IEC63563-1 and ISO13485 Compliance
- Manufacturer
- ASUS
- Part number
- HA2741A
- Condition
- New
- Category
- Displays › Specialty Displays
- 1GPA category
- Hardware
Overview
HealthCare Monitor
ASUS HealthCare Displays provides comprehensive line-up targeting for every HealthCare institutions needs. ASUS HealthCare Displays are factory calibrated with DICOM® Part 14 GSDF (Grayscale Standard Display Function) compliance to ensure visual accuracy and consistency in finest details. ASUS HA2741A features 27-inch 3.6MP Anti-Glare, Low-Reflection (AGLR) IPS panel, ASUS exclusive Hardware Calibration Technology supports auto calibration to keep DICOM long term accuracy. ASUS HealthCare Displays delivers high-performance, precise and stable capabilities to fit any scenario.
Lifelike Views Vith 178° Wide View Angle
ASUS HA2741A IPS panel provides 178° viewing angles, both horizontally and vertically, so you can reproduce excellent contrast, ensuring the accurate and clear medical images from almost any direction.
Specifications
| Display diagonal | 68.6 cm (27") |
|---|---|
| Display resolution | 2560 x 1440 pixels |
| HD type | Quad HD |
| Native aspect ratio | 16:9 |
| Display technology | LCD |
| Panel type | IPS |
| LED backlight | Yes |
| Backlight type | LED |
| Touchscreen | No |
| Display brightness (typical) | 300 cd/m² |
| Response time | 5 ms |
| Anti-glare screen | Yes |
| Screen shape | Flat |
| Contrast ratio (typical) | 900:1 |
| Maximum refresh rate | 75 Hz |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Pixel pitch | 0.233 x 0.233 mm |
| Viewable size, horizontal | 59.7 cm |
| Viewable size, vertical | 33.6 cm |
| Display diagonal (metric) | 69 cm |
| Colour gamut standard | sRGB |
| Colour gamut | 100% |
| Flicker-free technology | Yes |
|---|---|
| Low Blue Light technology | Yes |
| Built-in speaker(s) | No |
|---|---|
| Built-in camera | No |
| Market positioning | Medical |
|---|---|
| Product colour | Black |
| Frameless design | Yes |
| Feet colour | Black |
| Built-in USB hub | Yes |
|---|---|
| USB hub version | 3.2 Gen 1 (3.1 Gen 1) |
| Number of USB Type-C upstream ports quantity | 1 |
| USB Type-A downstream ports quantity | 3 |
| USB Type-C downstream ports quantity | 1 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Power Delivery (USB PD) | Yes |
| USB Power Delivery up to | 15 W |
| HDMI | Yes |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| DisplayPorts quantity | 2 |
| DisplayPort version | 1.4 |
| Headphone out | Yes |
| Headphone outputs | 1 |
| HDCP | Yes |
| HDCP version | 2.2 |
| VESA mounting | Yes |
|---|---|
| Panel mounting interface | 100 x 100 mm |
| Wall mountable | Yes |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Height adjustment | Yes |
| Adjustable height (max) | 13 cm |
| Pivot | Yes |
| Pivot angle | -90 - 90° |
| Swivelling | Yes |
| Swivel angle range | -30 - 30° |
| Tilt adjustment | Yes |
| Tilt angle range | -5 - 23° |
| Energy efficiency class (SDR) | D |
|---|---|
| Energy efficiency class (HDR) | F |
| Energy consumption (SDR) per 1000 hours | 17 kWh |
| Energy consumption (HDR) per 1000 hours | 23 kWh |
| Power consumption (typical) | 13.7 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power supply type | External |
| Energy efficiency scale | A to G |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 5 - 90% |
| Width (with stand) | 613.3 mm |
|---|---|
| Depth (with stand) | 197.2 mm |
| Height (with stand) | 536.7 mm |
| Weight (with stand) | 6.7 kg |
| Width (without stand) | 613.3 mm |
| Depth (without stand) | 44.9 mm |
| Height (without stand) | 363.4 mm |
| Weight (without stand) | 5 kg |
| Package width | 695 mm |
|---|---|
| Package depth | 133 mm |
| Package height | 421 mm |
| Package weight | 9.3 kg |
| Package type | Box |
| Sustainability compliance | Yes |
|---|---|
| Sustainability certificates | Forest Stewardship Council (FSC) Mix, ENERGY STAR |
| Brand specific technologies | Eye Care+ |
|---|
| Native refresh rate | 60 Hz |
|---|
