Products › Storage Devices

ASUS

ASUS ROG Strix Arion White Edition SSD enclosure M.2

Part number ESD-S1C/WHT/G/AS//

ROG STRIX ARION WHITE M.2 NVME SSD ENCLOSURE USB3.2 GEN 2X1 TYPE-C

  • USB-C™ 3.2 Gen 2x1 for speeds of up to 10 Gbps
  • Supports M.2 PCIe NVM Express® SSD with 2230/2242/2260/2280 form factor
  • Innovative, easy-to-use screwdriver-free installation
  • Aluminum alloy case and thermal pads deliver aggressive heat dissipation
  • Exclusive hanging protective holder included
  • Dual USB-C to C and USB-C to A cables included
  • Futuristic design features ASUS Aura Sync lighting effects
Manufacturer
ASUS
Part number
ESD-S1C/WHT/G/AS//
Condition
New
Category
Storage Devices › Solid State Disks
1GPA category
Hardware

Overview

ROG Strix Arion M.2 NVMe SSD Enclosure—USB3.2 Gen 2x1 Type-C (10 Gbps), Dual USB-C to C and USB-C to A Cables, Screwdriver-Free, Thermal Pads Included, Fits PCIe 2280/2260/2242/2230 M key/B+M Key

Stay Cool, Stay Fast.

ROG Strix Arion is an SSD enclosure that fits an M.2 PCIe NVM Express® SSD with a 2230/2242/2260/2280 form factor and features USB-C™ 3.2 Gen 2x1 connectivity to deliver data transfer speeds of up to 10 Gbps*. Its sleek aluminum alloy case features thermal pads for excellent heat dissipation, exclusive ASUS Aura Sync lighting effects, and a protective holder with an R-hook that altogether make ROG Strix Arion a high-performance, mobile storage solution.

*Actual data transmission speeds may vary depending on usage situation.

Support M.2 PCIe NVM Express® SSD

ROG Strix Arion fits* 2230/2242/2260/2280 M.2 PCIe NVM Express® SSD up to 2TB with M key/ B+M key. **

*ROG Strix Arion does not support SATA-based B key/ B+M Key and PCIe/ACHI-based M key.

**ROG Strix Arion currently does not support Micron P5 SSD and Realtek RTS5765DL/RTS5766DL controllers, such as but not limited to ADATA SWORDFISH and ADATA XPG SPECTRIX S20G.

Aggressive heat dissipation

An aluminum alloy case with included thermal pads reduce operating temperatures drastically, enabling your SSD to maintain high transfer speeds and extending its longevity.

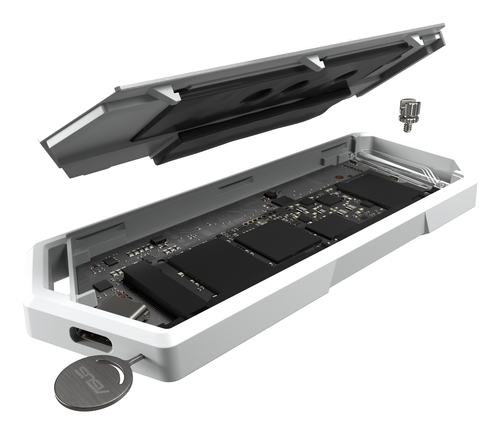

Innovative screwdriver-free installation

ROG Strix Arion features a pin-design and thumbscrew-installation system that makes it easy to mount your SSD into the enclosure. No screwdriver is required.

Dual USB-C to C and USB-C to A cables

ROG Strix Arion comes with both USB-C to USB-C and USB-C to USB-A cables for greater convenience and compatibility with a wide range of devices, including laptops, smartphones*, PC, and gaming consoles.

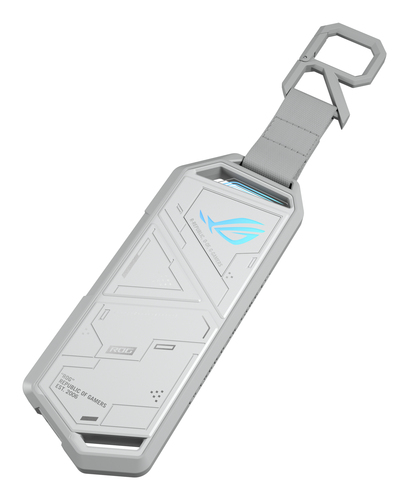

Exclusive hanging protective holder

A protective holder with a stylish, detachable R-hook offers protection from bumps and hard hits to keep your SSD operating properly.

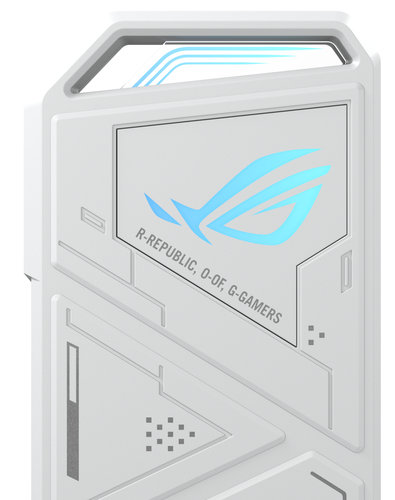

ASUS Aura Sync lighting effects

With exclusive ASUS Aura Sync lighting technology, ROG Strix Arion provides ambient lighting that perfectly complements your gaming rig for true expression of your individuality.

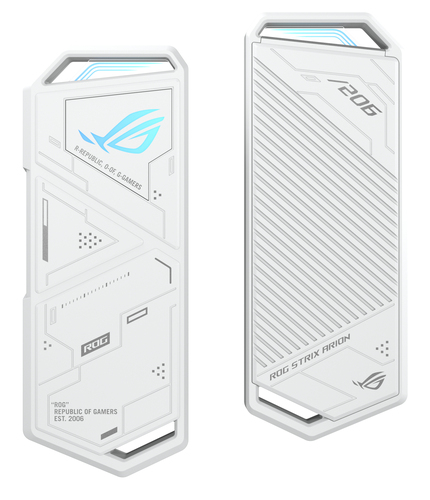

Embrace Minimalism, Elevate Style

Designed with meticulous attention to detail, this cutting-edge storage solution not only boasts exceptional performance but also elevates your setup with its all-new moon-white printing patterns. Perfect for those seeking a distinct style, ROG Strix Arion White sets itself apart with its unique design elements.

Specifications

Storage
Number of storage drives supported1
Storage drive sizeM.2
Supported storage drive interfacesM.2, PCI Express
Ports & interfaces
USB connectivityYes
USB version3.2 Gen 2 (3.1 Gen 2)
USB connector typeUSB Type-C
Design
Product typeSSD enclosure
Product colourWhite
Performance
Data transfer rate10 Gbit/s
Power
Input voltage5 V
System requirements
Mobile operating systems supportedAndroid
Windows operating systems supportedWindows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
Mac operating systems supportedMac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.7.5 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 60 °C
Weight & dimensions
Width47.7 mm
Depth124.5 mm
Height10.9 mm
Weight98 g
Package width96 mm
Package depth180 mm
Package height41.5 mm
Package weight357 g
Packaging content
Cables includedUSB Type-C to USB Type-A, USB Type-C to USB Type-C
ManualYes

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
