ASUS
ASUS Chromebox CHROMEBOX5A-S3081UN Intel® Core™ i3 i3-1315U 8 GB DDR4-SDRAM 128 GB SSD ChromeOS Mini PC Black
Part number CHROMEBOX5A-S3081UN
CHRMBX 5A I3-1315U 8GB DDR5 RAM 128GB M.2 PCIE G4X4 NVME SSD
- ChromeOS
- Intel Core i3-1315U (10MB Cache)
- 8GB (3200MHz) DDR4-SDRAM (1 x 4) & 128GB SSD
- Manufacturer
- ASUS
- Part number
- CHROMEBOX5A-S3081UN
- Condition
- New
- Category
- Computer Systems › Desktop Computers
- 1GPA category
- Hardware
Overview
Performance for any workplace
ASUS Chromebox 5a delivers performance and responsiveness to empower users with incredible productivity
Specifications
Processor
| Processor manufacturer | Intel |
|---|
| Processor family | Intel® Core™ i3 |
|---|
| Processor generation | Intel Core i3-13xxx |
|---|
| Processor model | i3-1315U |
|---|
| Processor cores | 6 |
|---|
| Processor threads | 8 |
|---|
| Processor boost frequency | 4.5 GHz |
|---|
| Performance cores | 2 |
|---|
| Efficient cores | 4 |
|---|
| Performance-core Max Turbo Frequency | 4.5 GHz |
|---|
| Efficient-core Max Turbo Frequency | 3.3 GHz |
|---|
| Processor cache | 10 MB |
|---|
| Processor cache type | Smart Cache |
|---|
| Processor base power | 15 W |
|---|
| Maximum turbo power | 55 W |
|---|
Memory
| Internal memory | 8 GB |
|---|
| Maximum internal memory | 16 GB |
|---|
| Internal memory type | DDR4-SDRAM |
|---|
| Memory layout (slots x size) | 1 x 4 GB |
|---|
| Memory slots | 2x SO-DIMM |
|---|
| Memory clock speed | 3200 MHz |
|---|
Storage
| Total storage capacity | 128 GB |
|---|
| Storage media | SSD |
|---|
| Optical drive type | No |
|---|
| Total SSDs capacity | 128 GB |
|---|
| Number of SSDs installed | 1 |
|---|
| SSD capacity | 128 GB |
|---|
| SSD interface | PCI Express 4.0 |
|---|
| NVMe | Yes |
|---|
| SSD form factor | M.2 |
|---|
| Card reader integrated | Yes |
|---|
| Compatible memory cards | MicroSD (TransFlash) |
|---|
Graphics
| Discrete graphics card | No |
|---|
| On-board graphics card | Yes |
|---|
| Discrete graphics card model | Not available |
|---|
| On-board GPU manufacturer | Intel |
|---|
| On-board graphics card family | Intel® UHD Graphics |
|---|
| On-board graphics card model | Intel® UHD Graphics |
|---|
Performance
| Product type | Mini PC |
|---|
Network
| Ethernet LAN | Yes |
|---|
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
|---|
| Wi-Fi | Yes |
|---|
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
|---|
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
|---|
| Bluetooth | Yes |
|---|
| Bluetooth version | 5.4 |
|---|

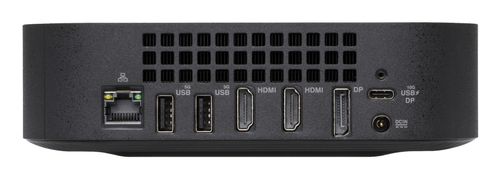

Ports & interfaces
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 3 |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
|---|
| DisplayPorts quantity | 1 |
|---|
| DisplayPort version | 1.4 |
|---|
| HDMI ports quantity | 2 |
|---|
| HDMI version | 2.1 |
|---|
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Combo headphone/mic port | Yes |
|---|
| DC-in jack | Yes |
|---|
| Number of rear USB ports | 3 |
|---|

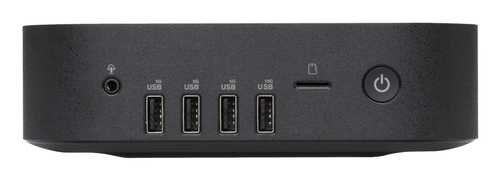

| Number of front USB ports | 4 |
|---|
| Number of front audio ports | 1 |
|---|
Power
| Power supply | 90 W |
|---|
| Power supply input voltage | 19 V |
|---|
Design
| Chassis type | Mini PC |
|---|

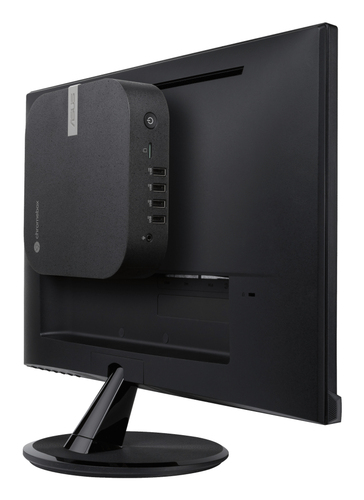

| VESA mounting | Yes |
|---|
| Product colour | Black |
|---|
Software
| Operating system installed | ChromeOS |
|---|
Display
| Display included | No |
|---|
Weight & dimensions
| Width | 166.5 mm |
|---|
| Depth | 165.8 mm |
|---|
| Height | 45.9 mm |
|---|
| Weight | 800 g |
|---|
Packaging content
| Cables included | AC |
|---|
| Manual | Yes |
|---|
Certificates
| Certification | BSMI/CB/CE/FCC/UL/Energy Star/C-Tick/WiFi/RF/VCCI |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
