ASUS
ASUS ASUS-PRO-WS-3000P power supply unit 3000 W 20+4 pin ATX ATX Black
Part number ASUS-PRO-WS-3000P
ASUS PRO WS 3000W PLATINUM PSU (80 PLUS PLATINUM CERTIFIED, ATX 3.1 AND PCIE 5.1
- Heavy-duty PSU: Supports up to four GeForce RTX™ 5090 graphics cards via rock-solid voltage stability and advanced power delivery.
- Dual-ball fan bearings: Designed to last up to twice as long as sleeve-bearing designs.
- Extruded aluminum heatsinks: Cover critical components, delivering lower temperatures and noise versus reference designs.
- ATX 3.1 compatible: Compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation.
- PCIe® 5.1 ready: Features native 12V-2x6 connectors for cutting-edge graphics card power.
- 80 PLUS Platinum certified: Utilizes low-ESR Japanese server grade capacitors and premium components for industry-leading power efficiency.
- Manufacturer
- ASUS
- Part number
- ASUS-PRO-WS-3000P
- Condition
- New
- Category
- Computer Systems › Server Computers
- 1GPA category
- Hardware
Overview

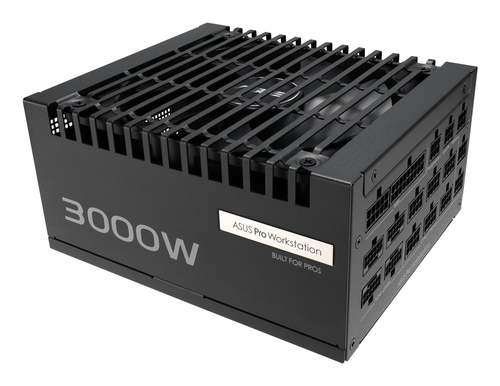

ASUS Pro WS 3000W Platinum
The ASUS Pro WS 3000W Platinum PSU is engineered to support up to four GeForce RTX™ 5090 graphics cards. It also features 80 PLUS Platinum certification, high-performance copper pins, dual-ball fan bearings, etched cables, rock-solid voltage stability and advanced power delivery, making it an ideal choice for AI solutions, deep learning and IT management.
Specifications
| Total power | 3000 W |
|---|---|
| AC input voltage | 220 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 130 W |
| Combined power (+12V) | 3000 W |
| Combined power (+5V) | 130 W |
| Combined power (-12V) | 0.8 W |
| Combined power (+5Vsb) | 3 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 250 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 9.6 A |
| Max output current (+5Vsb) | 15 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
|---|---|
| Motherboard power cable length | 61 cm |
| Number of SATA power connectors | 12 |
| SATA power cable length | 120,400 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 150,400 mm |
| PCI Express power connectors (6+2 pin) | 4 |
| PCI Express power connectors (16-pin) | 4 |
| PCI Express power cable length | 75 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 100 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
|---|---|
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | DBB |
| Product colour | Black |
|---|---|
| Cooling type | Active |
| Illumination | No |
| Width | 175 mm |
|---|---|
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.16 kg |
| Package width | 346 mm |
|---|---|
| Package depth | 208 mm |
| Package height | 144 mm |
| Package weight | 5.09 kg |
| Package type | Box |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
