APC BY SCHNEIDER ELECTRIC

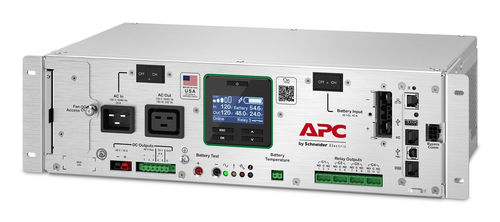

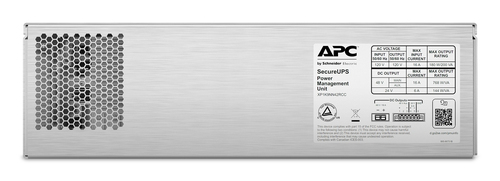

APC XP1K9NN42RCC uninterruptible power supply (UPS) Double-conversion (Online) 2000 kVA 1900 W
Part number XP1K9NN42RCC
SECURE UPS POWER MGMNT UNIT 1900W 115/120VAC IN/OUT
- Double-conversion (Online)
- 2000 kVA 1900 W
- Waveform: Sine
- Lead-Acid
- White
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- XP1K9NN42RCC
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Specifications
| UPS topology | Double-conversion (Online) |
|---|---|
| Output power capacity | 2000 kVA |
| Output power | 1900 W |
| Waveform | Sine |
| Input operation voltage (min) | 120 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 24 V |
| Output operation voltage (max) | 120 V |
| Output frequency | 60 Hz |
| Maximum current | 20 A |
| Power factor | 0.9 |
| Crest factor | 3:1 |
| Audible alarm(s) | Yes |
| Battery technology | Lead-Acid |
|---|
| Cable length | 3 m |
|---|---|
| Product colour | White |
| Display type | LCD |
| Manual | Yes |
|---|
| Width | 434 mm |
|---|---|
| Depth | 262 mm |
| Height | 130 mm |
| Weight | 8.8 kg |
| Package width | 556 mm |
|---|---|
| Package depth | 371 mm |
| Package height | 300 mm |
| Package weight | 12 kg |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
