Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

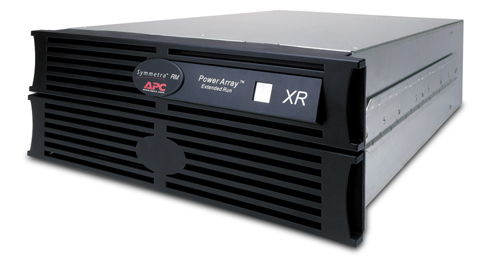

APC Symmetra RM XR uninterruptible power supply (UPS)
Part number SYRMXR2B4
PTO KIT SYM RM XR FRAME W/2 SYBT2 SCALABLE TO 4 NO RETURN
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SYRMXR2B4
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Status Indicator LED's
Provides a quick visual indication of your unit's status.
Cascading capabilities
Horizontal console port servers can be cascaded to manage up to 1,024 devices.
Rack Mount
1U rackmountable. Hardware included.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
Hot Pluggable Operation
Add or remove servers without having to power off the switch.
Replace Batt Indicator
Hot Swap Batteries
Specifications
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery capacity | 1224 Ah |
| Battery voltage | 208 V |
| Form factor | 4U |
|---|---|
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -55 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight | 65.5 kg |
|---|
| Package weight | 75 kg |
|---|
| Dimensions (WxDxH) | 483 x 640 x 178 mm |
|---|---|
| Package dimensions (WxDxH) | 584 x 813 x 343 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
