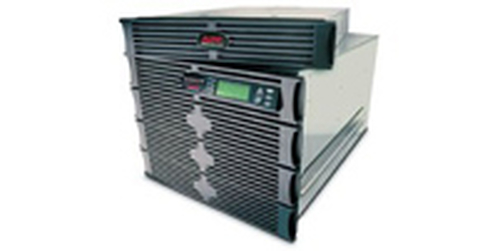

APC Symmetra RM 6kVA uninterruptible power supply (UPS) 4200 W
Part number SYH6K6RMT-TF3
PTO KIT SYM 6KVA RM 208V/240V SCALABLE TO 6KVA N+1 W SDT NO RTN
- 6 kVA 4200 W
- Sealed Lead Acid (VRLA)
- Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SYH6K6RMT-TF3
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Modular design
Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
Configurable for N+1 internal redundancy
Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
Redundant Intelligence Modules
Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.
Hot-swappable intelligence modules
Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement.
Hot-swappable power modules
Ensures clean, uninterrupted power to protected equipment during Power Module replacement.
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Power Modules connected in parallel
Enhances availability by allowing immediate, seamless recovery from isolated module failures.
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
Automatic internal bypass
Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
Automatic restart of loads after UPS shutdown.
Specifications
| Output power capacity | 6 kVA |
|---|---|
| Output power | 4200 W |
| Input frequency | 60 Hz |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Battery recharge time | 3 h |
| Hot-swap battery | Yes |
| Cable length | 1.83 m |
|---|---|
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Certification | CSA, FCC Part 15 Class A, UL 1778 |
|---|
| Weight | 176.8 kg |
|---|
| Interface | DB-9 RS-232, RJ-45 |
|---|---|
| Output connections | 4x NEMA L5-20R 2x NEMA L6-20R |
| Input connection type | 3-wire (2PH + G), NEMA L6-30P |
| Dimensions (WxDxH) | 483 x 730 x 445 mm |
| Nominal input voltage | 208 V |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
