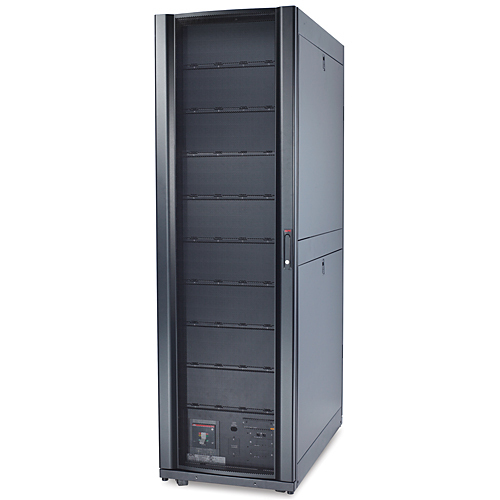

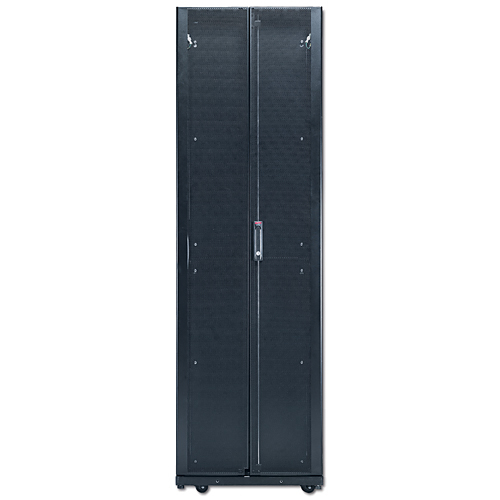

APC Symmetra PX Battery Frame for 400V PX 96/160kW & 208V PX 100kW for 9 Battery Modules & Startup
Part number SYCFXR9-S
SYMMETRA PX BATT FRAME F/400V PX 96-160KW 208V PX 100KW F/9BATT
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SYCFXR9-S
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Hot-swappable batteries
Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
Battery modules connected in parallel
Delivers higher availability through redundant batteries.
User-replaceable batteries
Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
Temperature-compensated battery charging
Prolongs battery life by regulating the charge voltage according to battery temperature.
Intelligent battery management
Maximizes battery performance, life, and reliability through intelligent, precision charging.
InfraStruXure Manager Compatible
Enables centralized management via the APC InfraStruXure Manager.
Specifications
| Rack capacity | 42U |
|---|---|
| Type | Freestanding rack |
| Product colour | Black |
| Certification | CE,EN/IEC 62040-2,EN/IEC 62040-3,EN/IEC 62040-1-1 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Weight | 345 kg |
|---|
| Package weight | 379 kg |
|---|
| Dimensions (WxDxH) | 600 x 1070 x 1991 mm |
|---|---|
| Package dimensions (WxDxH) | 848 x 1210 x 2150 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
