Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC
APC Symmetra LX 16kVA N+1 uninterruptible power supply (UPS) 11200 W 1 AC outlet(s)
Part number SYAF16KI
SYMMETRA LX 16KVA N+1 TOWER FRAME 220/230/240V OR 380/400/415V
- 16 kVA 11200 W
- 1 AC outlet(s)
- Sealed Lead Acid (VRLA)
- Tower
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SYAF16KI
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview

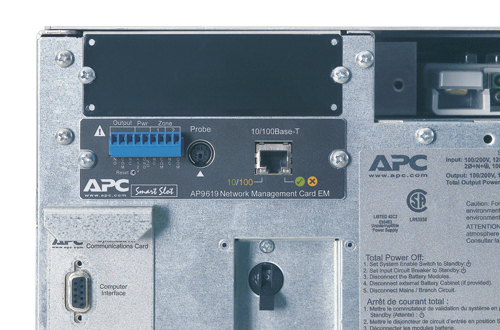

APC Symmetra, 11.2 kW / 16 kVA, Input 230V, 400V 3PH / Output 230V , Interface Port DB-9 RS-232, Smart-Slot
Includes: CD with software, Documentation CD, Installation guide, User Manual, Web/SNMP Management Card
Standard Lead Time: Usually in Stock
Specifications
| Output power capacity | 16 kVA |
|---|---|
| Output power | 11200 W |
| Input operation voltage (min) | 155 V |
| Input operation voltage (max) | 480 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Efficiency | 90% |
| Crest factor | 5:1 |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 62 dB |
| Audible alarm(s) | Yes |
| AC outlets quantity | 1 AC outlet(s) |
|---|---|
| RS-232 ports | 1 |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
| Form factor | Tower |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 4500 m |
| Safety | C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE |
|---|
| Width | 483 mm |
|---|---|
| Depth | 726 mm |
| Height | 937 mm |
| Weight | 116.4 kg |
| Package weight | 147.7 kg |
|---|
| Battery type | SYBT5 |
|---|---|
| Dimensions (WxDxH) | 483 x 726 x 937 mm |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230-400 V |
| Package dimensions (WxDxH) | 599 x 997 x 1181 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
