Overview
"High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks."
Specifications
Features
| Output power capacity | 8 kVA |
|---|
| Output power | 5600 W |
|---|
| Waveform | Sine |
|---|
| Number of input phases | 1 |
|---|
| Number of output phases | 1 |
|---|
| Single-phase input voltage supported | 240,220 V |
|---|
| Three-phase input voltage supported | 220,380,400,415 V |
|---|
| Emergency Power Off (EPO) | Yes |
|---|
Ports & interfaces
| AC outlet types | Hardwire |
|---|
Battery
| Battery replacement accessibility | End-user |
|---|
| Battery recharge time | 3 h |
|---|
| Replacement battery cartridge | SYBT5 |
|---|
Design
| Product colour | Black, Silver |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 3000 m |
|---|
Technical details
| Sustainable packaging | No |
|---|
| Packaging recycled materials | Recycled cardboard |
|---|
| SCIP number | 2d54512b-134b-4bf3-ab6e-849ecf1e3919 |
|---|
| Preferred mounting position | no preference |
|---|
| Take-back system | No |
|---|
| Packaging without single use plastic | No |
|---|
Certificates
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|
| Compliance certificates | RoHS, REACH, WEEE |
|---|
| Certification | C-Tick; CE; GOST; VDE |
|---|
Power
| Input current (max) | 36 A |
|---|
Weight & dimensions
| Width | 483 mm |
|---|
| Depth | 726 mm |
|---|
| Height | 671 mm |
|---|
| Weight | 201.8 kg |
|---|
Logistics data
| Customs product code (TARIC) | 8504409590 |
|---|
| Harmonized System (HS) code | 85078000 |
|---|
| Total carbon footprint (kg of CO2e) | 36149.930006006 |
|---|
| Country of origin | Philippines |
|---|
Other features

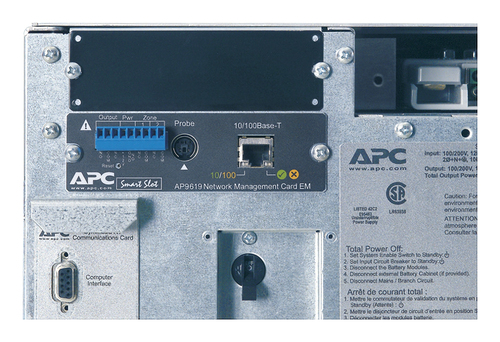

| I/O ports | Available Smart Slot Interface Quantity - 1
Pre-Installed SmartSlot Cards - AP9619 |
|---|
| Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
|---|
| Interface | DB-9 RS-232, Smart-Slot |
|---|
| Output connections | (1) Hard Wire 3-wire (H N + G) |
|---|
| Input connection type | Hard Wire 3 wire (1PH+N+G) |
|---|
| Dimensions (WxDxH) | 480 x 730 x 660 mm |
|---|
| Nominal output voltage | 230 V |
|---|
| Output voltage note | Configurable for 220: 230 or 240 nominal output voltage |
|---|
| Output connection type | hard wire 3-wire (H N + E) for 1 zone(s) |
|---|
| Output voltage | 220 V |
|---|
| Mounting | front |
|---|
