APC Symmetra LX 8kVA Scalable to 16kVA N+1 Rack-mount, 220/230/240V or 380/400/415V
Part number SYA8K16RMI
SYMMETRA LX 8KVA SCALABLE TO 16KVA N+1 RM 220/230/240V OR 380V
- 8 kVA 5600 W
- Waveform: Sine
- Black, Silver
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SYA8K16RMI
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
"High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks."
Specifications
| Output power capacity | 8 kVA |
|---|---|
| Output power | 5600 W |
| Waveform | Sine |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Single-phase input voltage supported | 240,220 V |
| Three-phase input voltage supported | 220,380,400,415 V |
| Emergency Power Off (EPO) | Yes |
| Audible alarm(s) | Yes |
| AC outlet types | IEC 60320 |
|---|
| Battery replacement accessibility | End-user |
|---|---|
| Typical backup time at full load | 7.5 min |
| Typical backup time at half load | 20.2 min |
| Battery recharge time | 3 h |
| Replacement battery cartridge | SYBT5 |
| Product colour | Black, Silver |
|---|---|
| Compatibility | C-tick, CE, EN 50091-1, EN 50091-2, EN 55022 Class A, EN 55024, EN 60950, GOST, IEC 60950, VDE |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Sustainable packaging | No |
|---|---|
| Packaging recycled materials | Recycled cardboard |
| Preferred mounting position | lower |
| Take-back system | No |
| Packaging without single use plastic | No |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
|---|---|
| Compliance certificates | RoHS, REACH, WEEE |
| Certification | C-Tick; CE; GOST; VDE |
| Input current (max) | 36 A |
|---|
| Width | 472 mm |
|---|---|
| Depth | 688 mm |
| Height | 838 mm |
| Weight | 198.6 kg |
| Package weight | 239.6 kg |
|---|
| Customs product code (TARIC) | 8504409590 |
|---|---|
| Harmonized System (HS) code | 85078000 |
| Total carbon footprint (kg of CO2e) | 36289.5742494707 |
| Country of origin | Philippines |
| I/O ports | (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G) |
|---|---|
| Battery type | Lead-Acid |

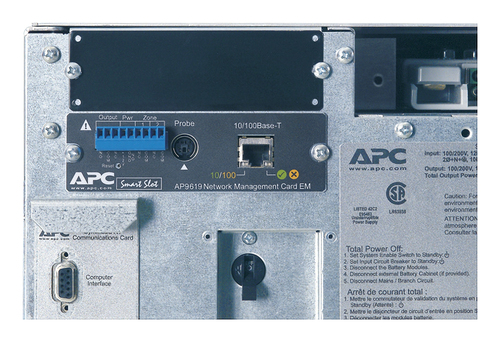

| Interface | DB-9 RS-232, Smart-Slot |
| Output connections | (1) Hard Wire 3-wire (H N + G) (8) IEC 320 C13 (10) IEC 320 C19 |
| Input connection type | Hard Wire 3 wire (1PH+N+G) Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 472 x 688 x 838 mm |
| Nominal output voltage | 230 V |
| Output voltage note | 220: 230, 240 |
| Nominal input voltage | 230 V |
| Output connection type | hard wire 3-wire (H N + E) for 1 zone(s); 8 IEC 60320C13; 10 IEC 60320C19 |
| Output voltage | 220 V |
| Mounting | front |
| Package dimensions (WxDxH) | 599 x 997 x 1054 mm |
