Overview

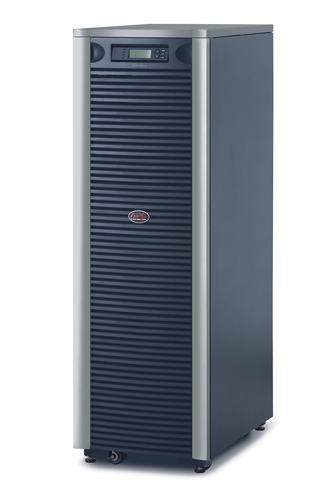

Symmetra LX, 6400 Watts / 8000 VA,Input 208V / Output 120V, 208V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model
Specifications
Features
| Output power capacity | 8 kVA |
|---|
| Output power | 6400 W |
|---|
| Emergency Power Off (EPO) | Yes |
|---|
| Noise level | 62 dB |
|---|
| Audible alarm(s) | Yes |
|---|
Ports & interfaces
| Serial ports quantity | 1 |
|---|
Battery
| Battery technology | Sealed Lead Acid (VRLA) |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Non-operating altitude | 4500 |
|---|
Weight & dimensions
| Weight | 473.6 kg |
|---|
Logistics data
| Products per pallet | 1 pc(s) |
|---|
Other features
| Output connections | 1x Hard Wire 4-wire (2PH + N +G) |
|---|
| Input connection type | Hard Wire 4-wire (2PH+N+G) |
|---|
| Dimensions (WxDxH) | 483 x 726 x 1516 mm |
|---|
| Output voltage note | 120/208 or 120/240 |
|---|
| Nominal input voltage | 208 V |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
