Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

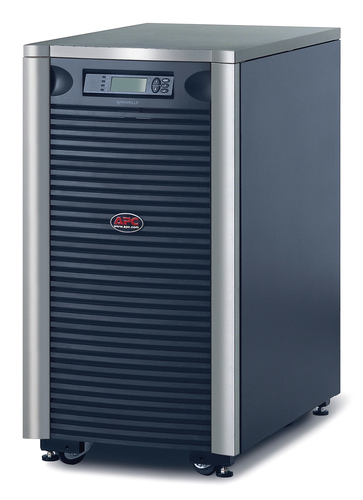

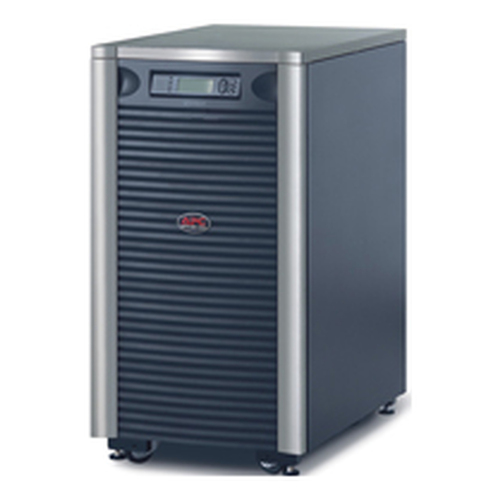

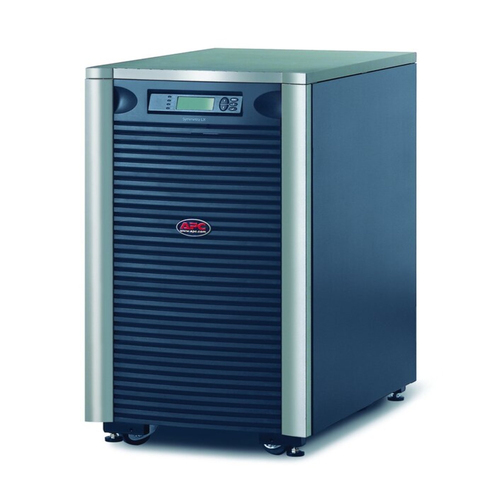

APC Symmetra LX 8kVA Scalable to 16kVA N+1, Tower 208/240V
Part number SYA8K16P
SYMMETRA LX 8KVA SCALABLE TO 16KVA N+1 TWR ONLINE 208V/240V
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SYA8K16P
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview

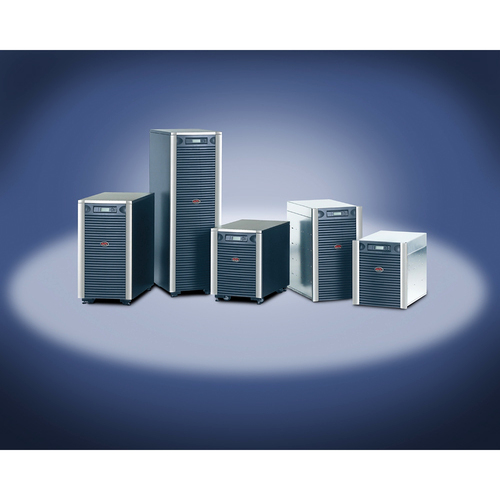

Symmetra® LX

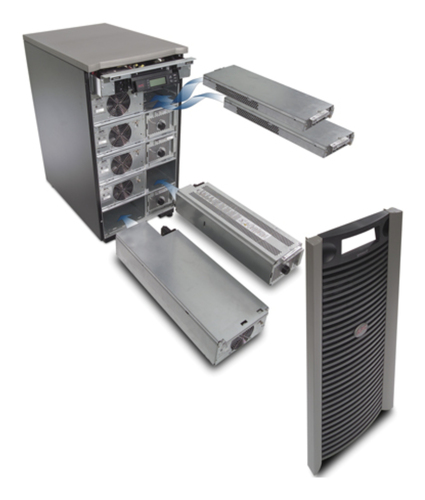

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
Symmetra LX
-6400 Watts.
-8000 VA,Input 208V.
-Output 120V, 208V.
-Interface Port DB-9 RS-232.
-Smart-Slot.
-Extended runtime model.
Specifications
| Output power capacity | 8 kVA |
|---|---|
| Output power | 6400 W |
| Emergency Power Off (EPO) | Yes |
| Noise level | 62 dB |
| Audible alarm(s) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Typical backup time at full load | 254.1 min |
| Typical backup time at half load | 528.4 min |
| Battery recharge time | 3 h |
| Replacement battery cartridge | SYBT5 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight | 219.6 kg |
|---|
| Package weight | 236.82 g |
|---|
| Dimensions (WxDxH) | 483 x 726 x 937 mm |
|---|---|
| Output voltage note | 120 - 208 / 120 - 240 |
| Nominal input voltage | 208 V |

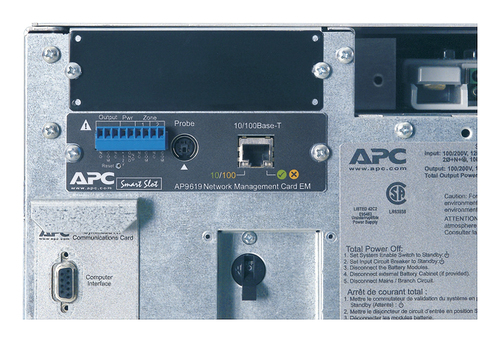

| Communication options, cards | AP9619 |
| Communication options, slot | SmartSlot |
| Package dimensions (WxDxH) | 599 x 997 x 1181 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
