Overview

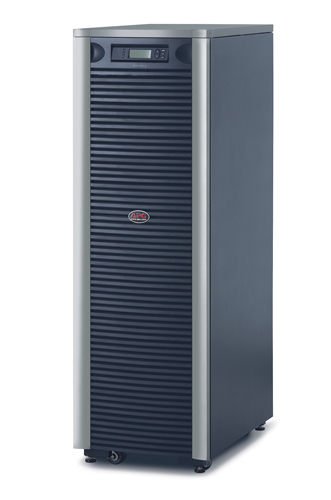

APC Symmetra LX, 12.8 kW / 16 kVA,Input 208V / Output 120V, 208V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model
Specifications
Features
| Output power capacity | 16 kVA |
|---|
| Emergency Power Off (EPO) | Yes |
|---|
| Noise level | 62 dB |
|---|
| Audible alarm(s) | Yes |
|---|
Ports & interfaces
| Serial ports quantity | 1 |
|---|
Battery
| Typical backup time at full load | 20.8 min |
|---|
| Typical backup time at half load | 47.8 min |
|---|
| Battery recharge time | 7.5 h |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 45 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
Weight & dimensions
| Weight | 503 kg |
|---|
Packaging data
| Package weight | 535.5 kg |
|---|
Logistics data
| Products per pallet | 1 pc(s) |
|---|
Other features
| Dimensions (WxDxH) | 483 x 726 x 1516 mm |
|---|
| Nominal input voltage | 208 V |
|---|
| Package dimensions (WxDxH) | 599 x 997 x 1880 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
