Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

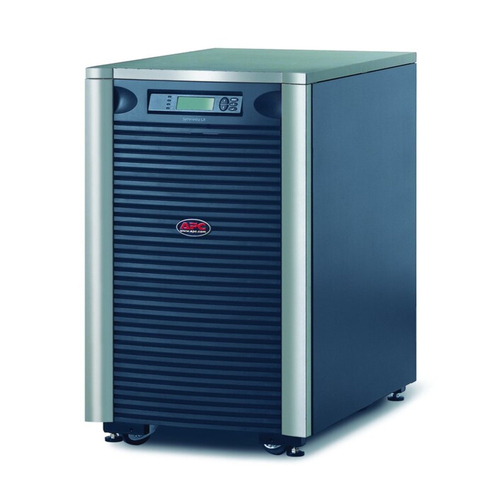

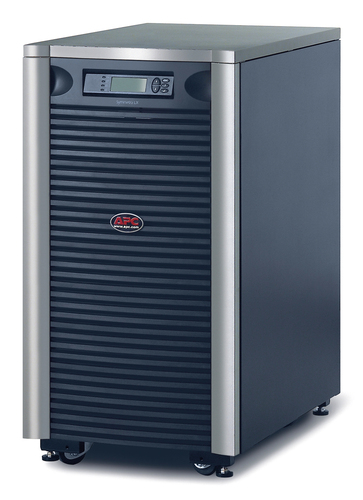

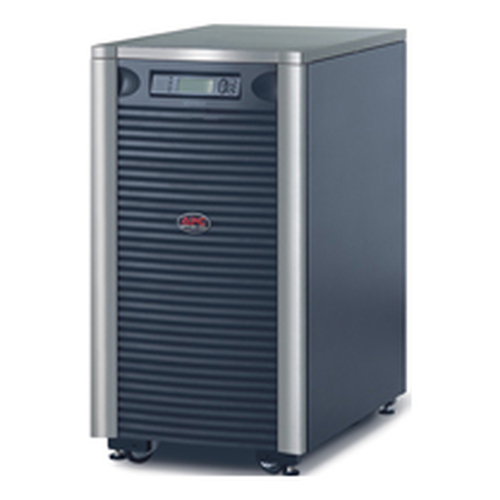

APC Symmetra LX 16kVA Scalable to 16kVA N+1 Tower, 208/240V
Part number SYA16K16P
SYMMETRA LX 16KVA SCALABLE TO 16KVA N+1 208/240V NO RETURN
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SYA16K16P
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Symmetra® LX

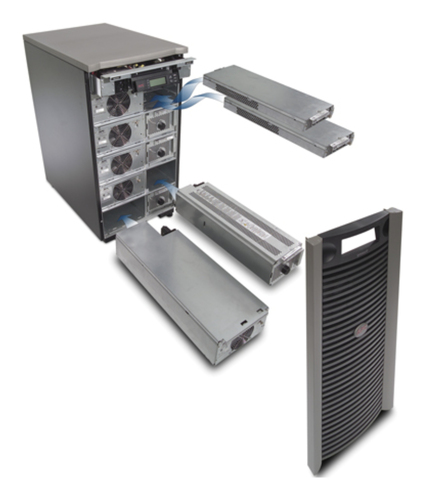

High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks.
-Symmetra LX, 12.8 kW.
-16 kVA,Input 208V.
-Output 120V, 208V.

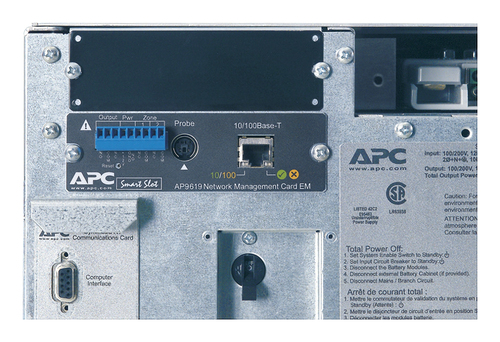

-Interface Port DB-9 RS-232.
-Smart-Slot.
-Extended runtime model.
Specifications
| Output power capacity | 16 kVA |
|---|---|
| Output power | 12800 W |
| Emergency Power Off (EPO) | Yes |
| Noise level | 62 dB |
| Audible alarm(s) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Typical backup time at full load | 6 min |
| Typical backup time at half load | 17.1 min |
| Battery recharge time | 3 h |
| Replacement battery cartridge | SYBT5 |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight | 307.7 kg |
|---|
| Package weight | 337.73 g |
|---|
| Dimensions (WxDxH) | 483 x 726 x 937 mm |
|---|---|
| Nominal input voltage | 208 V |
| Communication options, slot | SmarSlot |
| Package dimensions (WxDxH) | 599 x 997 x 1181 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
