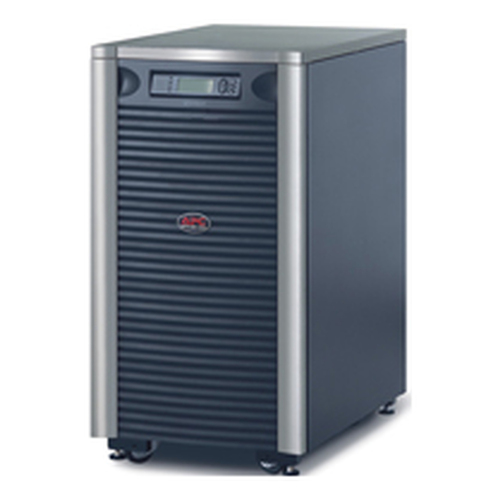

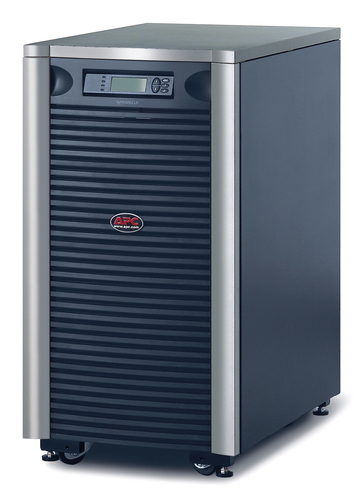

APC Symmetra LX 12kVA scalable to 16kVA N+1 Tower
Part number SYA12K16P
PTO SYMMETRA LX 12KVA SCALABLE 16KVA N+1 208/240V NO RETURN
- 12 kVA 9600 W
- Sealed Lead Acid (VRLA)
- Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SYA12K16P
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview

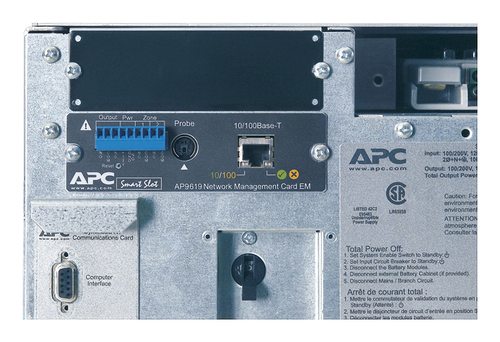

APC Symmetra LX, 9600 Watts / 12 kVA,Input 208V / Output 120V, 208V, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model
-Warranty: 2 years repair or replace
Specifications
| Output power capacity | 12 kVA |
|---|---|
| Output power | 9600 W |
| Input operation voltage (min) | 96 V |
| Input operation voltage (max) | 138 V |
| Input frequency | 45/65 Hz |
| Output operation voltage (min) | 120 V |
| Output operation voltage (max) | 240 V |
| Emergency Power Off (EPO) | Yes |
| Noise level | 62 dB |
| Audible alarm(s) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Typical backup time at full load | 6 min |
| Typical backup time at half load | 17.1 min |
| Battery recharge time | 3 h |
| Replacement battery cartridge | SYBT5 |
| Form factor | Tower |
|---|---|
| Product colour | Black |
| Weight | 263.6 kg |
|---|
| Bundled software | PowerChute Network Shutdown v2.2.3 |
|---|---|
| Package weight | 287.3 kg |
| Products per pallet | 1 pc(s) |
|---|
| Dimensions (WxDxH) | 483 x 726 x 937 mm |
|---|---|
| Nominal output voltage | 208 V |
| Nominal input voltage | 208 V |
| Compatible operating systems | AIX, HP/UX, Linux, Mac OS X, Novell, Solaris, Windows 2000, Windows 2003, Windows Vista, Windows XP |
| Package dimensions (WxDxH) | 599 x 997 x 1181 mm |
