Overview

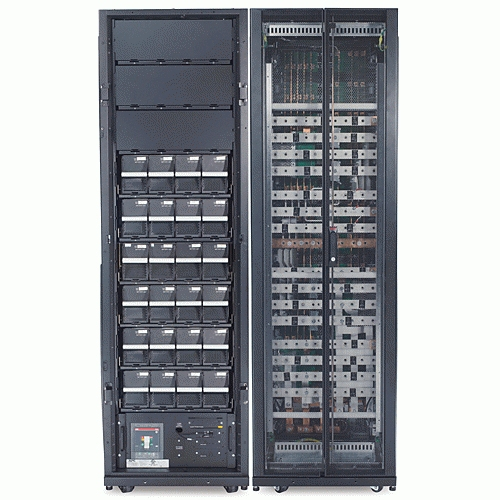

A high-efficiency 3-phase UPS with integrated modular distribution that can be right-sized to your data center power requirements. With hot-scalable power, distribution and run-time this UPS scales with your data center up to 160kW/160kVA. Suitable for small to medium data centers or individual zones of large data centers
Includes: Network Management Card, Start-Up Service, User Manual
Specifications
Features
| Output power capacity | 64 kVA |
|---|
| Emergency Power Off (EPO) | Yes |
|---|
| Noise level | 63 dB |
|---|
| Audible alarm(s) | Yes |
|---|
Battery
| Battery recharge time | 3.5 h |
|---|
Design
| Product colour | Black |
|---|
Operational conditions
| Operating temperature (T-T) | 0 - 40 °C |
|---|
| Storage temperature (T-T) | -15 - 40 °C |
|---|
| Operating relative humidity (H-H) | 0 - 95% |
|---|
| Storage relative humidity (H-H) | 0 - 95% |
|---|
| Operating altitude | 0 - 999.9 m |
|---|
| Non-operating altitude | 0 - 15000 m |
|---|
Certificates
| Certification | EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111 |
|---|
Weight & dimensions
| Weight | 1454 kg |
|---|
Packaging data
| Package weight | 1576 kg |
|---|
Other features
| Battery type | VRLA |
|---|
| Interface | 2x SmartSlot |
|---|
| Output connections | 1x Hard Wire 5-wire (3PH + N + G) |
|---|
| Dimensions (WxDxH) | 1200 x 1070 x 1991 mm |
|---|
| Nominal output voltage | 230 V |
|---|
| Output voltage note | 380, 400/415 |
|---|
| Package dimensions (WxDxH) | 1696 x 1210 x 2140 mm |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
