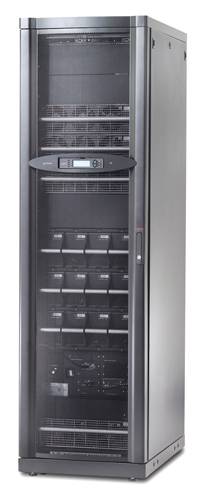

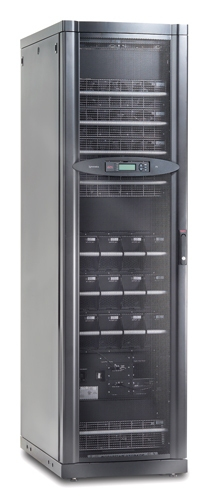

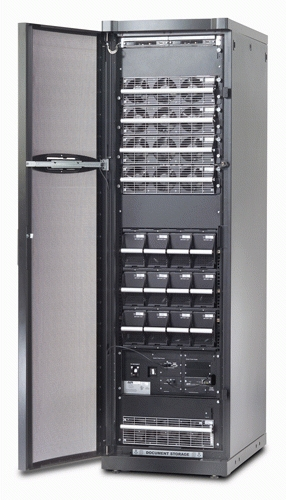

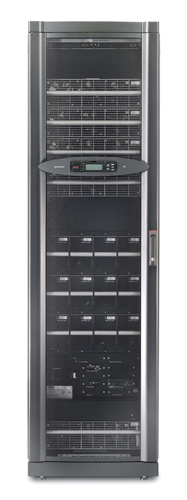

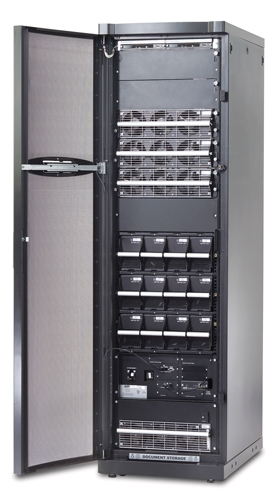

APC SY30K40F Symmetra PX 30kW Scalable to 40kW Rack-mountable UPS uninterruptible power supply (UPS) 30 kVA 30000 W
Part number SY30K40F
SYMMETRA PX 30KW SCALABLE TO 40KW N+1 208V 3PH
- 30 kVA 30000 W
- Lithium-Ion (Li-Ion)
- Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SY30K40F
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
- Provides high availabilty through redundancy by allowing configuration with one more Power Module than is necessary to support the connected load.
- Provides higher availability to the UPS connected loads by giving redundant communication paths to critical UPS functions.
- Enhances availability by allowing immediate, seamless recovery from isolated module failures.
- Delivers higher availability through redundant batteries.
- Ensures clean, uninterrupted power to protected equipment during Power Module replacement.
- Ensures clean, uninterrupted power to protected equipment during Intelligence Module replacement.
- Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
- Provides fast serviceability and reduced maintenance requirements via self-diagnosing, field-replaceable modules.
- Supplies utility power to the connected loads in the event of a UPS overload condition or fault.
- Ensures clean, uninterrupted power to protected equipment when generator power is used.
- Periodic battery self-test ensures early detection of a battery that needs to be replaced.
- Maximizes battery performance, life, and reliability through intelligent, precision charging.
- Reduces preventative maintenance service needs by monitoring the health and status of the external batteries and their expected runtime.
Specifications
| Output power capacity | 30 kVA |
|---|---|
| Output power | 30000 W |
| Input frequency | 60 Hz |
| Emergency Power Off (EPO) | Yes |
| Noise level | 64 dB |
| Audible alarm(s) | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
|---|
| Battery technology | Lithium-Ion (Li-Ion) |
|---|---|
| Typical backup time at full load | 3.7 min |
| Typical backup time at half load | 14.2 min |
| Battery recharge time | 2 h |
| Hot-swap battery | No |
| Replacement battery cartridge | SYBT4 |
| Cable length | 1.83 m |
|---|---|
| Product colour | Black |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Weight | 652.3 kg |
|---|
| Package weight | 720.5 kg |
|---|
| I/O ports | 1 x RJ-45 |
|---|---|
| Interface | DB-9/RS-232 |
| Input connection type | NEMA 5-15P |
| Dimensions (WxDxH) | 600 x 902 x 2070 mm |
| Mac compatibility | No |
| Package dimensions (WxDxH) | 749 x 1054 x 2311 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
