APC BY SCHNEIDER ELECTRIC

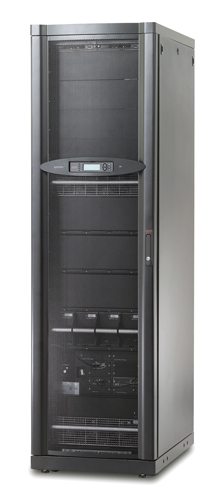

APC SY10K40F uninterruptible power supply (UPS) 10 kVA 10 W
Part number SY10K40F
SYMMETRA PX 10KW SCALABLE TO 40KW N+1 208V 3PH
- 10 kVA 10 W
- Sealed Lead Acid (VRLA)
- Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SY10K40F
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
A high-efficiency 3-phase UPS that is scaleable as your data center grows up to 40KW/40KVA. Suitable for small to medium data center application.
-Fully-rated power kW equals kVA
-Hot-swappable modules
-User-replaceable modules
-Warranty: 1 year repair or replace
Specifications
| Output power capacity | 10 kVA |
|---|---|
| Output power | 10 W |
| Input frequency | 60 Hz |
| Maximum current | 162 A |
| Emergency Power Off (EPO) | Yes |
| Noise level | 64 dB |
| Audible alarm(s) | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
|---|---|
| Typical backup time at full load | 3.5 min |
| Typical backup time at half load | 13.5 min |
| Battery recharge time | 2 h |
| Replacement battery cartridge | SYBT4 |
| Product colour | Black |
|---|
| Weight | 406.8 kg |
|---|
| Bundled software | PowerChute Network Shutdown v2.2.3 |
|---|---|
| Package weight | 453.2 kg |
| Products per pallet | 1 pc(s) |
|---|
| Dimensions (WxDxH) | 600 x 902 x 2070 mm |
|---|---|
| Nominal output voltage | 208 V |
| Nominal input voltage | 208 V |
| Compatible operating systems | AIX, HP/UX, Linux, Mac OS X, Novell, Solaris, Windows 2000, Windows 2003, Windows Vista, Windows XP |
| Communication options, slot | AP9617 |
| Package dimensions (WxDxH) | 749 x 1054 x 2311 mm |
