Products › Power & Rack Equipment

APC BY SCHNEIDER ELECTRIC

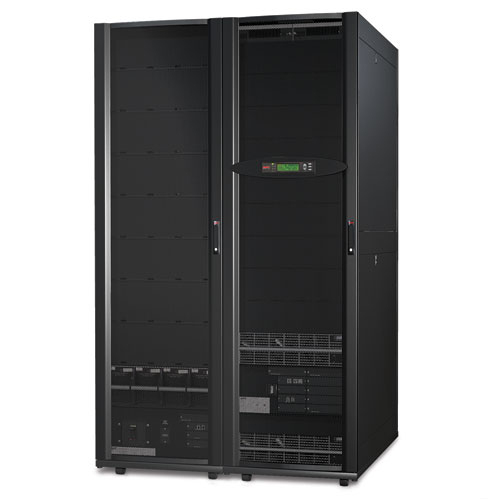

APC SY10K100F uninterruptible power supply (UPS) 10 kVA 10000 W 1 AC outlet(s)

Part number SY10K100F

SYMMETRA PX 10KW SCALABLE TO 100KW 208V W/ STARTUP

  • 10 kVA 10000 W
  • 1 AC outlet(s)
  • Sealed Lead Acid (VRLA)
  • Tower Black
Manufacturer
APC BY SCHNEIDER ELECTRIC
Part number
SY10K100F
Condition
New
Category
Power & Rack Equipment › Power Equipment
1GPA category
Hardware

Overview

Advanced electrical features

Excellent power conditioning, very low harmonic distortion through IGBT rectifier, input power factor correction, and high efficiency

5x8 Start-up service included

Required for full coverage of factory warranty

Battery failure notification

Provides early-warning fault analysis on batteries enabling timely preventive maintenance

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Battery modules connected in parallel

Delivers higher availability through redundant batteries.

Adjustable voltage-transfer points

Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation.

Adjustable voltage sensitivity

Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

Audible alarms

Provides notification of changing utility power and UPS conditions

Battery replacement without tools

Allows quick, easy battery replacement.

Specifications

Features
Output power capacity10 kVA
Output power10000 W
Efficiency93%
Output voltage Total Harmonic Distortion (THD)6%
Noise level67 dB
Ports & interfaces
AC outlets quantity1 AC outlet(s)
Battery
Battery technologySealed Lead Acid (VRLA)
Battery recharge time2 h
Design
Form factorTower
Product colourBlack
Operational conditions
Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-15 - 40 °C
Operating relative humidity (H-H)0 - 95%
Storage relative humidity (H-H)0 - 95%
Operating altitude0 - 999.9 m
Non-operating altitude0 - 15000 m
Certificates
CertificationCE,EN/IEC 62040-3,FCC 15 A,ISO 14001,ISO 9001,UL 1778
Weight & dimensions
Width1200 mm
Depth1070 mm
Height2011 mm
Weight777.8 kg
Other features
Battery typeVRLA
InterfaceSmartSlot
Output connections3PH + N + G
Nominal output voltage120-208 V
Nominal input voltage208 V

Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
