APC BY SCHNEIDER ELECTRIC

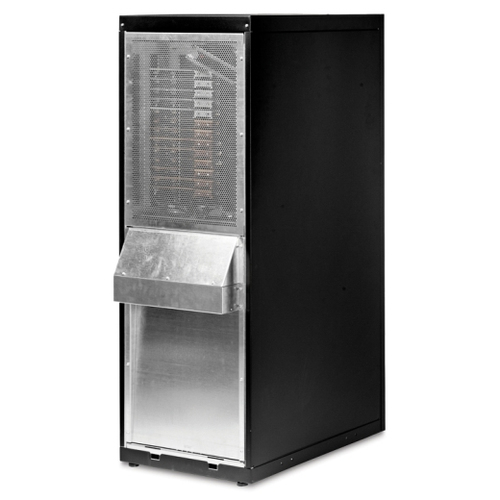

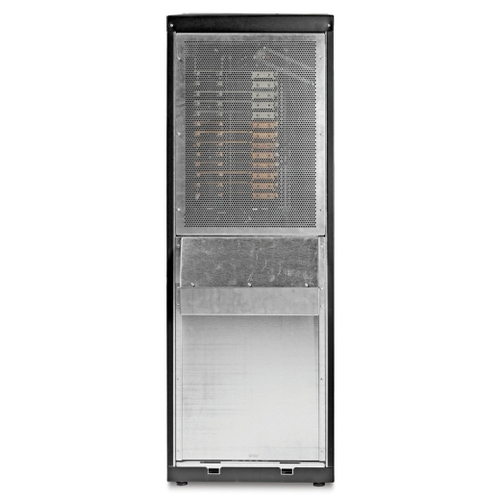

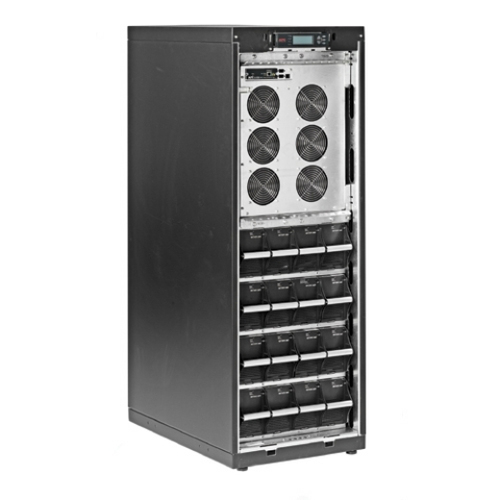

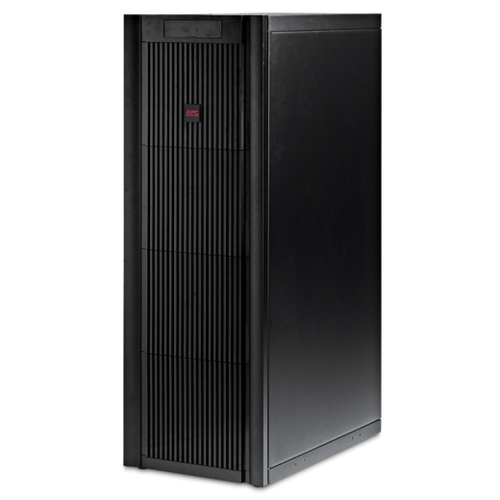

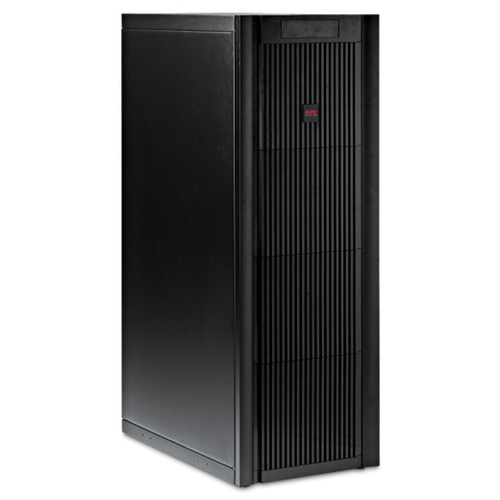

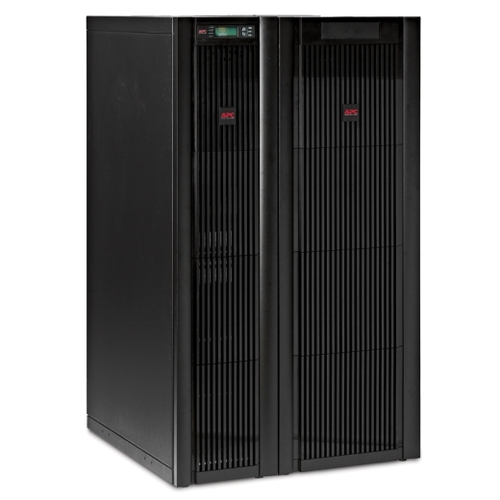

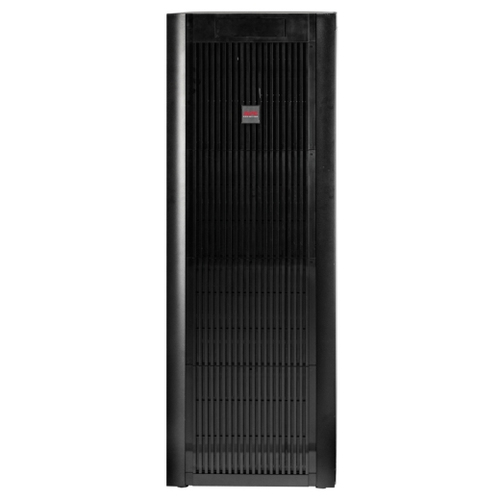

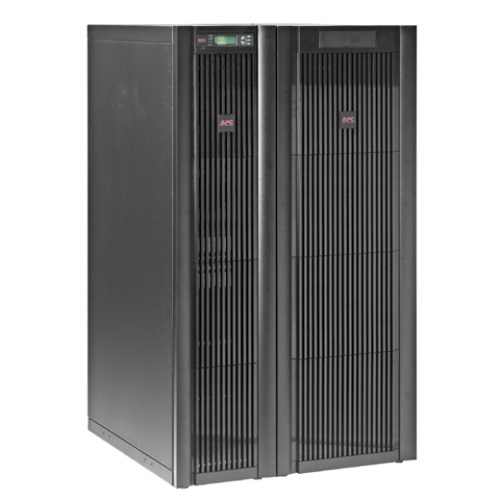

APC SUVTXR6B6S uninterruptible power supply (UPS) Standby (Offline)
Part number SUVTXR6B6S
APC SMART UPS VT EXTD RUN ENCL W/ 6 BATT MOD START-UP 5X8
- Standby (Offline)
- 16590 Ah
- Large tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SUVTXR6B6S
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
Multiple battery pack configuration
Connect up to 10 battery packs for extended runtime applications.
Advanced battery management included
Embedded monitoring at the cell, module, and cabinet level provides a clear picture of battery runtime and health, with the added benefits of predictable, consistent runtime performance and stable cell health.
Specifications
| UPS topology | Standby (Offline) |
|---|---|
| Input operation voltage (min) | 208 V |
| Input operation voltage (max) | 208 V |
| Output operation voltage (min) | 208 V |
| Output operation voltage (max) | 208 V |
| Battery capacity | 16590 Ah |
|---|---|
| Battery life (max) | 5 year(s) |
| Form factor | Large tower |
|---|---|
| Product colour | Black |
| Compatibility | C-tick, CE, ISO 14001, ISO 9001, RCM |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -50 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Compliance certificates | RoHS |
|---|
| Manual | Yes |
|---|
| Width | 523 mm |
|---|---|
| Depth | 838 mm |
| Height | 1499 mm |
| Weight | 766.8 kg |
| Package width | 650 mm |
|---|---|
| Package depth | 1062 mm |
| Package height | 1643 mm |
| Package weight | 797.7 kg |
| Harmonized System (HS) code | 85078000 |
|---|
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
