Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

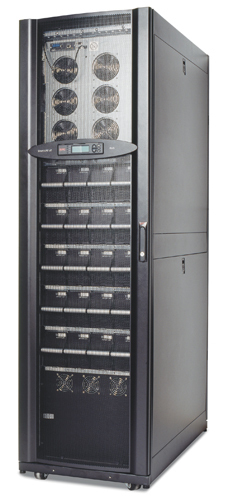

APC Smart-UPS VT 20kVA uninterruptible power supply (UPS) 16000 W 6 AC outlet(s)
Part number SUVTRT20KF5B5S
APC SMART-UPS VT RACK MOUNTED 20KVA 208V PTO
- 20 kVA 16000 W
- 6 AC outlet(s)
- Tower Black
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SUVTRT20KF5B5S
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Smart-UPS VT, 16 kW / 20 kVA, Input 208V 3PH / Output 120V, 208V, 208V 3PH , Interface Port SmartSlot , Extended runtime model
Includes: Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start up included, User Manual
Standard Lead Time: Usually Ships within 2 Weeks
Specifications
| Output power capacity | 20 kVA |
|---|---|
| Output power | 16000 W |
| Input operation voltage (min) | 177 V |
| Input operation voltage (max) | 239 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 220 V |
| Efficiency | 93% |
| Emergency Power Off (EPO) | Yes |
| Output voltage Total Harmonic Distortion (THD) | 5% |
| Noise level | 58 dB |
| Audible alarm(s) | Yes |
| AC outlets quantity | 6 AC outlet(s) |
|---|
| Battery recharge time | 3 h |
|---|
| Form factor | Tower |
|---|---|
| Product colour | Black |
| LED indicators | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -50 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Certification | cUL, ISO 14001, ISO 9001, UL 1778. |
|---|
| Width | 600 mm |
|---|---|
| Depth | 1075 mm |
| Height | 1995 mm |
| Weight | 1040.9 kg |
| Package weight | 1075.9 kg |
|---|
| Battery type | VRLA |
|---|---|
| Dimensions (WxDxH) | 600 x 1075 x 1995 mm |
| Nominal output voltage | 120-208 V |
| Nominal input voltage | 208 V |
| Package dimensions (WxDxH) | 600 x 1075 x 1995 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
