Products › Power & Rack Equipment
APC BY SCHNEIDER ELECTRIC

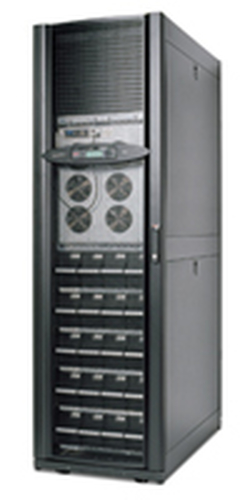

APC SUVTR40KH5B5S uninterruptible power supply (UPS) 40 kVA 32000 W
Part number SUVTR40KH5B5S
SMART UPS VT RACK MOUNTED 40KVA 400V WITH 5 BATT MOD WITH PDU
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SUVTR40KH5B5S
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Smart-UPS VT, 32 kW / 40 kVA,Input 400V 3PH / Output 230V, 400V 3PH, Extended runtime model
Includes: CD with software, Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start up included, User Manual
Standard Lead Time: Usually Ships within 2 Weeks
Specifications
| Output power capacity | 40 kVA |
|---|---|
| Output power | 32000 W |
| Maximum current | 55 A |
| Emergency Power Off (EPO) | Yes |
| Noise level | 67 dB |
| Battery recharge time | 3 h |
|---|---|
| Replacement battery cartridge | 5 |
| Product colour | Black |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -50 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Weight | 749 kg |
|---|
| Package weight | 873.2 kg |
|---|
| Harmonized System (HS) code | 85078000 |
|---|
| Battery type | VRLA |
|---|---|
| Output connections | 1 x Hard Wire 5-wire (3PH + N + G) 12 x IEC 320 C19 |
| Input connection type | Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 600 x 1075 x 1995 mm |
| Output voltage note | 380: 400 / 415 V |
| Nominal input voltage | 400 V |
| Package dimensions (WxDxH) | 600 x 1075 x 1995 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
