APC BY SCHNEIDER ELECTRIC

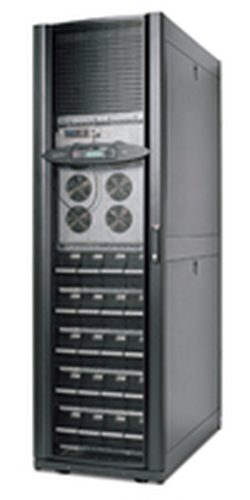

APC Smart-UPS VT rack mounted 30kVA 400V uninterruptible power supply (UPS) 24000 W
Part number SUVTR30KH3B5S
SMART UPS VT RM 30KVA 400V WITH 3 BATT MOD EXP TO 5 WITH PDU
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SUVTR30KH3B5S
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Smart-UPS VT, 30000VA/24000W, Input 400V 3PH/Output 230V, 400V 3PH, Extended runtime model
Includes: CD with software, Installation Guide, Power modules ship installed, Smart UPS signalling RS-232 cable, Start up included, User Manual, Web/SNMP Management Card
Standard Lead Time: Usually Ships within 2 Weeks
Specifications
| Output power capacity | 30 kVA |
|---|---|
| Output power | 24000 W |
| Emergency Power Off (EPO) | Yes |
| Noise level | 67 dB |
| Typical backup time at full load | 5.5 min |
|---|---|
| Typical backup time at half load | 18.3 min |
| Battery recharge time | 3 h |
| Product colour | Black |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -15 - 45 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Storage relative humidity (H-H) | 0 - 95% |
| Certification | C-tick,CE,EN 50091-2,EN/IEC 62040-3,IEC 61000-3-2,IEC 61000-3-3,ISO 14001,ISO 9001,VFI-SS-112 |
|---|
| Weight | 624 kg |
|---|
| Package weight | 691.4 kg |
|---|
| Harmonized System (HS) code | 85078000 |
|---|
| I/O ports | 12 x IEC 320 C19 |
|---|---|
| Battery type | VRLA |
| Dimensions (WxDxH) | 600 x 1075 x 1995 mm |
| Nominal output voltage | 400 V |
| Nominal input voltage | 400 V |
| Package dimensions (WxDxH) | 600 x 1075 x 1995 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
