APC BY SCHNEIDER ELECTRIC

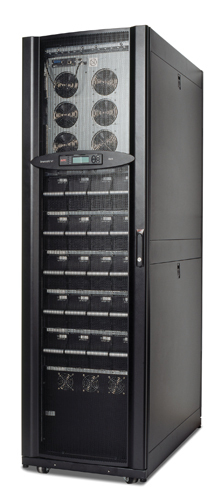

APC Smart-UPS VT 30kVA uninterruptible power supply (UPS) 24000 W
Part number SUVTR30KG5B5S
SMART-UPS VT RACK MOUNTED 30KVA 480V IN 208V OUT WITH 5 BATT MOD
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SUVTR30KG5B5S
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
-Includes: CD with software, Installation guide, Power modules ship installed, Smart UPS signalling RS-232 cable, Start up included, User Manual, Web/SNMP Management Card.
-Field-replaceable power distribution panel.
-Locking cabinet.
-Multiple cable-entry points.
-Resettable circuit breakers.
Specifications
| Output power capacity | 30 kVA |
|---|---|
| Output power | 24000 W |
| Input frequency | 40/70 Hz |
| Emergency Power Off (EPO) | Yes |
| Noise level | 58 dB |
| Audible alarm(s) | Yes |
| Typical backup time at full load | 13.7 min |
|---|---|
| Typical backup time at half load | 36.5 min |
| Product colour | Black |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -50 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999 m |
| Non-operating altitude | 0 - 15000 m |
| Certification | cUL,ISO 14001,ISO 9001,UL 1778 |
|---|
| Weight | 1040.9 kg |
|---|
| Battery type | VRLA |
|---|---|
| Output connections | (1) Hard Wire 5-wire (3PH + N + G) (5) NEMA L21-20 |
| Input connection type | Hard Wire 4-wire (3PH + G) |
| Dimensions (WxDxH) | 600 x 1075 x 1995 mm |
| Nominal input voltage | 480 V |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
