Products › Power & Rack Equipment

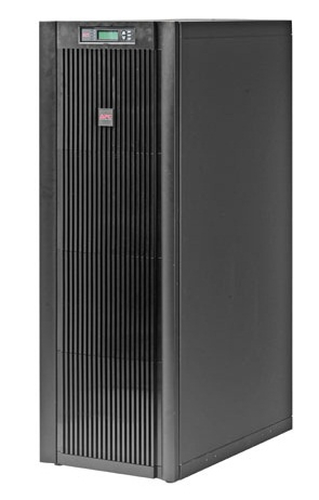

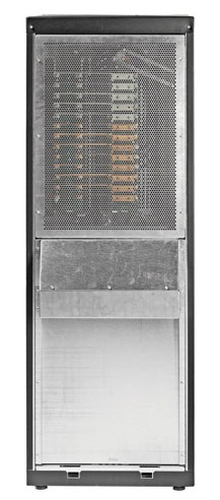

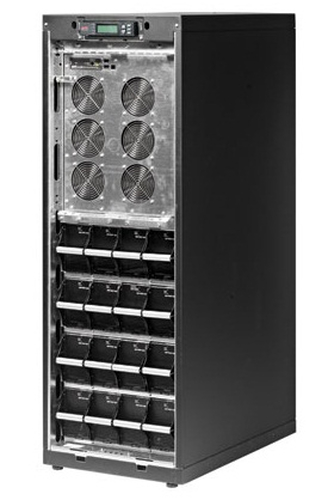

APC SUVTP20KF3B4S uninterruptible power supply (UPS) 20 kVA 16000 W
Part number SUVTP20KF3B4S
SMART-UPS VT 20KVA/208V W/3BATT MOD EXP TO 4 START-UP 8X5 PTO
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SUVTP20KF3B4S
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Smart-UPS VT 20kVA 208V w/3 Batt Mod Exp to 4, Start-Up 5X8, Int Maint Bypass, Parallel Capable
Parallel-capacity capable:
Increases total power capacity by using multiple UPSs simultaneously.
Parallel-redundant capable:
Power the connected equipment with multiple UPSs to increase system redundancy.
Includes:
Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Smart UPS signalling RS-232 cable, Start up included, User Manual
Specifications
| Output power capacity | 20 kVA |
|---|---|
| Output power | 16000 W |
| Input frequency | 40/70 Hz |
| Emergency Power Off (EPO) | Yes |
| Battery recharge time | 5 h |
|---|
| Product colour | Black |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -50 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight | 536.8 kg |
|---|
| Battery type | VRLA |
|---|---|
| Interface | DB-9 RS-232, Smart-Slot |
| Output connections | 3PH + N + G Screw Terminals |
| Input connection type | 3PH + N + G |
| Dimensions (WxDxH) | 523 x 813 x 1499 mm |
| Output voltage note | 208/220 |
| Nominal input voltage | 208 V |
| Package dimensions (WxDxH) | 650 x 1062 x 1643 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
