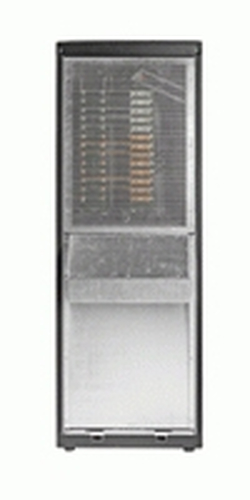

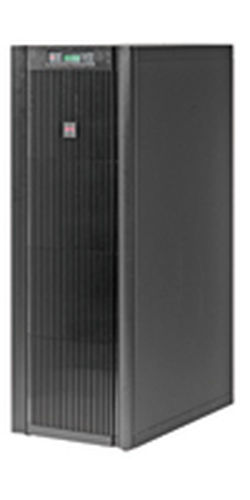

APC Smart-UPS VT uninterruptible power supply (UPS) 10 kVA 8000 W
Part number SUVTP10KH2B4S
SMART-UPS VT 10KVA TOWER 304-477V HARDWIRED
- Manufacturer
- APC BY SCHNEIDER ELECTRIC
- Part number
- SUVTP10KH2B4S
- Condition
- New
- Category
- Power & Rack Equipment › Power Equipment
- 1GPA category
- Hardware
Overview
APC Smart-UPS VT, 8000 Watts / 10 kVA,Input 400V 3PH / Output 400V 3PH, Interface Port DB-9 RS-232, Smart-Slot, Extended runtime model
Includes: Battery modules ship installed, Bolt down brackets, CD with software, Installation guide, Network Management Card, Power modules ship installed, Start up included, User Manual
Standard Lead Time: Usually Ships within 2 Weeks
Specifications
| Output power capacity | 10 kVA |
|---|---|
| Output power | 8000 W |
| Maximum current | 14 A |
| Emergency Power Off (EPO) | Yes |
| Noise level | 64 dB |
| Battery recharge time | 5 h |
|---|---|
| Replacement battery cartridge | 2 |
| Product colour | Black |
|---|
| Operating temperature (T-T) | 0 - 40 °C |
|---|---|
| Storage temperature (T-T) | -50 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 999.9 m |
| Non-operating altitude | 0 - 15000 m |
| Weight | 415 kg |
|---|
| Package weight | 445.9 kg |
|---|
| Harmonized System (HS) code | 85078000 |
|---|
| Battery type | VRLA |
|---|---|
| Output connections | 1 x Hard Wire 4-wire (3PH + G) 1 x Hard Wire 5-wire (3PH + N + G) 1 x Screw Terminals |
| Input connection type | Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) | 559 x 813 x 1499 mm |
| Nominal output voltage | 400 V |
| Output voltage note | 380: 400 / 415 V |
| Nominal input voltage | 400 V |
| Package dimensions (WxDxH) | 650 x 1062 x 1643 mm |
Product photos and overview provided by the manufacturer through Icecat. Confirm specifications with your rep before ordering.
