APC BY SCHNEIDER ELECTRIC

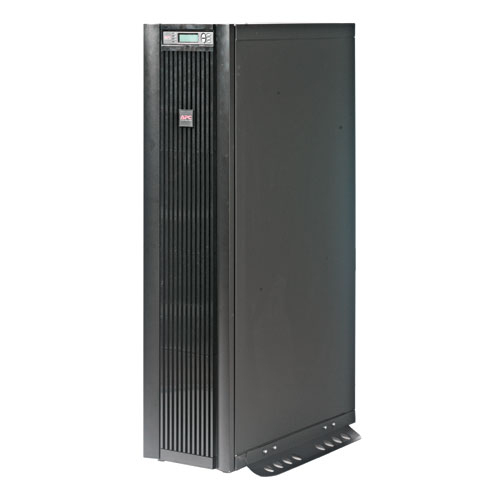

APC Smart-UPS VT 10kVA uninterruptible power supply (UPS) 8000 W 1 AC outlet(s)

Part number SUVTP10KF2B4S

SMART UPS VT 10KVA 208V W/2 BATT MOD EXP TO 4 START UP 5X8

Overview

Parallel-capacity capable

Increases total power capacity by using multiple UPSs simultaneously.

Parallel-redundant capable

Power the connected equipment with multiple UPSs to increase system redundancy

Dual mains input

Increases availability by allowing the UPS to be connected to two separate power sources.

Scalable runtime

Allows additional run time to be quickly added as needed.

Hot-swappable batteries

Ensures clean, uninterrupted power to protected equipment while batteries are being replaced

Generator compatible

Ensures clean, uninterrupted power to protected equipment when generator power is used.

Automatic internal bypass

Supplies utility power to the connected loads in the event of a UPS overload condition or fault.

Battery modules connected in parallel

Delivers higher availability through redundant batteries.

Ports & interfaces
AC outlets quantity	1 AC outlet(s)
Serial ports quantity	1

Battery
Battery technology	Sealed Lead Acid (VRLA)
Battery recharge time	5 h

Design
Form factor	Tower
Product colour	Black

Operational conditions
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-50 - 40 °C
Operating relative humidity (H-H)	0 - 95%
Storage relative humidity (H-H)	0 - 95%
Operating altitude	0 - 999.9 m
Non-operating altitude	0 - 15000 m

Packaging data
Package weight	537.7 kg

Other features
Interface	DB-9 RS-232, SmartSlot
Output connections	1x Hard Wire 4-wire (3PH + G) 1x Hard Wire 5-wire (3PH + N + G)
Input connection type	3PH + N + G
Nominal output voltage	120-208 V
Nominal input voltage	208 V
Package dimensions (WxDxH)	650 x 1062 x 1643 mm
